7. Flush mounting
7.
Connect the mains adapter and the
sun sensor.
8.
Lay the connecting cable safely.
Feed the cables
through the
grooving.
The ridge should face
upwards with both
plugs.
Power supply
Sun sensor

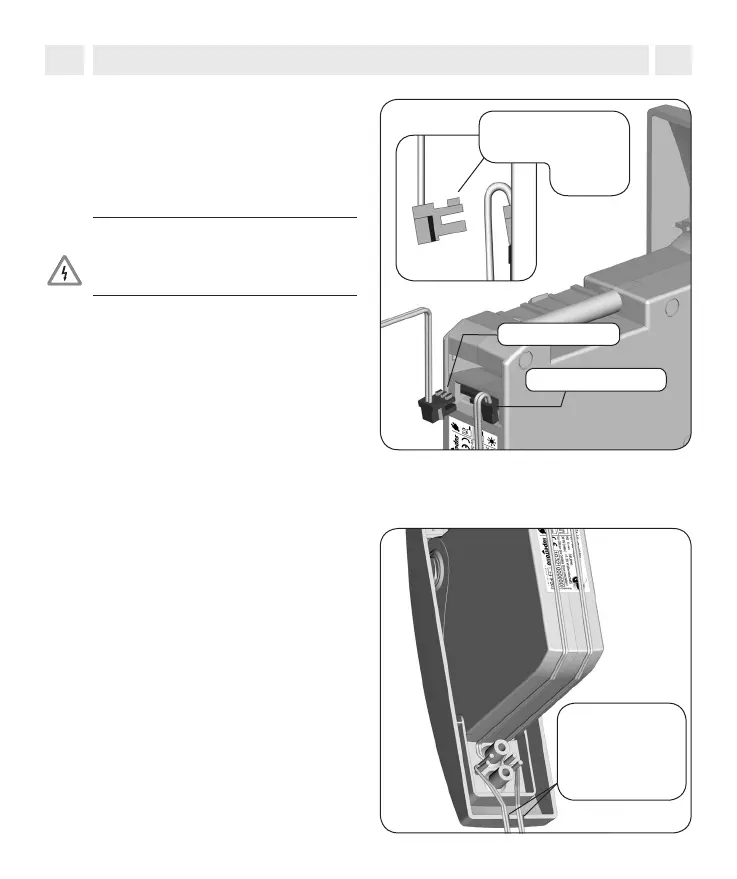

Now, connect the mains adapter and,
if desired, the sun sensor on the back
of the belt winder.
CAUTION
Connecting the plugs in the wrong
way may destroy the belt winder.
◆ Plug both plugs true to side
into the opening. Observe the
connection symbols on the
type plate.
◆ Never insert the plugs onto the
PCB with force.
Lay the connecting cables, as shown in
the picture, on the back of the device
and feed both cables through the
grooving in the mounting frame.
