Chapter 3 Installation
www.supmea.com
(4) The electromagnetic flowmeter cannot be installed on the suction side of
the pump.

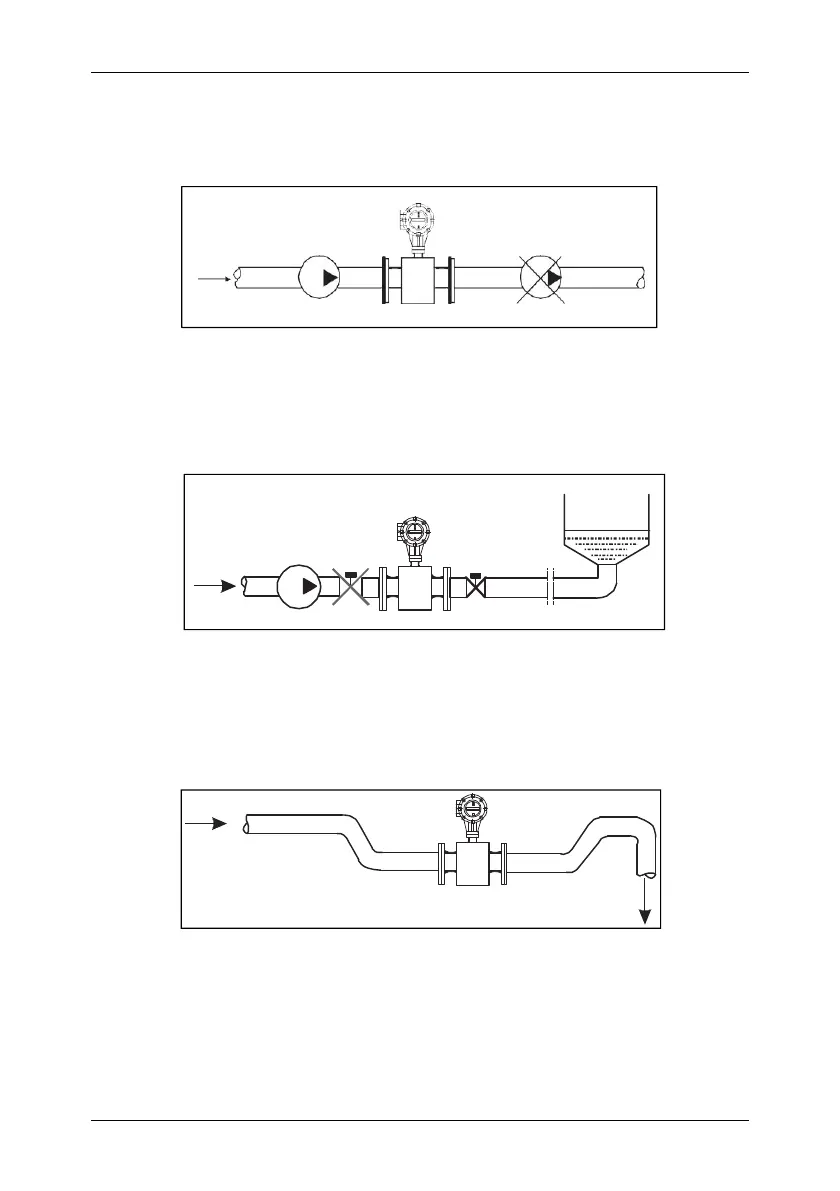

Figure 13
(5) For long pipelines, control valves are generally installed on the
downstream of the electromagnetic flowmeter.
Figure 14
(6) For pipes with open discharges, the electromagnetic flowmeter shall be
installed at the bottom section (lower part of the pipe).
Figure 15
(7) For places where fall head of pipes is over 5 m, the air valve shall be
installed on the downstream of the electromagnetic flowmeter.
