Chapter 4 Electrical connection
www.supmea.com
Warning!
Please strictly observe local occupational health and safety regulations.
Only those who have got properly trained are allowed to operate on the
electrical equipment.
(1) Compact type (caliber: 65, refer to type selection manual for specific
parameters)

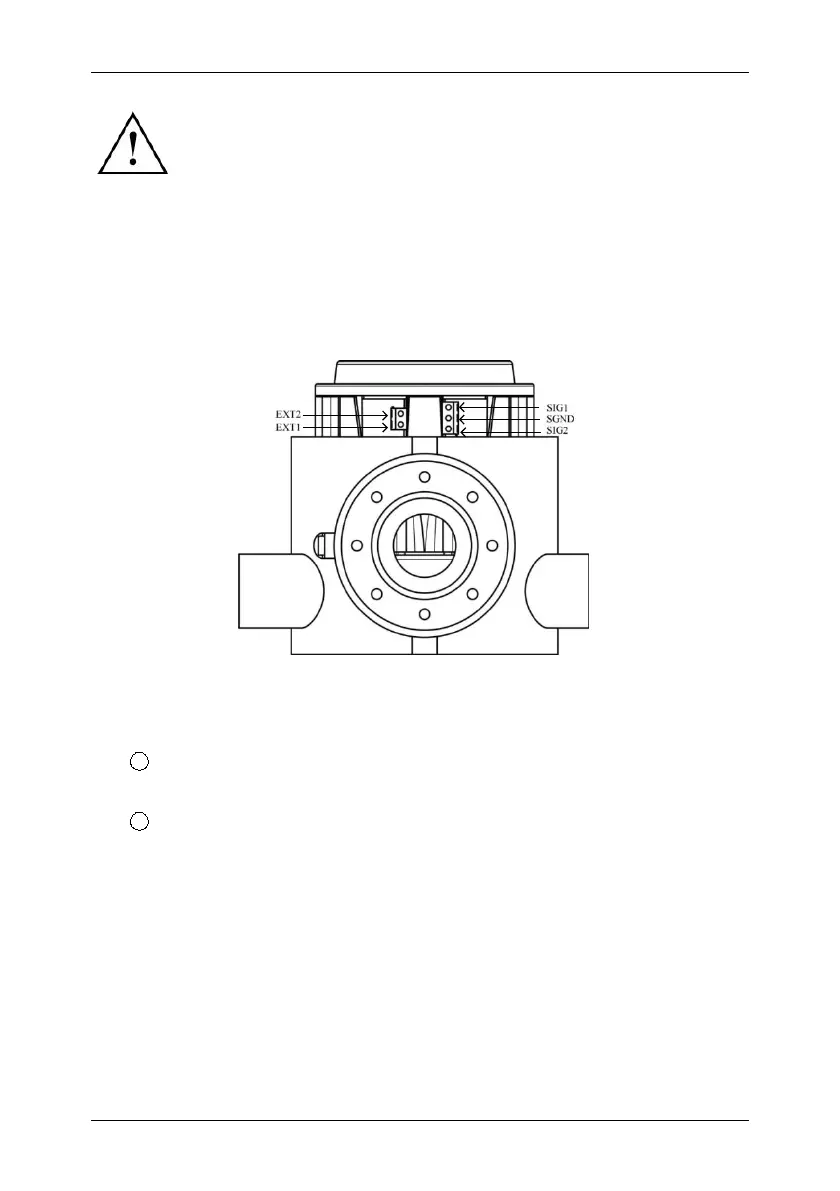

Figure 20
Connection description
1 Excitation output: EXT1--Sensor excitation coil positive terminal
EXT1--Sensor excitation coil negative terminal
2 Signal output: SIG1-The positive electrode sensor signal
SIG2--The negative electrode sensor signal
SGND--Signal ground
