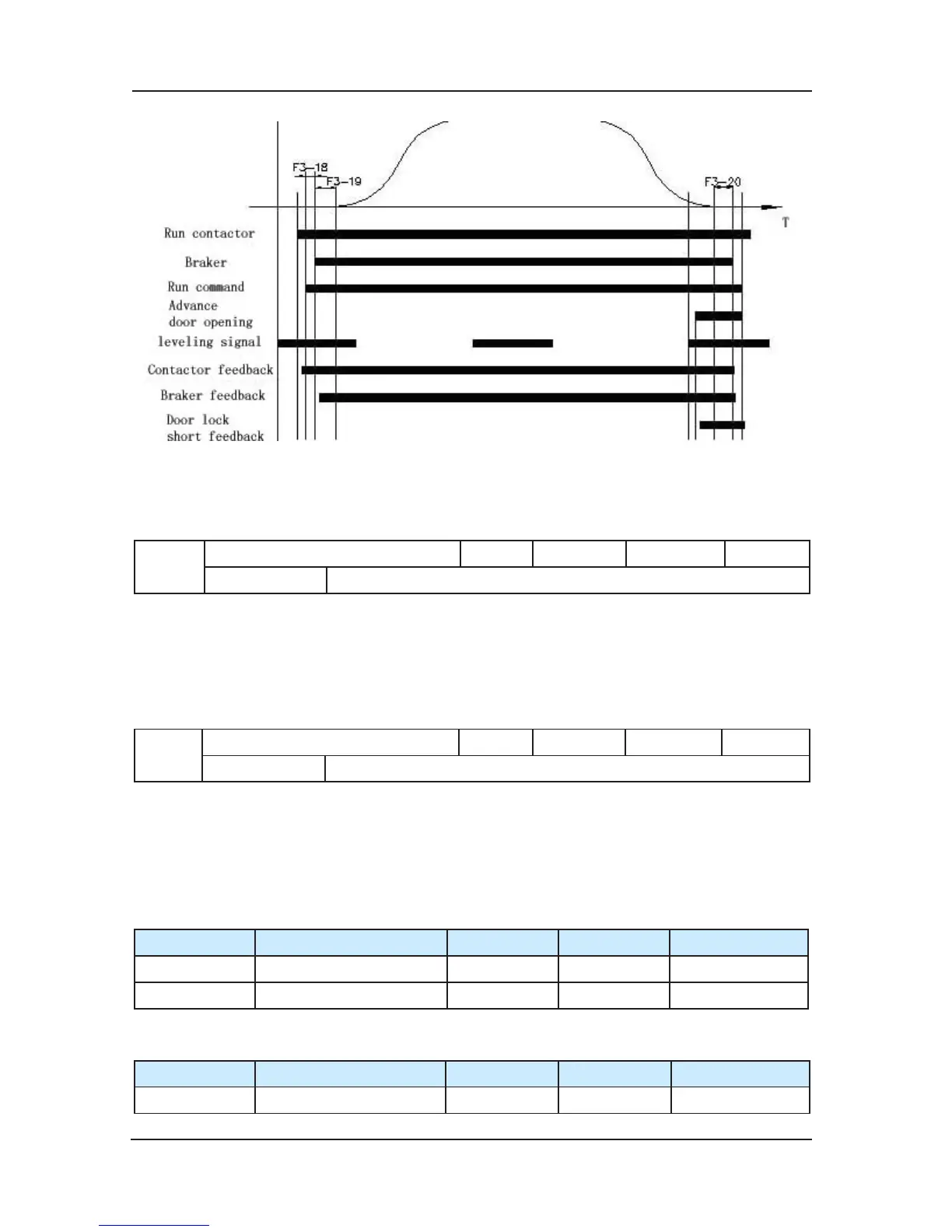

Fig 6-5 Running time sequence chart
6.5 F4 Group Position Parameters
F4-00
Leveling adjusting Default 30mm Min. Unit 1mm
Setting Range 0～60mm
It ensures the landing accuracy of lift. If the position of leveling inductor isn’t in the middle
of inductor plate when the lift stops, adjust this parameter. If lift is over leveling when stops,
reduce the value of F4-00.If lift is under leveling when stops, increase it.NICE3000 integrates
advanced arithmetic of distance control. A
nd it use multi-measures to confirm stability of direct
parking. Generally users need not adjust it.
F4-01
Current oor Default 1 Min. Unit 1
Setting Range The lowest oor（F6-01）～The highest oor（F6-00）
It can show the current oor of car.
The system can auto-motion recompose this parameter when lift is running. And the system
can self-motion revise this parameter at leveling position after touching switch of up or down
forced reducer. When lift is in non-bottom or non-top floor, users can hand recompose
this
parameter. But this parameter must accord with the current oor.
Function code Name Default Min. Unit Setting Range
F4-02 High bit of current oor 1 1 0～65535
F4-03 Low bit of current oor 34464 1 0～65535
It can show the number of pulse that the current oor relative to the lowest leveling oor.
Function code Name Default Min. Unit Setting Range
F4-04 High bit of leveling plate 0 1 0～65535
