NICE3000 User Manual Structure of the control system and the component introduction
53
Function introduction:
LCD display, blue background white letters.
Floor address setting method:
Button pressing saving, oor saving button on the board.
GND
MP 2 4
1
3
4
2
MOD +
MOD -

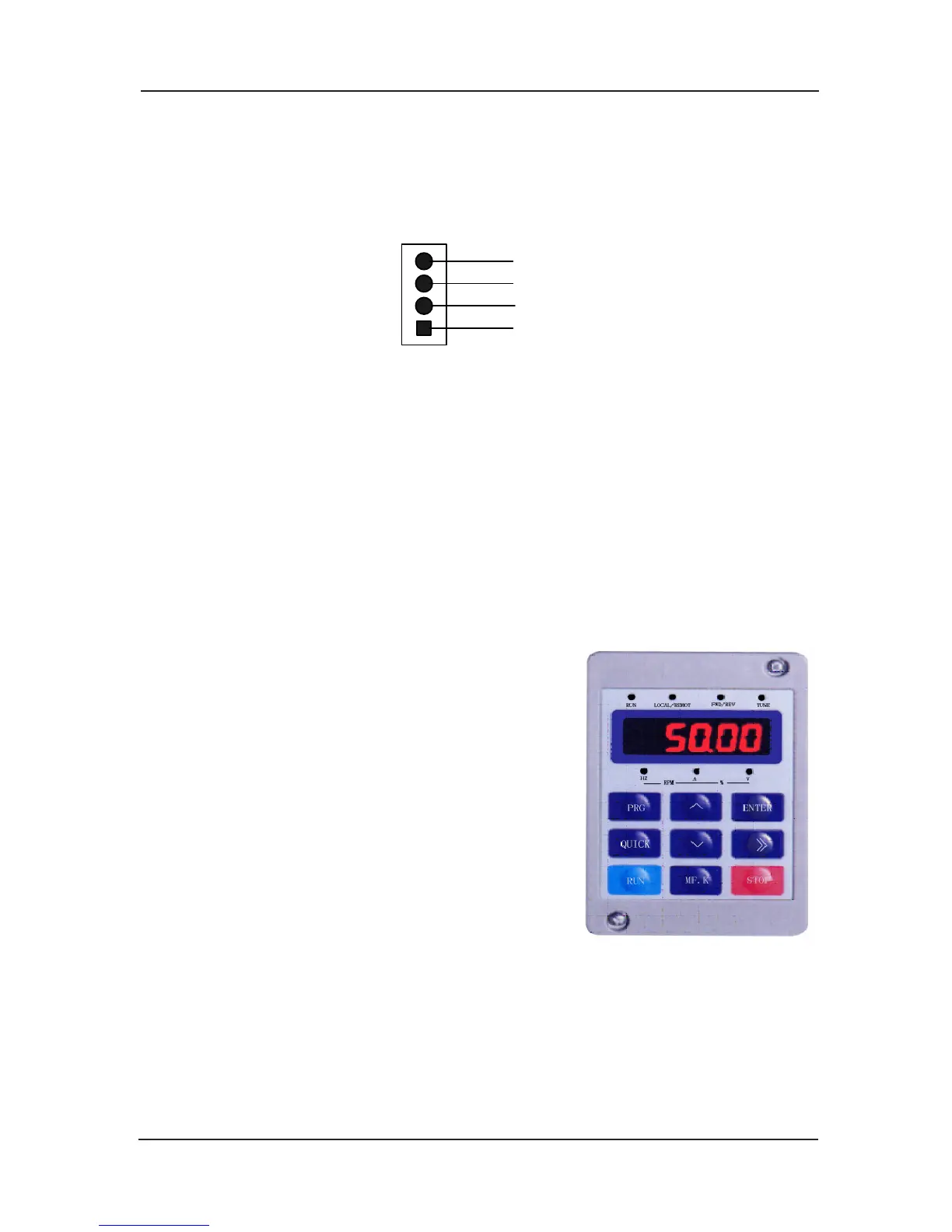

Fig 3-21 power supply communication interface CN2denition
3.4 Sort of adjusting tools for NICE 3000
Adjusting tools of NICE3000 include four kinds: operation control and information display panel
(operation panel for short), small keyboard on MCB, upper monitor motoring software of NICE
3000, and PDA monitoring software. This chapter will give the instruction focusing on Operation
Panel and Smal
l Keyboard in common use.
3.4.1 Operation Panel Instruction
Through operation panel, user can modify the parameter, monitor the working state, and control
running (start and stop) when operation panel is working.
3.4.2 The Appearance and Function Section of Operation Panel
The appearance as Fig 3-22:
Instruction of function indicator lights:1)
RUN LED on indicates the controller is working.
LOCAL/REMOT Reserved.
FWD/REV Indicator of up and down. LED on indicates
the elevator goes down; LED off, up.
TUNE/TC Indicator of tuning. LED on, tuning.
Digital display area:2)
5-bit LED display, show the parameters of move
speed, bus voltage, etc.
Units indicator instruction:
3)
The units indicator indicates the unit of the gure of the digital display area. When two LEDs
are on, it indicates the unit bellow in the middle of them.
Hz: Frequency unit
A: Current unit
V: Voltage unit
RPM: Rotation speed unit
%: Percentage
Fig 3-22
