Chapter 2 Product information
2.1 Name Designation Rules and Nameplate
2.1.1 Applies to Asynchronous/ Synchronous integrated motor:

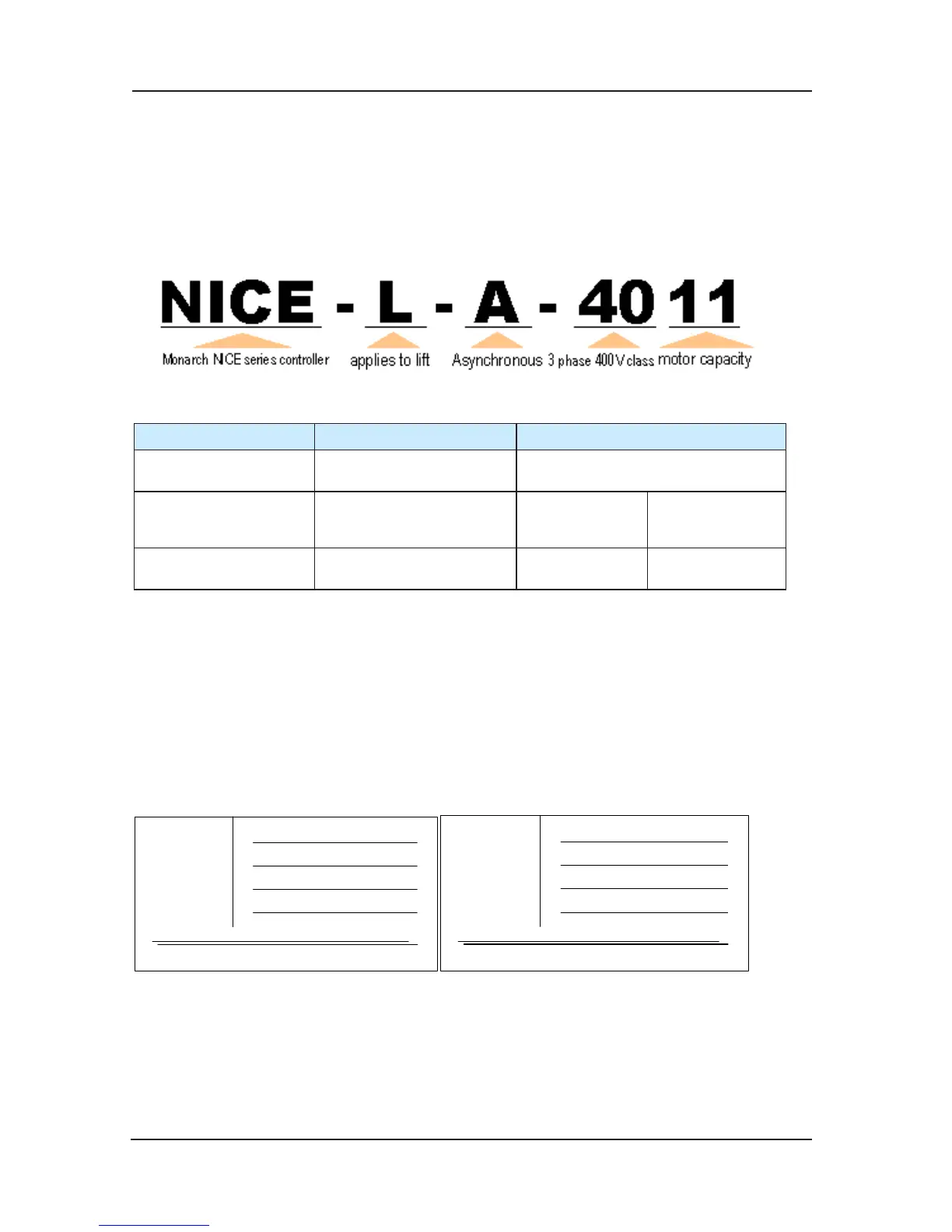

Name designation rules:
Controller model A B
Applicable to traction
motor model
Asynchronous motor Synchronous motor
Applicable to encoder
motor model
Push-pull, open-
circuit collector output
incremental encoder
UVW SIN/COS
Applicable to PG card No need of PG card
MCTC-PG-B
MCTC-PG-D
MCTC-PG-C
MCTC-PG-E
NICE-L-A-40XX is used in asynchronous traction motor control, and is applicable to push-
pull output and open-circuit output incrementa
l encoder. The main control panel has push-pull
encoder itself, so it doesn’t need PG switch card. NICE-L-B-40XX is used in synchronous
traction motor control, and is suitable for UVW encoder and SIN/COS encoder.
Note: NICE-L-B-40XX is the substitution of NICE-L-IP-40XX and NICE-L-IP-40XX-SC, and has
upgraded on the basis of them.
2.1.2 Asynchronous/ Synchronous integrated controller nameplate:
Asyn
chronous motor nameplate: Synchronous motor nameplate:
POWER
OUTPUT
INPUT
MODLE
S/N
Suzhou MONARCH Control Technology Co.,Ltd.
NICE-L-A-4015
15kW
3PH AC380V 35A 50Hz/60Hz
3PH AC380V 32A 0～90Hz
POWER
OUTPUT
INPUT
MODLE
S/N
Suzhou MONARCH Control Technology Co.,Ltd.
NICE-L-IP -4015
15kW
3PH AC380V 35A 50Hz/60Hz
3PH AC380V 32A 0～90Hz
