NICE3000 User Manual Structure of the control system and the component introduction
67
3.8 IE module Applied to the elevator faults conditions the MCTC-IE-A
MCTC-IE-A –GSM message module is applied to the elevator faults condition, the MCTC-IE-A
board collects the error information and sends a prompt message to the xed cell-phone to
remind the elevator maintaining technician about the error condition, and ensure the prompt
maintaining of the elevator.
Measurement diagram
1)

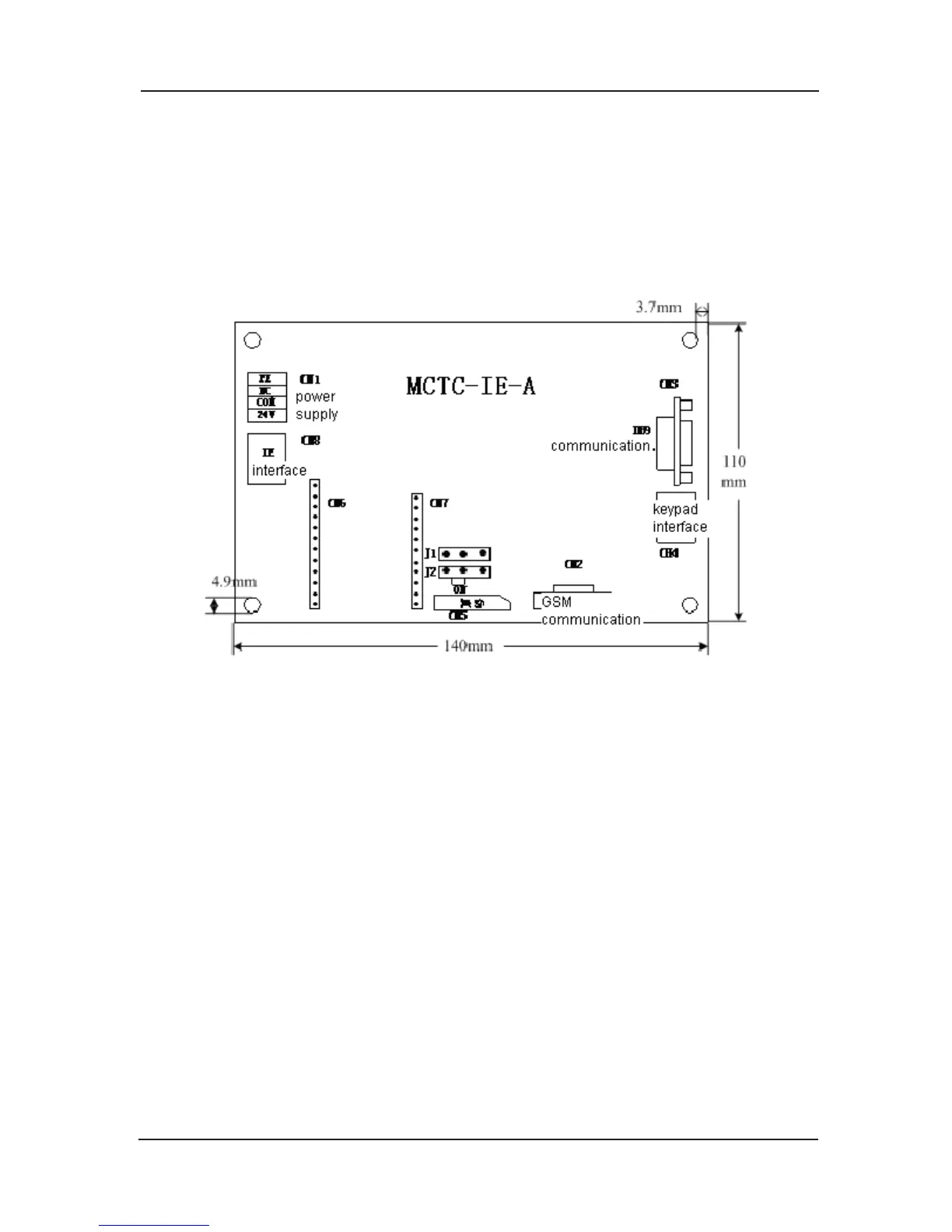

Fig 3-38 Mounting measurement of MCTC-IE-A
Remark: GSM module is needed when mounting the MCTC-IE-Aso the total height is 35mm.
Using method 2)
The function of MCTC-IE-A-GSM is when the elevator error occurred or switch from one error
to another one, the MCTC-IE-A inquire error information to main board by communication, then
send the error information message to the cell-phone after the IE board
collected the error
information.
Cell-phone number settinga)
The message that users cell-phone received can not be automatically saved, and user
can save the fault message manually if necessary. The cell-phone number can be set by the
keypad inputting, and the number data will be stored on the 24LCO8 chip.
Storing method
F0-00cell-phone number 14 bit
F0-01cell-phone number 58 bit
F0-02cell-p
hone number 911 bitlast bit displayEneed no setting
For instance: if a phone number is 13912614479the parameter settings are as following
