Chapter 3 Structure of the control system and the
component introduction
3.1 Using Introduction of CTB
Car top board MCTC-CTB-A is the main control board of NICE 3000’s car . It is made up of
eight digital signal input terminals, one analog voltage signal input terminal, eight relay N.O.
output terminal, one N.C. relay output terminal, two digital signal input and output terminals
which can communi
cate with the command board CCB, CAN communication terminal with
MCB, communication terminal with car display board Modbus, and RS232 communication
mode which supports the communication with the computer. It’s of great function and is the
important transferring station of signal collection and signal outputting control in NICE 3000
integrated controller.
3.1.1 Appearance and size
CN4 CN5
CN2 CN1 CN6 CN3
C
N1
0
C
N7
C
N8
S1
S2
162
152
125
115
CAN
RESET

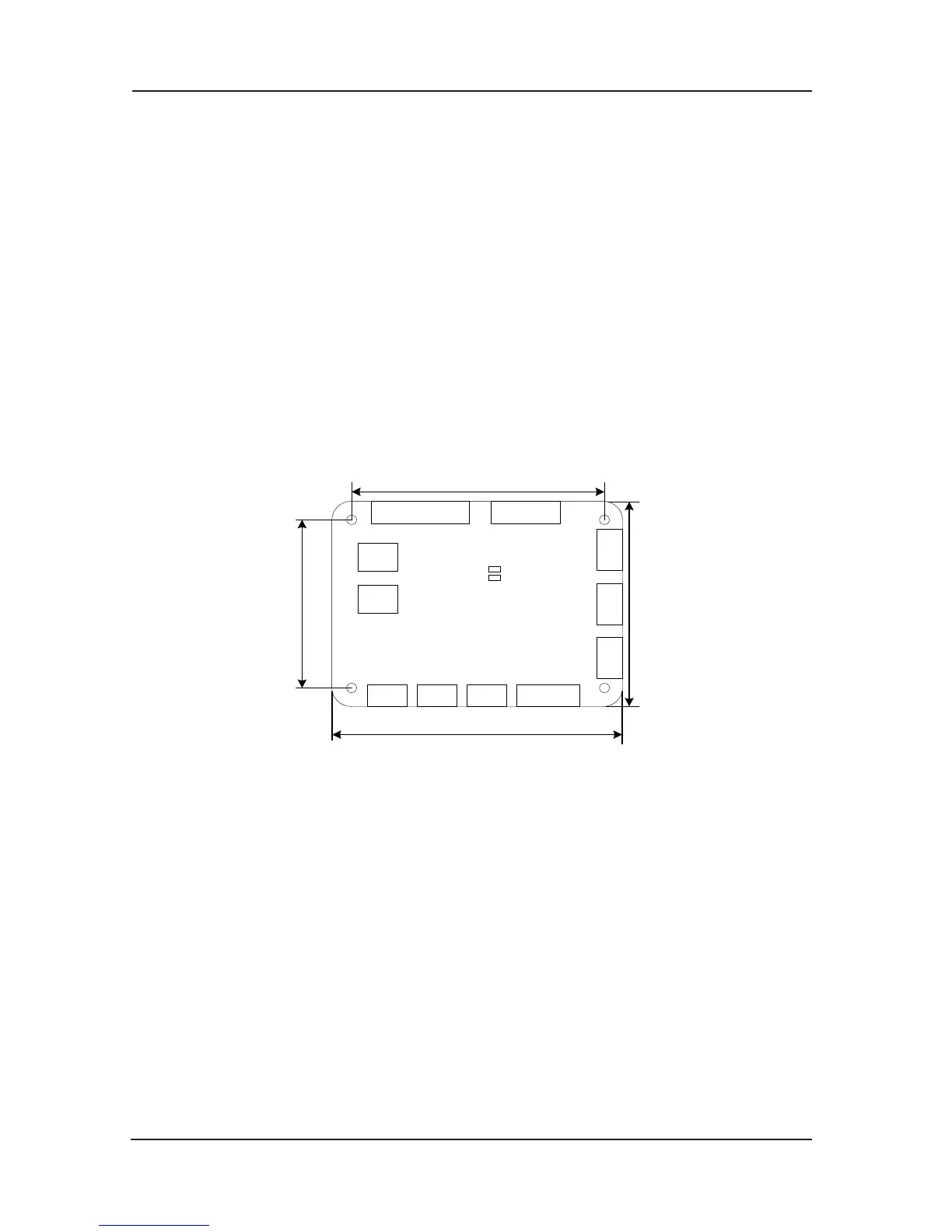

Fig 3-1 Installing size of CTB
3.1.2 Introduction of installation and using
Installing method1)
Install it after the complete power failure of the lift;a)
Aim at four installing pores of car, and then use screwdriver to hold;b)
Link terminals and screw down.c)
Definition of terminals is shown in Chart 9-2: 2)
