NICE3000 User Manual System typical application and adjustment
161
When F8-01=1 viz. Weighing preset torque compensation is used, F8-03 and F8-04 both

affect lift starting comfort. If inappropriately adjust these parameters, it can bring shake
when starting. The setting value relates with the weighing transducers installation
position, and the setting value is usually between 0.1~0.4.
Leveling accuracy adjusting. When the mechanism adjustment completed, you can

micro-adjust F4-00 to adjust the stopping accuracy. When lift stops, if its over leveling,
reduce F4-00 setting; if under leveling, increase F4-00.
7.2 Production Use
7.2.1 Main control board commendatory drawing and relevant parameters setting
CN9
CN3
CN7
CN6
X01 up levelling
X03 down levelling
X02 door zone
X04 safety circuit feedback
X05 lock circuit feedback
X06 run output feedback
X07 brake output feedback
X08 lock output feedback
X09 inspection signal
X10
inspection up
X11 inspection down
X12 up end signal
X13 down end signal
X14 NO. 1 up force reducer
X15 NO. 1 down force reduce
NO. 2 up force reducer
X17 NO. 2 down force reduce
X24 spare wheel
X18 spare wheel
15V
PGM
PGA
PGB
0 V
P E
AI(analog sampling)
M
PG
PG
24V
V
~
24V
COM
MOD+
MOD-
CAN+
CAN-
Run contact loop resource
brake contact loop r esour ce suggest to in
series with safety cir cuit and lock circui t
LB
2
LB
1
V
~
JY
X
PO
C
V
~
V
Power supply for main
control board
Hall call communication
terminal
Cartop & group control
communication terminal
CN1
MCTC-MCB-A
inspecti on 1 inspection 2
Inspecti on
1 com
Up
Down
Up
Down
Y1
Y2
M1
M2
Y3
M3
Y4
M4
Y5
M5
Y6
M6
advance door opening contact
loop resource

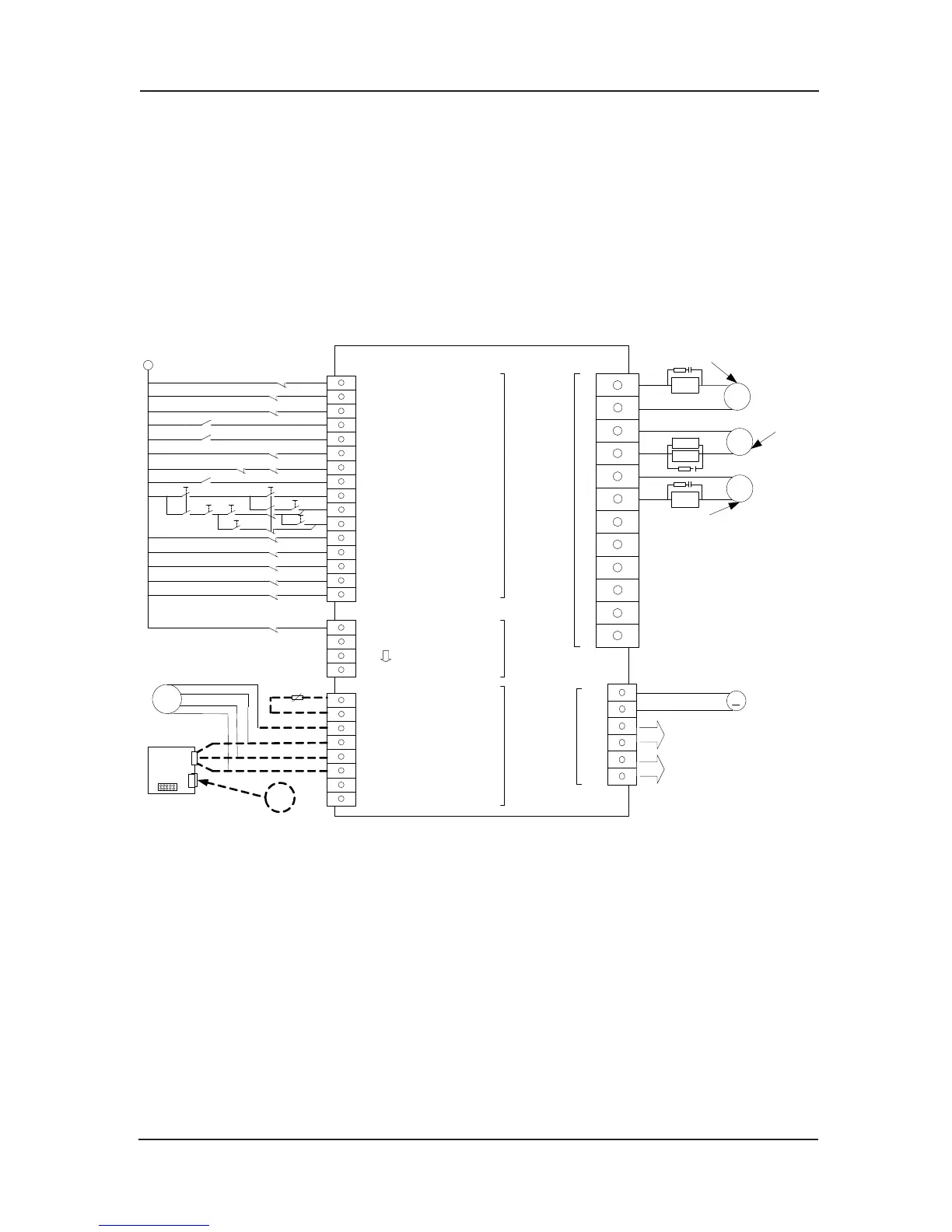

Fig 7-2 Main control board commendatory wiring
Adopt the connecting mode of upward drawing. The input and output terminal setting of the F5
group is default parameters.
