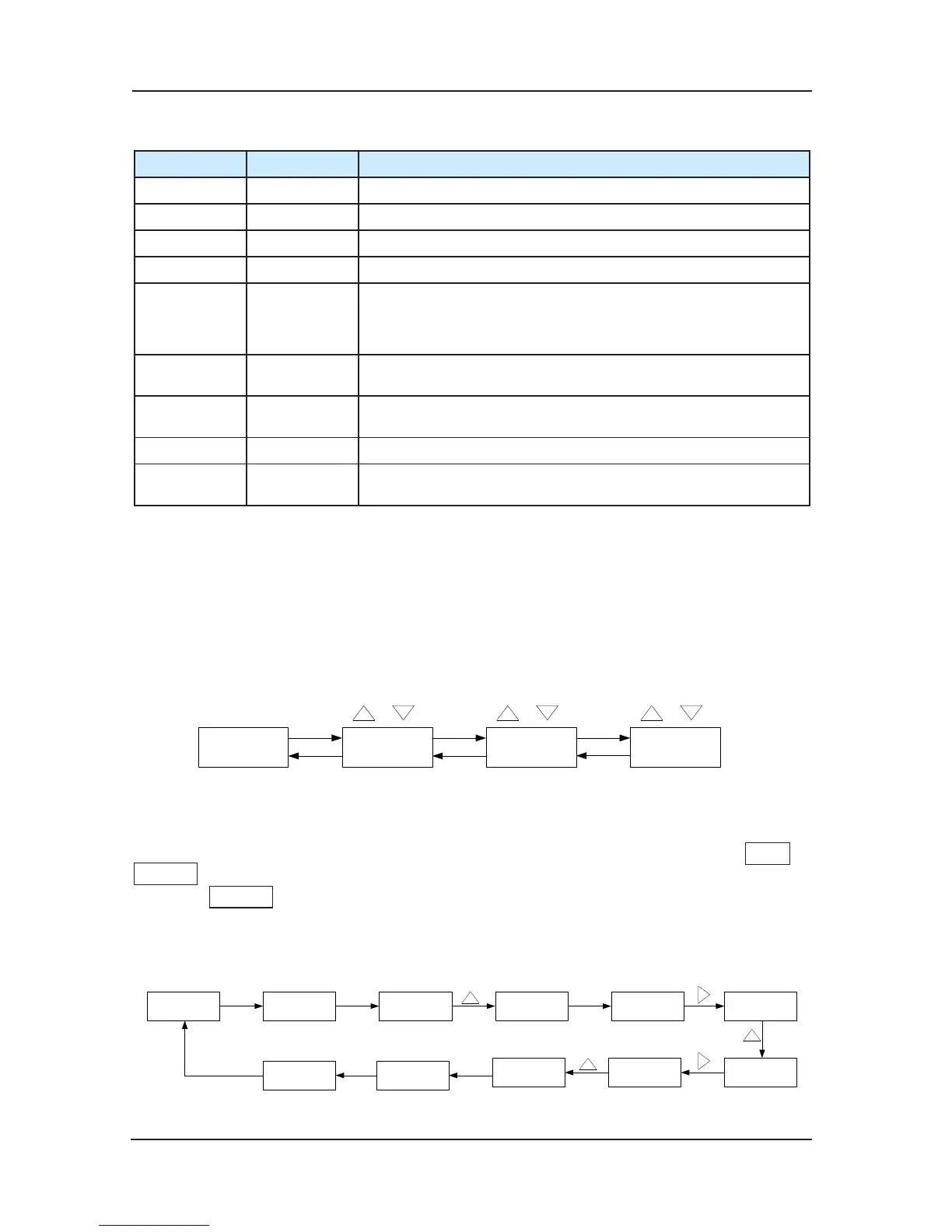

Structure of the control system and the component introduction NICE3000 User Manual
54
Instruction of buttons on the operation panel keyboard:4)
key name function
PRG Program key Enter or exit the primary menu and delete quick menu
ENTER Conrm Enter the menu level by level and conrm setting parameter
Up Increase of date and function code
Down Decrease of date and function code
>> Shift
It can select the displaying parameters circularly on the stop
displaying state and the running displaying state. It can also
select the modication bit of the pa
rameters when modifying the
parameters.
RUN Running
In the keypad operation mode, it is used for running and
operating the controller.
STOP/
RESET
Stop/reset
The key is for stopping the running when the controller is in the
running state, and for resetting the faulty status.
QUICK Quick key Enter or exit the quick menu
MF.K
Multi-function
selection
Display and remove of error message
3.4.3 Viewing and Operation Instruction of Function Code
3-level menu operational procedures:1)
NICE3000 adopt 3-level menu to conduct the parameter setting. Its convenient to query and
modify function code and parameter.
3-level menu include: function parameter group (first level) function code (second level)
function code setting (third level). Operation procedures are as follows (Fig 3-23):
0.000 50.00F0-06F0
Date show 1-level 2-level 3-level
PRG/
ENTER
PRGPRG
PRG ENTER ENTER
Change group
Modify code Change function code
Fig 3-23 level menu operational procedures
InstructionWhen in 3rd menu, system can be backed to 2nd menu by pressing PRG or
ENTER . The difference between the two ways are as followsit saves parameter after
pressing ENTER , then back to next function code in 2nd menu; And it does not save
parameter after pressing PRG , then keep staying at the current function code in 2nd menu.
Example: Change f
unction code F0-06 from 50.00Hz to 15.00Hz (bold means ash bit).
50.00F0-06F0-00
ENTER ENTER
50.00
10.0010.0015.00
F0-07
ENTER
F0
PRG
0.000 F0
PRG
PRG
Display in stop
Fig 3-24 Example for Parameter Change
