NICE3000 User Manual Function parameter description
127

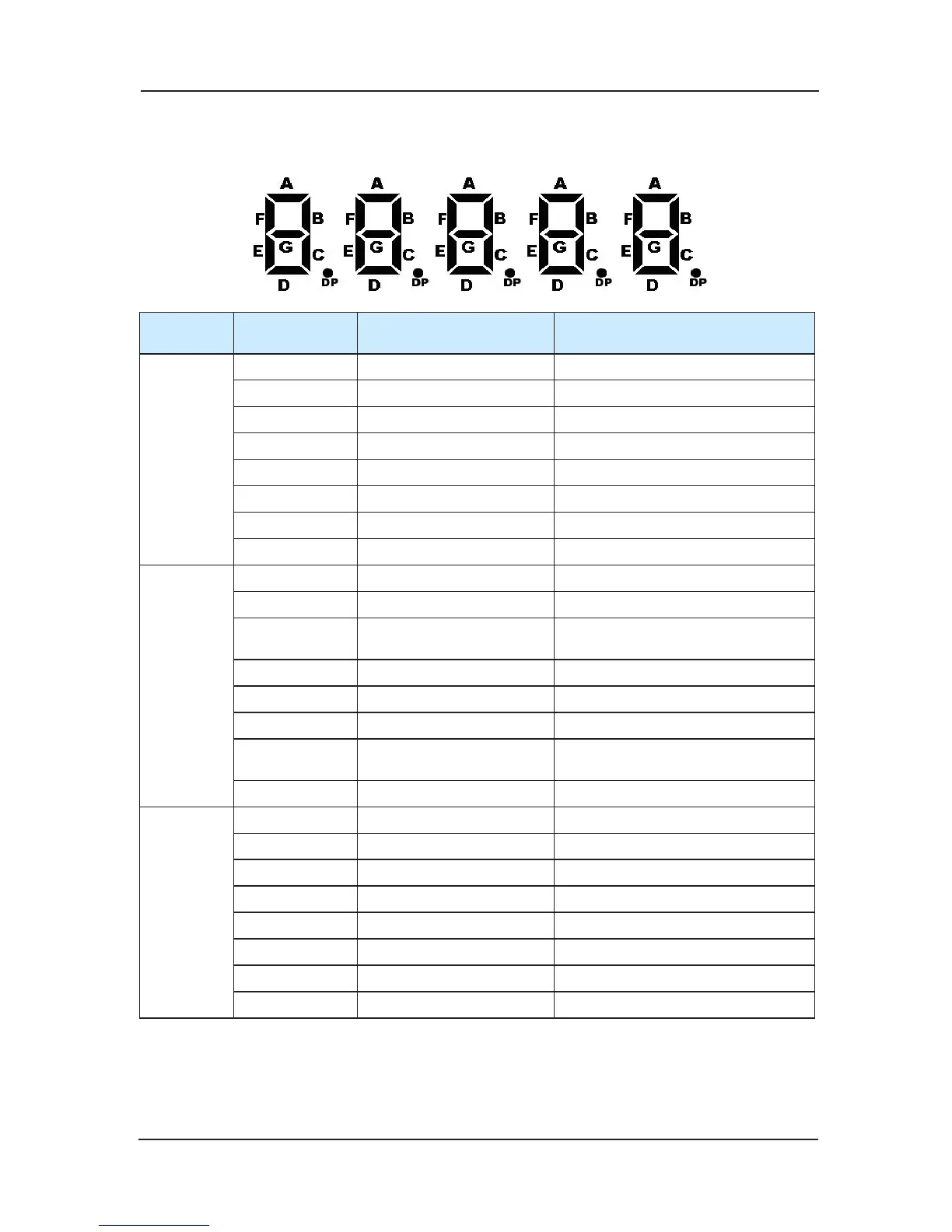

F5-34 expresses the state of the car top panel input or output terminal. Its meanings are listed
in the following charts:
Tube Serial
number
Tube passage
marker
Tube passage meaning Tube passage “light” meaning
1
A Front light curtain input Light curtain shut out
B Back light curtain input Light curtain shut out
C Front door-open limit Front door-open limit
D Back door-open limit Back door-open limit
E Front door-close limit Front door-close limit
F Back door-close limit Back door-close limitl
G Digital load 3 (full load) Full load signal a
vailability
DP Digital load 4 (over load) Over load signal availability
2
A Door-open button input Signal availability
B Door-close button input Signal availability
C
Door-open delay button
input
Signal availability
D Non-stop button input Signal availability
E motorman button input Signal availability
F vary direction button input Signal availability
G
separately running button
input
Signal availability
DP Fire button input
Signal availability
3
A Front door-open Front door-open output
B Front door-close Front door-close output
C Door lock signal Door lock pass in the present system
D Back door-open Back door-open output
E Back door-close Back door-close output
F Door lock signal Door lock pass in the present system
G Up arrival gong Up arrival gong output
DP Down arrival gong Down arrival gong output
