Technical parameters of weighing sensor
size
Diameter 24mm
Height 87mm
Users can choose to equip weighing board (MCTC-LDB-A) for providing the system with the
signals of light load, full -load and over-load and complete to compensate analog weight, in
order to improve stability of lift running.
Installation Mode:
It’s recommended to be installed into the bottom of the car.

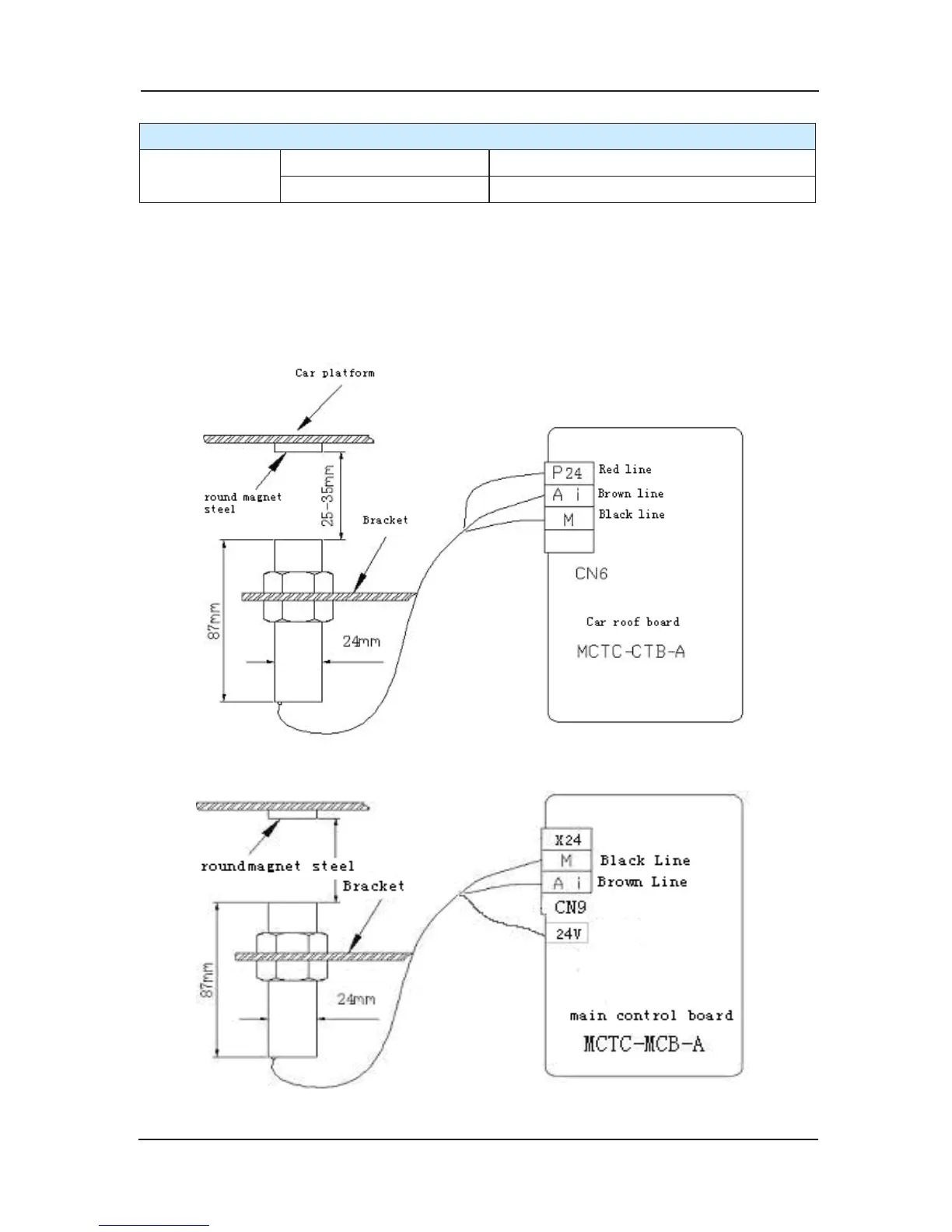

Fig 3-35 Installation sketch of weighing transducer (Transducer connected to the car top board)
Fig 3-36 Installation sketch of weighing transducer (Transducer connected to the main control board)
