6-34 POWER UNIT

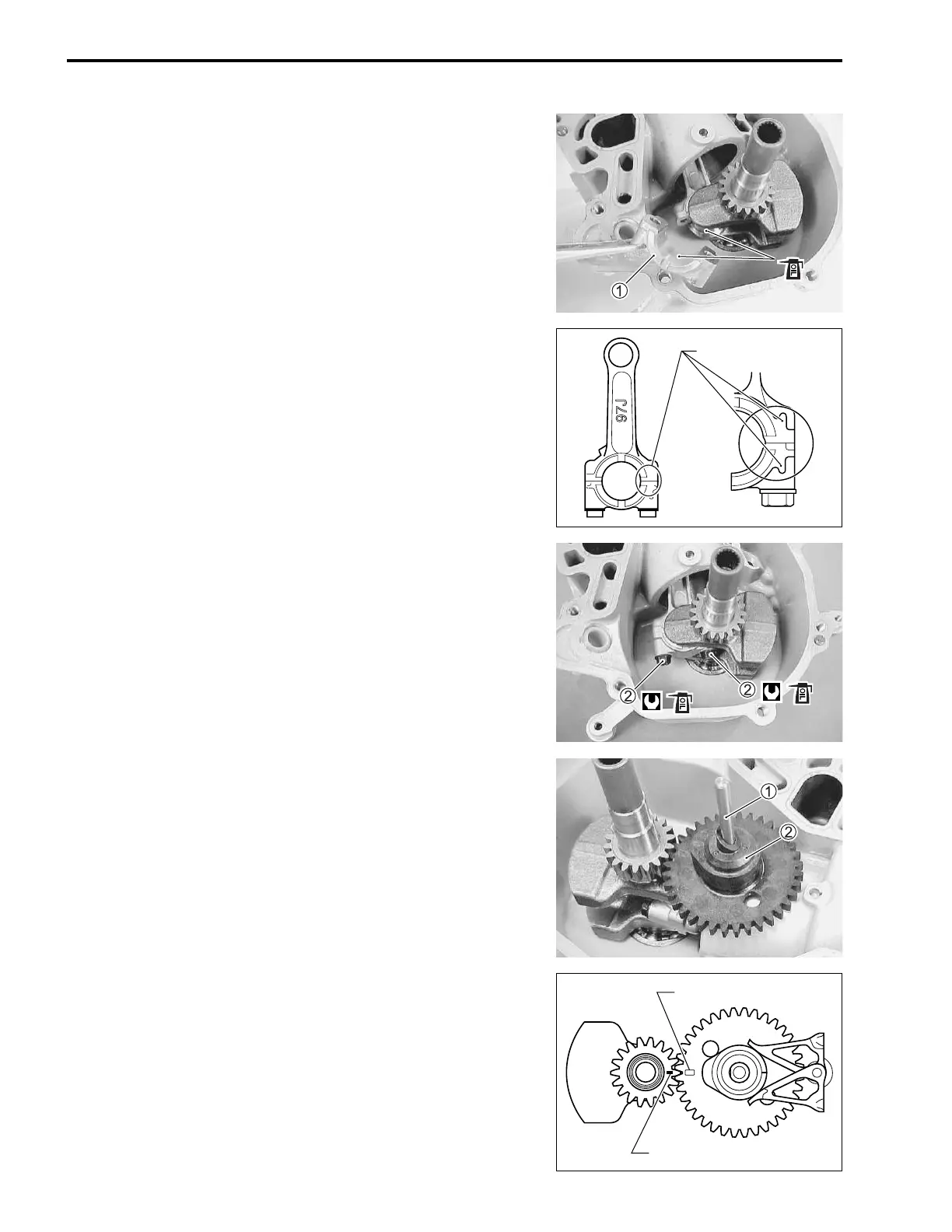

CONROD CAP
1. Apply engine oil to the crank pin, the connecting rod and the
connecting rod cap 1.
2. Install the conrod cap in the direction as shown in the figure.
3. Apply engine oil lightly to the conrod bolts.
4. Tighten the two conrod bolts to the specified torque in two
steps.
Conrod bolt:
1st step 3.5 N·m (0.35 kg-m, 2.5 lb-ft)
2nd step 7 N·m (0.7 kg-m, 5.0 lb-ft)
CAMSHAFT
1. Apply engine oil to the shaft 1.
2. Install the shaft 1 to the cylinder block.
3. Apply engine oil to the cam faces, the cam journals and the
timing gear.
4. While aligning each mark on the camshaft gear and the
crankshaft gear, install the camshaft 2.
Slit mark
Match mark
Match mark
To Next Page
