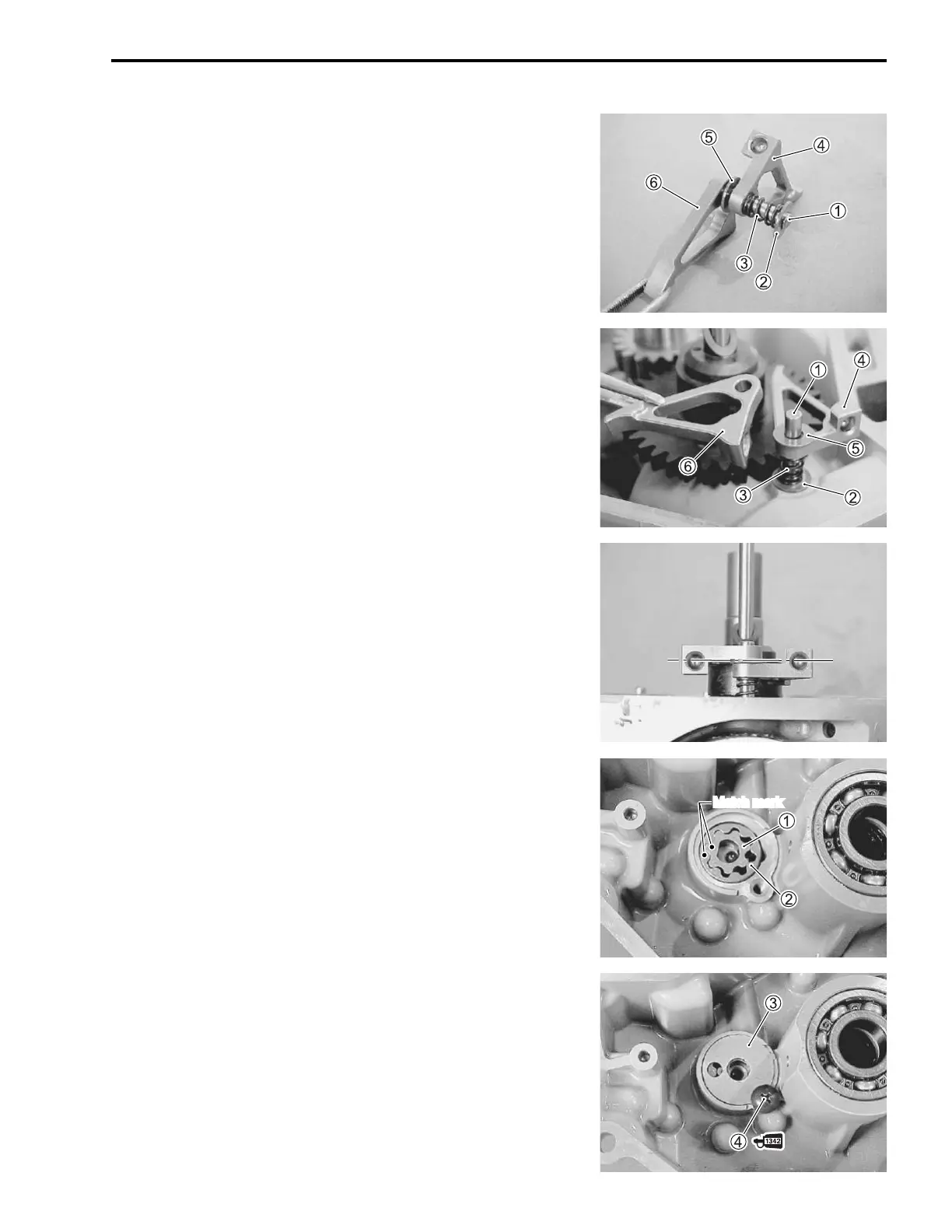

CAM ROCKER ARM
1. Apply engine oil to the cam rocker arm shaft 1.
2. Install the washer 2 and the spring 3 to the shaft 1 as
shown in the figure.
3. Install the cam rocker arm 4, the washer 5 and the cam
rocker arm 6.
NOTE:
Be sure the cam rocker arms are positioned as shown in the fig-
ure.
OIL PUMP
1. Apply engine oil to the inner rotor and the outer rotor.
2. Install the inner rotor 1 and the outer rotor 2 to the crank-
case as shown in the figure.
3. Install the outer plate 3.
4. Apply the THREAD LOCK to the screw 4.
99000-32050: THREAD LOCK “1342”
5. Secure the outer plate 3 with the screw 4.
Match mark
