Suzuki LT-A400F - Exhaust System; Precautions; Precautions for Exhaust System; Repair Instructions

1K-1 Exhaust System:
Engine
Exhaust System
Precautions
Precautions for Exhaust System
B827H11B00001
WARNING
!
To avoid the risk of being burned, do not touch the exhaust system when the system is hot. Any
service on the exhaust system should be performed when the system is cool.
CAUTION
!
Make sure that the exhaust pipe and muffler have enough clearance from the rubber parts and plastic
parts to avoid melting.
Repair Instructions

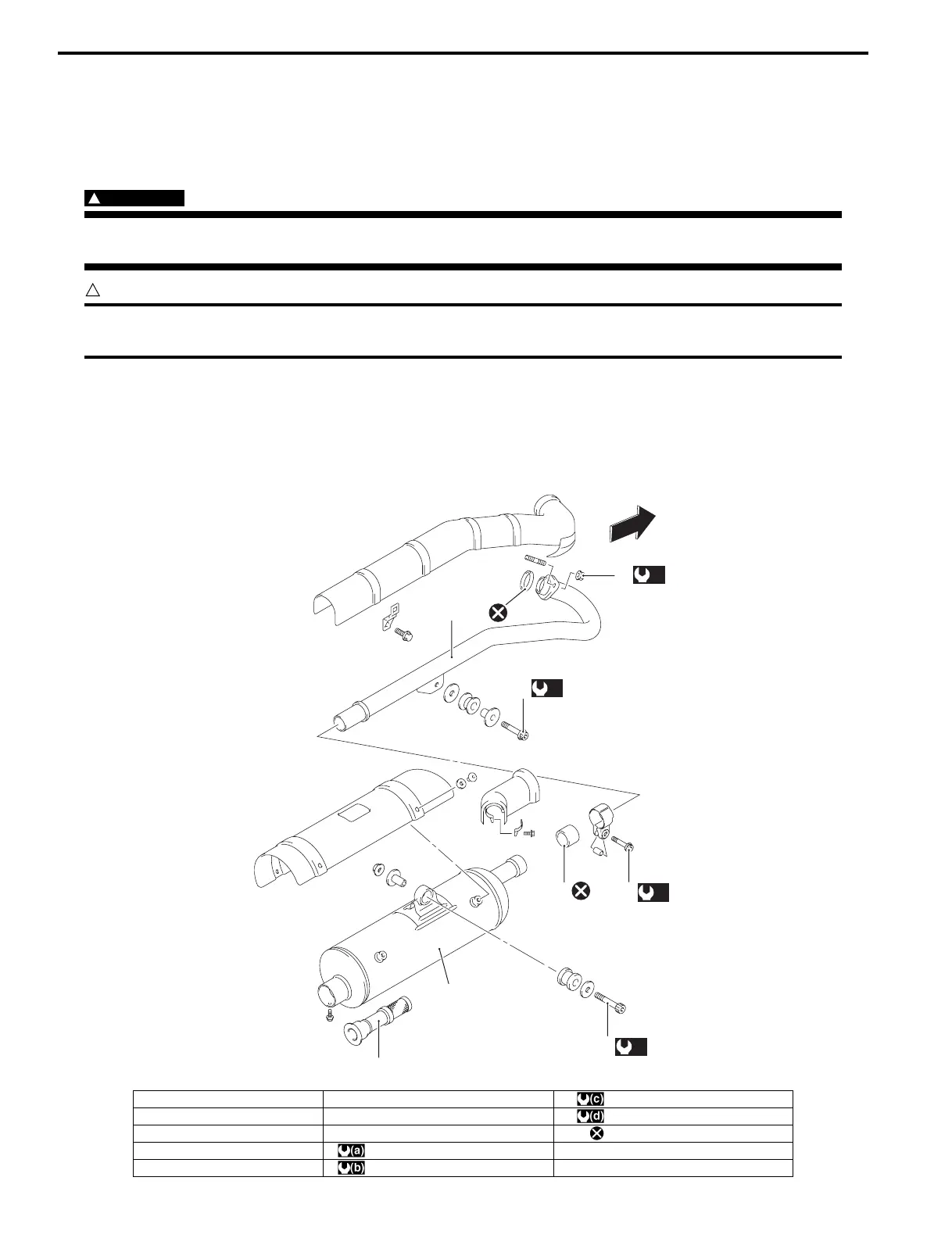

Exhaust System Components
B827H11B06001
1
(a)
4
(b)
5
3
(c)
6
(d)
7
2
8
FWD
FWD
I827H11B0012-02
1. Exhaust pipe 6. Muffler connecting bolt : 23 N⋅m (2.3 kgf-m, 16.5 lb-ft)
2. Muffler 7. Muffler mounting bolt : 23 N⋅m (2.3 kgf-m, 16.5 lb-ft)
3. Connector 8. Spark arrester : Do not reuse.
4. Exhaust pipe nut : 18 N⋅m (1.8 kgf-m, 13.0 lb-ft)
5. Exhaust pipe mounting bolt : 23 N⋅m (2.3 kgf-m, 16.5 lb-ft)
