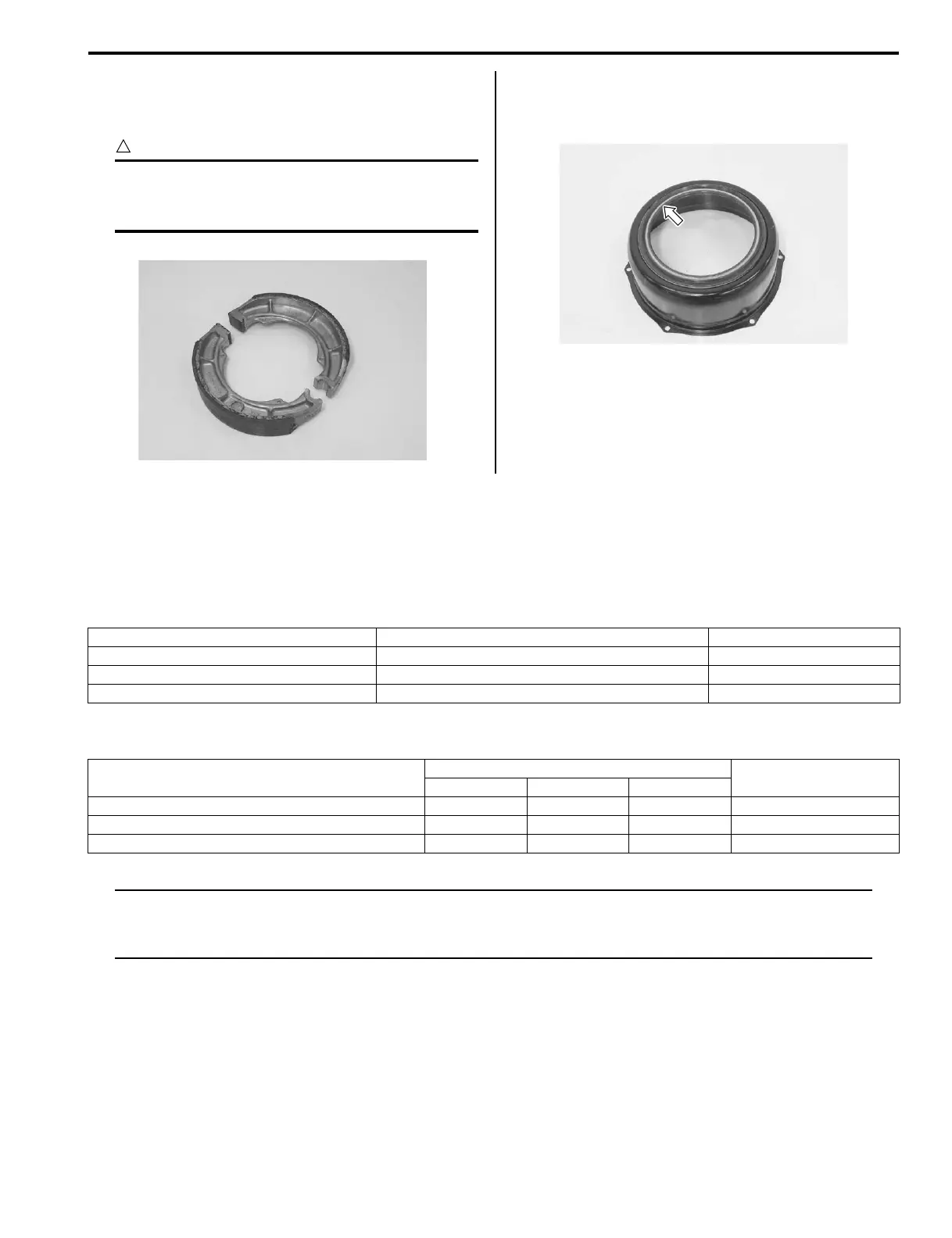

Rear Brakes: 4C-9
Brake Shoe
Inspect the brake shoes for wear or damage. If they are
worn or damaged, replace the shoes with new ones.
CAUTION
!
Replace the brake shoes as a set, otherwise
braking performance will be adversely
affected.
Dust Seal
Inspect the dust seal wear or damage. If it is worn or
damaged, replace the dust seal with a new one.
Specifications
Service Data (LT-A400/F, LT-F400/F)
B827H14307001
Brake
Unit: mm (in)
Tightening Torque Specifications
B827H14307002
NOTE
The specified tightening torque is also described in the following.
“Rear Brake Components (Page 4C-2)”
“Rear Brake Construction (Page 4C-3)”
Reference:
For the tightening torque of fastener not specified in this section, refer to “Tightening Torque List (LT-A400/F) in
Section 0C (Page 0C-9)”.
I827H1430037-01
I827H1430038-01
Item Standard Limit
Rear brake lever play 3 – 5 (0.1 – 0.2) —
Rear brake pedal free travel 20 – 30 (0.8 – 1.2) —
Rear brake drum I.D. — 160.7 (6.33)
Fastening part
Tightening torque
Note
N⋅mkgf-mlb-ft
Rear brake cam lever nut 11 1.1 8.0 )(Page 4C-6)
Rear brake anchor panel bolt 32 3.2 23.0 )(Page 4C-6)
Rear hub nut 121 12.1 87.5 )(Page 4C-8)
