Suzuki LT-A400F - Repair Instructions; Rear Suspension Components; Rear Suspension

Rear Suspension: 2C-1
Suspension
Rear Suspension
Repair Instructions

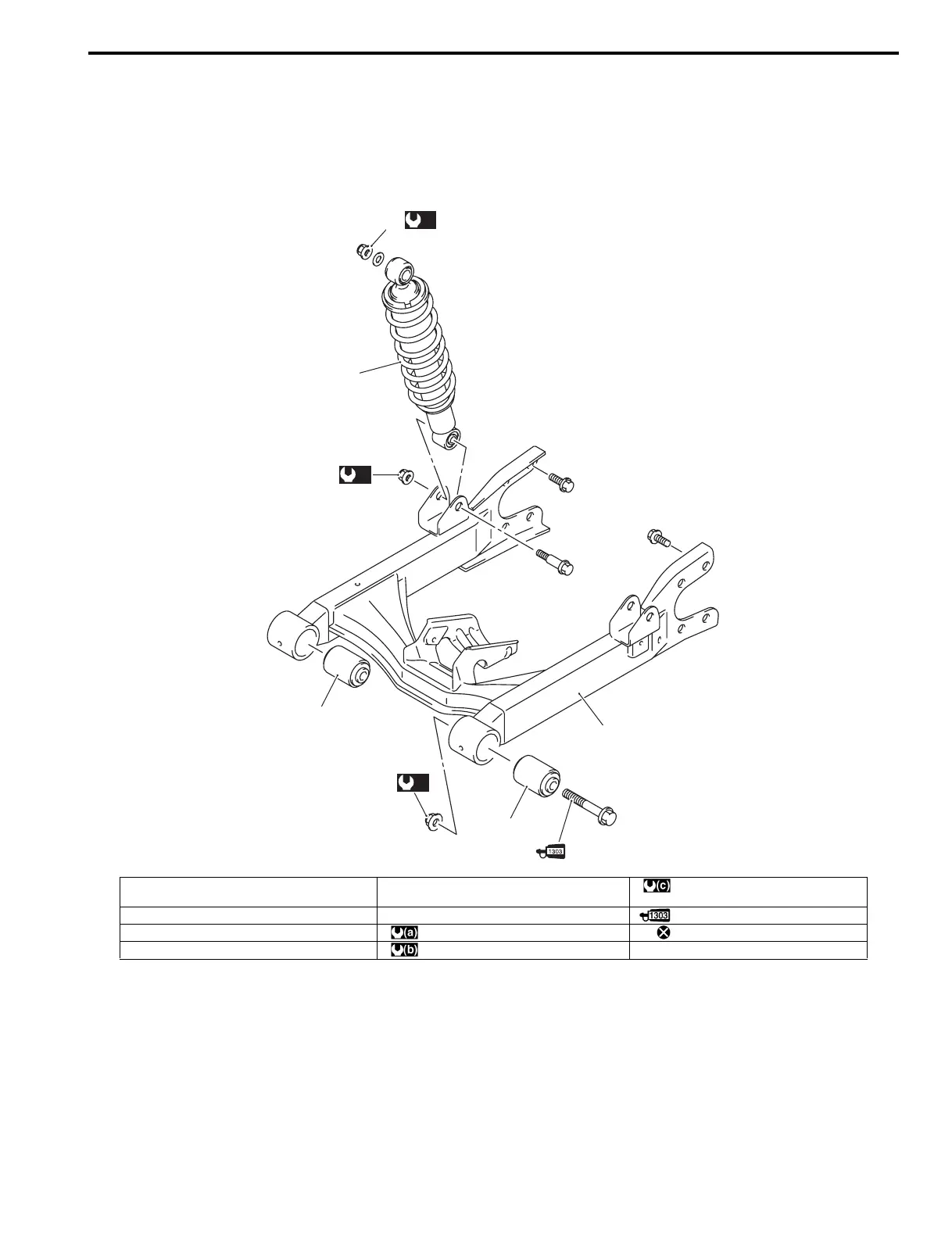

Rear Suspension Components
B827H12306001
1
(a)
4
2
3
3
(b)
5
(c)
6
I827H1230011-01
1. Rear shock absorber 5. Rear shock absorber mounting lower
nut
:102 N⋅m (10.2 kgf-m, 74.0 lb-ft)
2. Swingarm 6. Swingarm pivot nut : Apply thread lock to thread part.
3. Bushing : 35 N⋅m (3.5 kgf-m, 25.5 lb-ft) : Do not reuse.
4. Rear shock absorber mounting upper nut : 60 N⋅m (6.0 kgf-m, 43.5 lb-ft)
