2B-1 Front Suspension:
Suspension
Front Suspension
Repair Instructions

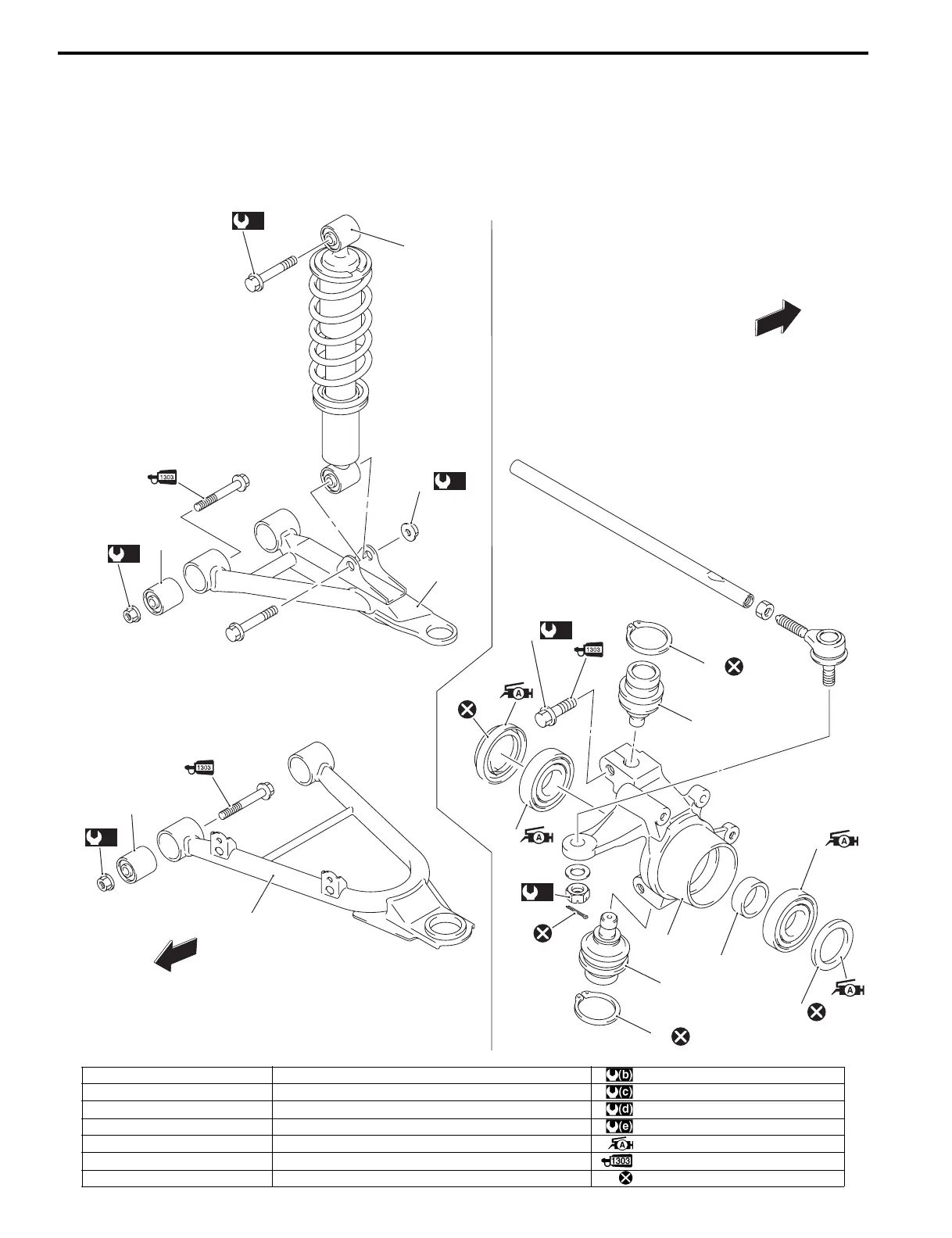

Front Suspension Components
B827H12206001
1
2
3
(a)
13
(c)
15
9
10
4
6
7
8
7
5
11
12
12
(e)
17
11
FWD
FWD
FWD
FWD
(c)
15
(b)
14
(b)
16
I827H1220045-05
1. Front shock absorber 10. Bushing : 60 N⋅m (6.0 kgf-m, 43.5 lb-ft)
2. Upper suspension arm 11. Knuckle end : 65 N⋅m (6.5 kgf-m, 47.0 lb-ft)
3. Bushing 12. Snap ring : 50 N⋅m (50 kgf-m, 36.0 lb-ft)
4. Steering knuckle 13. Front shock absorber mounting bolt (Upper) : 29 N⋅m (2.9 kgf-m, 21.0 lb-ft)
5. Inner dust seal 14. Front Shock absorber mounting nut (Lower) : Apply grease.
6. Spacer 15. Suspension arm pivot nut : Apply thread lock to the thread part.
7. Hub bearing 16. Steering knuckle pinch bolt : Do not reuse.
