Suzuki LT-A400F - 3 A-1 Drive Chain; Drive Train; Drive Shaft; Diagnostic Information and Procedures; Drive Shaft Symptom Diagnosis; Repair Instructions

3A-1 Drive Chain / Drive Train / Drive Shaft:
Driveline / Axle
Drive Chain / Drive Train / Drive Shaft
Diagnostic Information and Procedures
Drive Shaft Symptom Diagnosis
B827H13104001
Repair Instructions

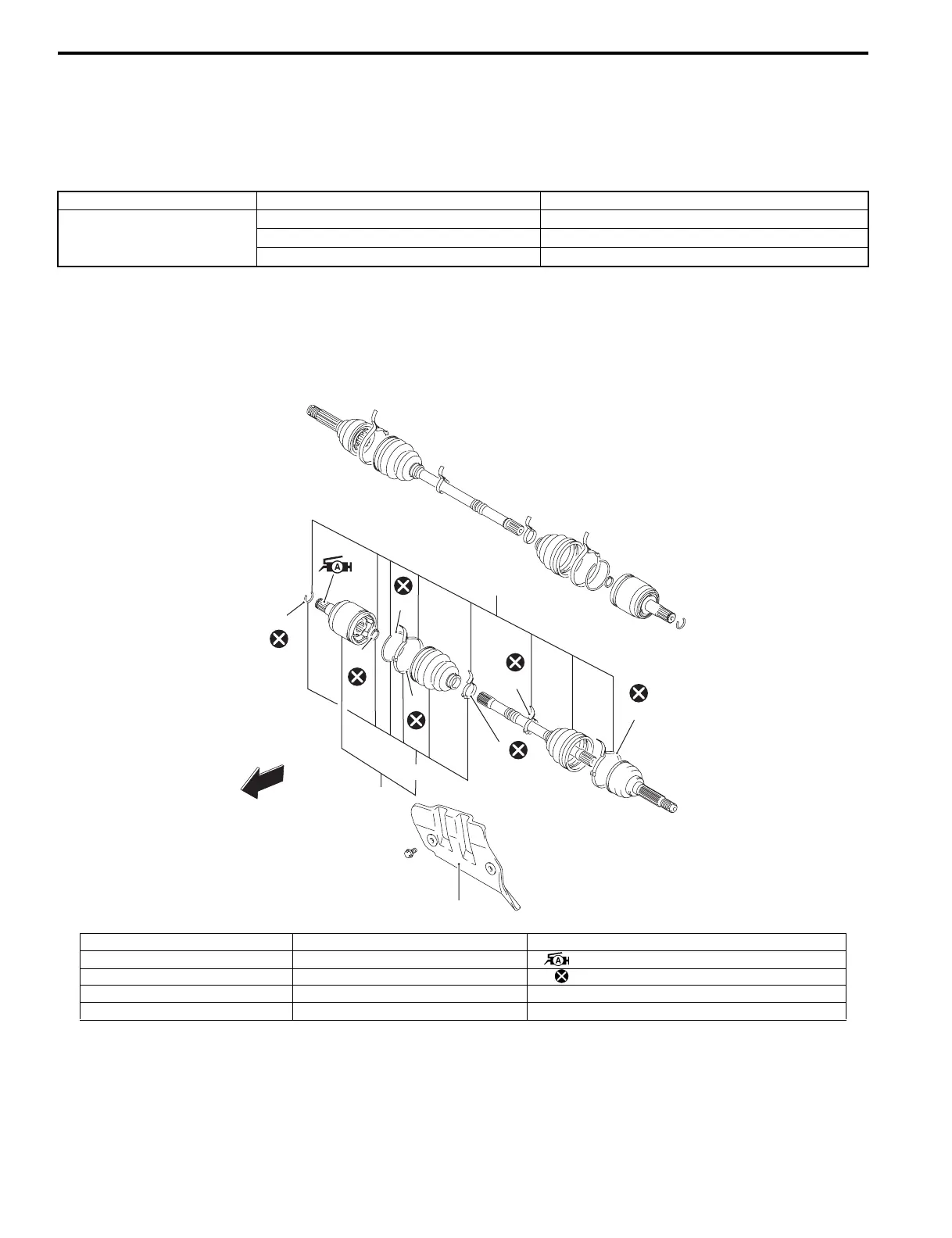

Front Drive Shaft Components (LT-A400F, LT-F400F)
B827H13106001
Condition Possible cause Correction / Reference Item
Noisy Drive Shaft Worn drive shaft joints. Replace.
Worn wheel hub bearings. Replace.
Loose wheel nuts. Tighten.
1
4
5
6
7
8
9
11
3
2
10
FWD
FWD
I827H1310024-01
1. Circlip 6. Differential side outer boot clamp 11. Drive shaft protector (LT-A400F/LT-F400F only)
2. Differential side joint set 7. Differential side inner boot clamp : Apply grease.
3. Differential side boot set 8. Wheel side inner boot clamp : Do not reuse.
4. Snap ring 9. Wheel side outer boot clamp
5. circlip 10. Boot set
