Steering / Handlebar: 6B-10
• Check the steering moves smoothly.
• Check the wiring harness routing, cable routing and
brake hose routing. Refer to “Wiring Harness Routing
Diagram in Section 9A (Page 9A-8)”, “Brake Cable
Routing Diagram in Section 4A (Page 4A-2)”and
“Front Brake Hose Routing Diagram in Section 4A
(Page 4A-1)”.
• After installing the wheels, inspect the toe-in. If the
toe-in is out of specification, bring it into the specified
range. Refer to “Steering System Inspection in
Section 0B (Page 0B-18)” and “Toe-In Adjustment in
Section 0B (Page 0B-18)”.
Steering Parts Inspection
B827H16206007
Refer to “Steering Shaft / Tie-rod Removal and
Installation (Page 6B-5)”.

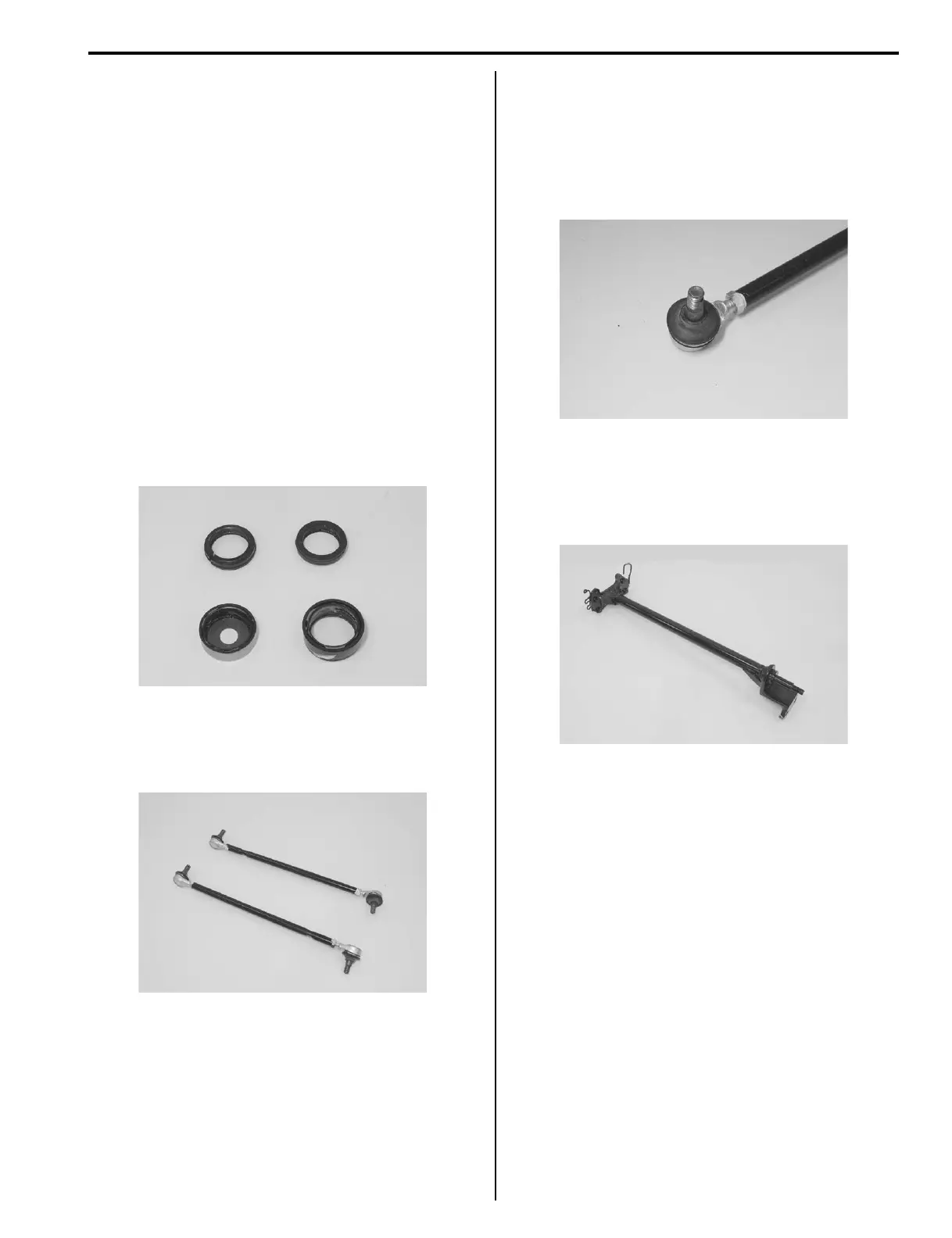

Dust Seal
Inspect the dust seals for wear or damage. If any defects
are found, replace the dust seals with new ones.
Tie-rod
Inspect the tie-rods for distortion or damage. If any
defects are found, replace the tie-rod with new ones.
Tie-rod End
Inspect the tie-rod ends for smooth movement. If there
are any abnormalities, replace the tie-rod ends with new
ones.
Inspect the tie-rod end boots for wear or damage. If any
defects are found, replace the tie-rod ends with new
ones.
Steering Shaft
Inspect the steering shaft for distortion or bend. If any
defects are found, replace the steering shaft with a new
one.
I827H1620042-01
I827H1620043-01
I827H1620044-01
I827H1620045-01
