Fastener Removal and Installation
B827H19406004

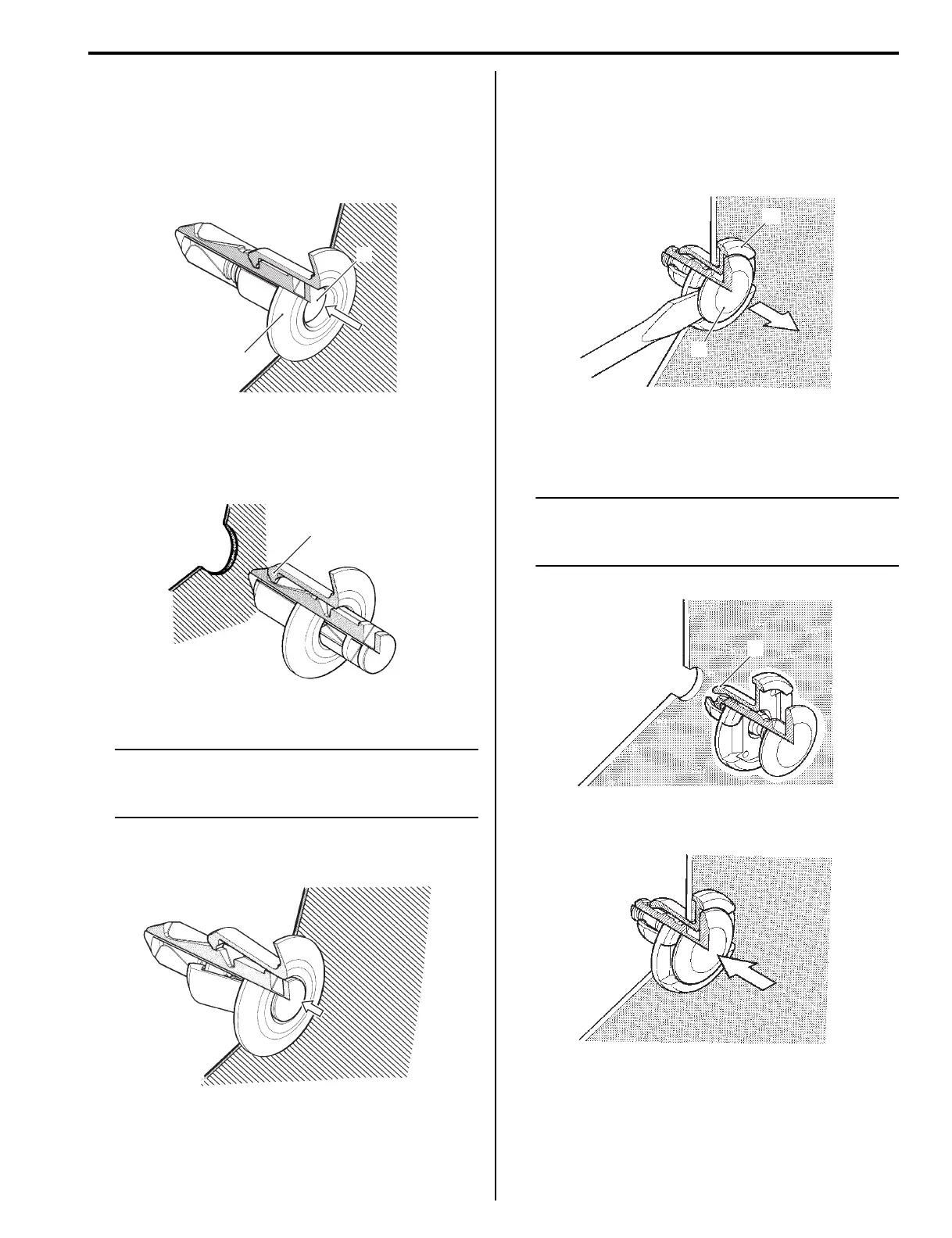

Type A
Removal
1) Depress the head of fastener center piece (1).
2) Pull out the fastener (2).
Installation
1) Let the center piece stick out toward the head so that
the pawls “A” closes.
2) Insert the fastener into the installation hole.
NOTE
To prevent the pawl “A” from damage, insert
the fastener all the way into the installation
hole.
3) Push in the head of center piece until it becomes
flush with the fastener outside face.
Type B
Removal
1) Pry up the head of fastener center piece (1) with a
screw driver.
2) Pull out the fastener “A”.
Installation
1) Insert the fastener into the installation hole.
NOTE
To prevent the pawl (2) from damage, insert
the fastener all the way into the installation
hole.
2) Push in the head of center piece.
