Suzuki LT-A400F - Repair Instructions; Body Structure; Body Frame Construction; Footrest Construction

9E-1 Body Structure:
Body and Acc essories
Body Structure
Repair Instructions

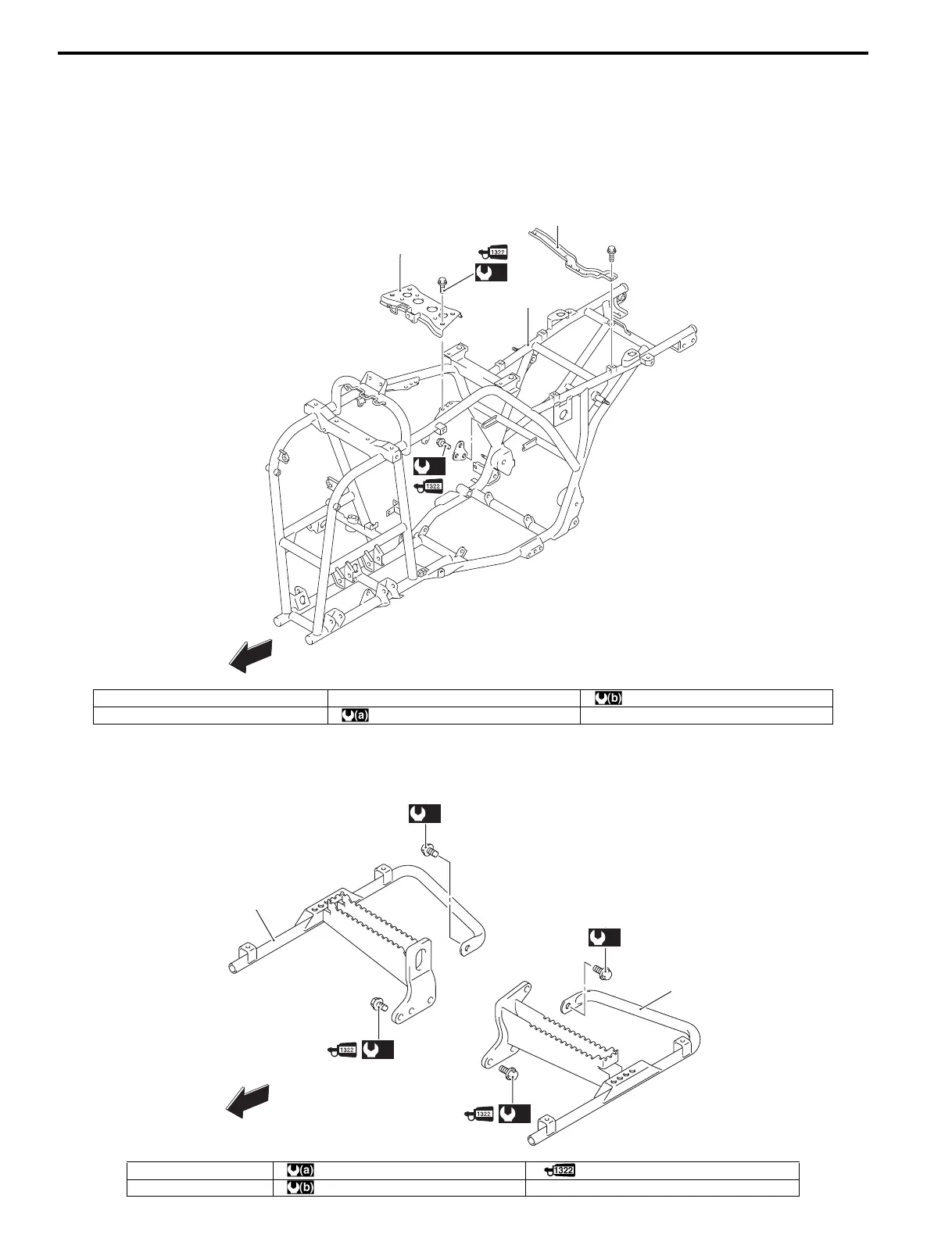

Body Frame Construction
B827H19506001
Footrest Construction
B827H19506002
2
3
1
FWD
FWD
(a)
(b)
I827H1950001-03
1. Frame 3. Battery plate : 28 N⋅m (2.8 kgf-m, 20.0 lb-ft)
2. Engine mounting upper bracket : 28 N⋅m (2.8 kgf-m, 20.0 lb-ft)
(b)
(b)
(a)
(a)
FWD
FWD
1
2
I827H1950002-03
1. Footrest (RH) : 55 N⋅m (5.5 kgf-m, 40.0 lb-ft) : Apply thread lock to the thread part.
2. Footrest (LH) : 25 N⋅m (2.5 kgf-m, 18.0 lb-ft)
