Suzuki LT-A400F - Rear Brake Construction; Rear Brake Shoe Inspection; Rear Brake Disassembly and Assembly

Rear Brakes: 4C-3

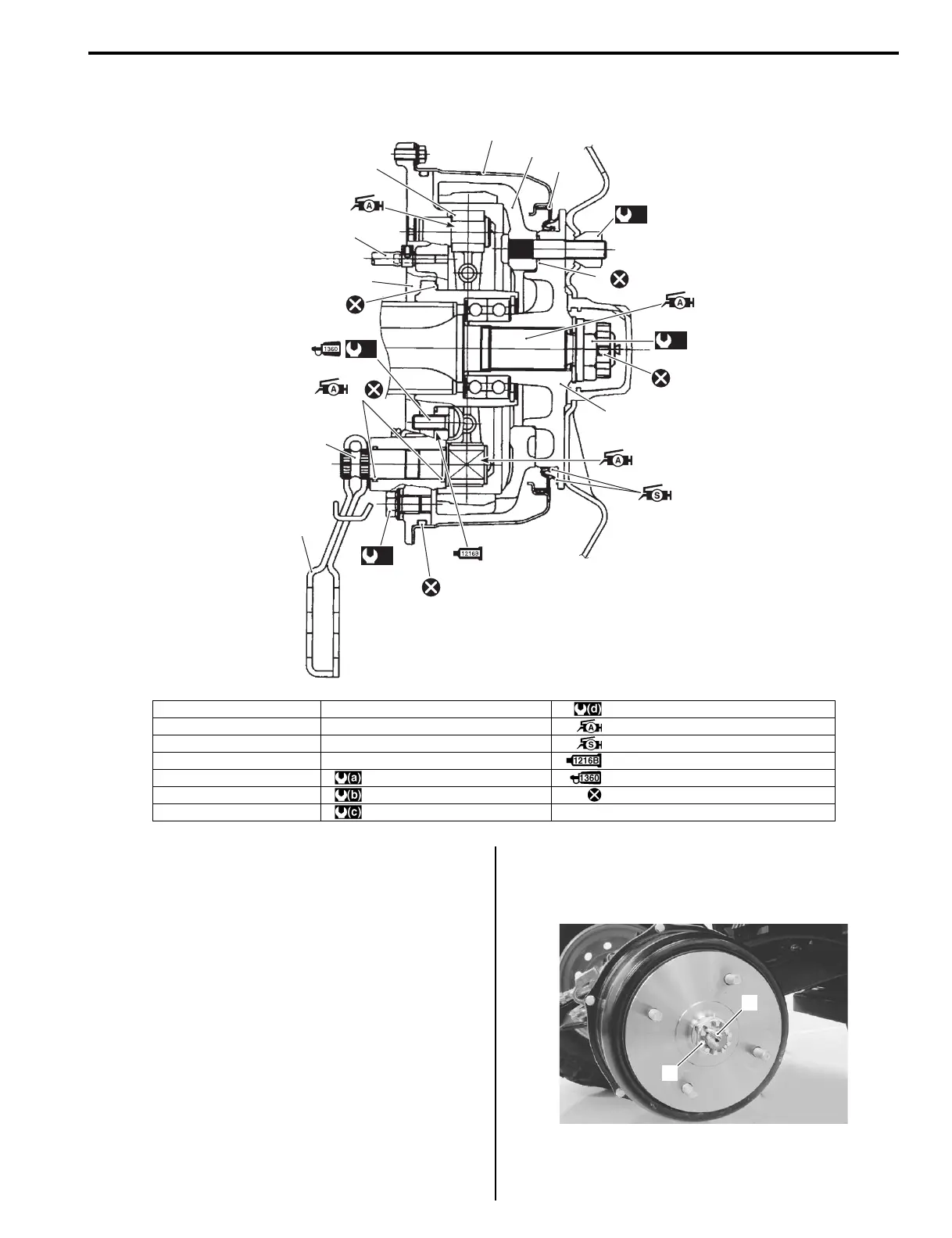

Rear Brake Construction
B827H14306007
Rear Brake Shoe Inspection
B827H14306002
Refer to “Rear Brake Pedal / Rear Brake (Parking Brake)
Lever Inspection and Adjustment in Section 0B
(Page 0B-16)” and “Rear Brake Related Parts Inspection
(Page 4C-8)”.
Rear Brake Disassembly and Assembly
B827H14306005
Disassembly
1) Remove the rear wheel assembly. Refer to “Front /
Rear Wheel Removal and Installation in Section 2D
(Page 2D-3)”.
2) Remove the cotter pin (1).
3) Remove the rear axle nut (2) by applying the rear
brake.
1
2
4
(d)
3
(c)
5
“A”
(b)
10
9
3
3
(a)
3
8
7
6
I827H1430034-02
1. Drum cover 8. Brake anchor panel : 60 N⋅m (6.0 kgf-m, 43.5 lb-ft)
2. Brake drum 9. Brake camshaft : Apply grease.
3. O-ring 10. Brake cam lever : Apply silicone grease.
4. Dust seal “A”: Apply soap water. : Apply bond to the mating surface.
5. Rear hub : 32 N⋅m (3.2 kgf-m, 23.0 lb-ft) : Apply thread lock to the thread part.
6. Brake shoe : 6 N⋅m (0.6 kgf-m, 4.5 lb-ft) : Do not reuse.
7. Breather hose : 121 N⋅m (12.1 kgf-m, 87.5 lb-ft)
1
2
I827H1430001-01
