Suzuki LT-A400F - Exterior Parts Removal and Installation

9D-3 Exterior Parts:

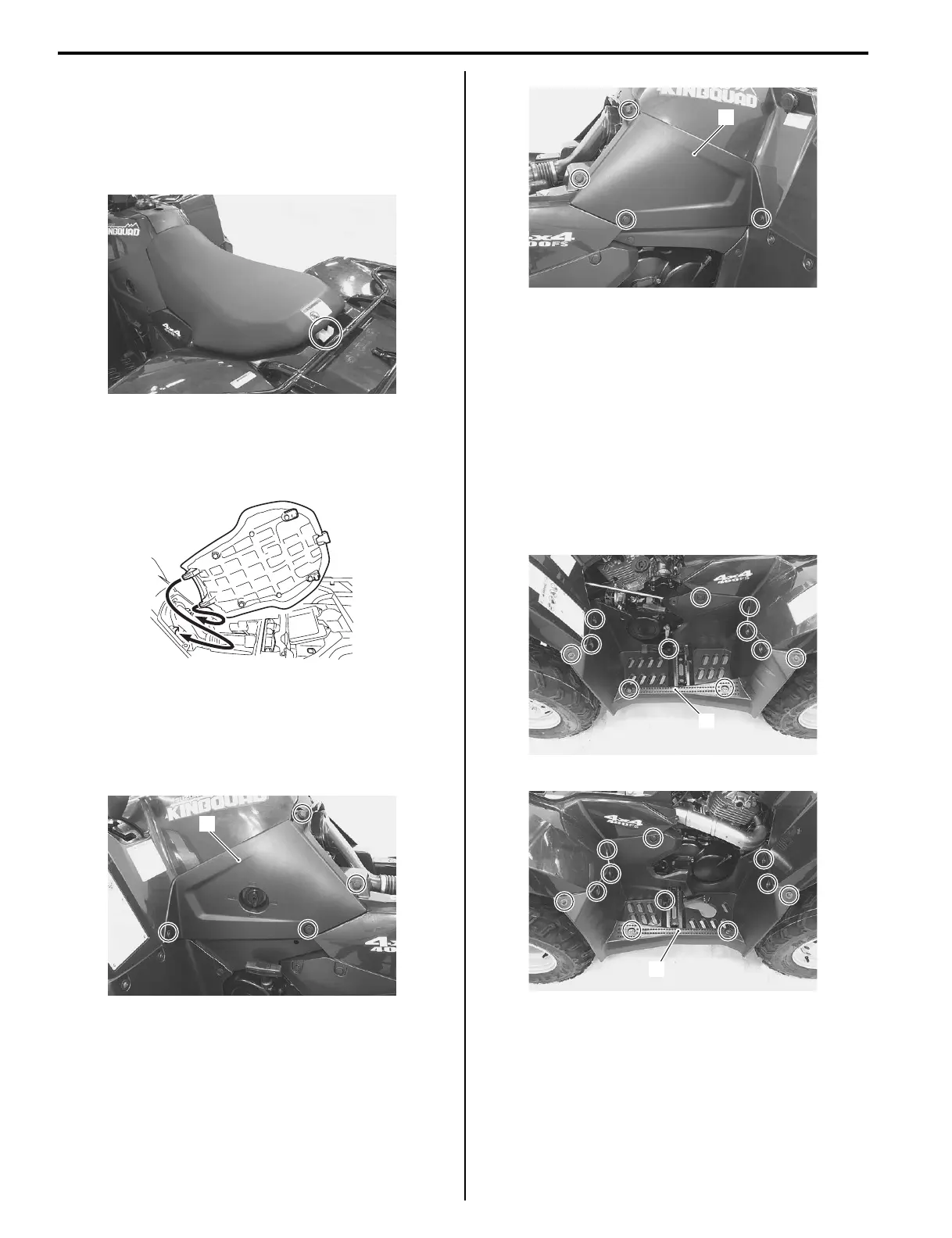

Exterior Parts Removal and Installation
B827H19406005
Seat
Removal
Unlock and remove the seat.
Installation
Insert the seat hooks into the retainers and push down
the seat firmly.
Side Cover
Removal
1) Remove the seat.
2) Remove the side cover (1) (LH/RH).
Installation
Installation is in the reverse order of removal.
Fuel Tank Upper Cover
Refer to “Fuel Tank Removal and Installation in Section
1G (Page 1G-13)”.
Footrest Mudguard
Removal
1) Remove the side cover.
2) Remove the footrest mudguard (1) (LH/RH).
Installation
Installation is in the reverse order of removal.
I827H1940004-01
I827H1940005-01
1
I827H1940006-01
1
I827H1940007-01
1
I827H1940008-01
1
I827H1940009-01
