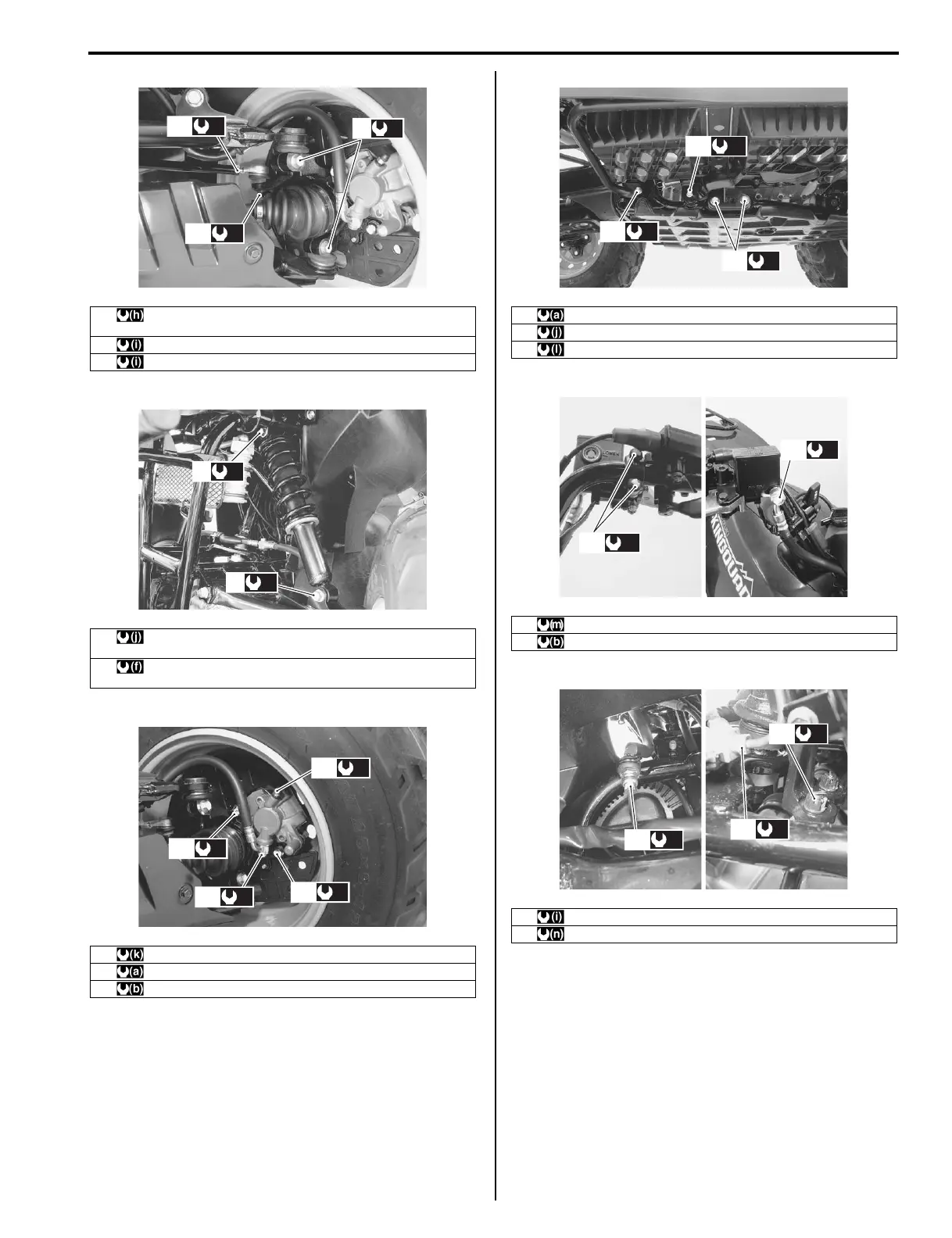

Maintenance and Lubrication: 0B-20
7 Steering knuckle pinch bolt (Upper and lower) 50 N⋅m 5.0 kgf-m,
36.0 lb-ft)
10 Tie-rod end nut 29 N⋅m (2.9 kgf-m, 21.0 lb-ft)
11 Tie-rod lock nut 29 N⋅m (2.9 kgf-m, 21.0 lb-ft)
8 Front shock absorber mounting bolt (Upper) 55 N⋅m (5.5 kgf-m,
40.0 lb-ft)
9 Front shock absorber mounting nut (Lower) 60 N⋅m (6.0 kgf-m,
43.5 lb-ft)
12 Brake air bleeder valve 6 N⋅m (0.6 kgf-m, 4.5 lb-ft)
13 Brake caliper mounting bolt 26 N⋅m (2.6 kgf-m, 19.0 lb-ft)
17 Brake hose union bolt 23 N⋅m (2.3 kgf-m, 16.5 lb-ft)
(i)
10
(i)
11
(h)
7
I827H1020057-02
(f)
9
(j)
8
I827H1020058-02
(k)
12
(a)
13
(b)
17
(a)
13
I827H1020059-02
14 Footrest bolt (M8) 25 N⋅m (2.5 kgf-m, 18.0 lb-ft)
15 Footrest bolt (M10) 55 N⋅m (5.5 kgf-m, 40.0 lb-ft)
19 Brake pedal bolt 12 N⋅m (1.2 kgf-m, 8.5 lb-ft)
16 Brake master cylinder mounting bolt 10 N⋅m (1.0 kgf-m, 7.0 lb-ft)
17 Brake hose union bolt 23 N⋅m (2.3 kgf-m, 16.5 lb-ft)
10 Tie-rod end nut 29 N⋅m (2.9 kgf-m, 21.0 lb-ft)
18 Front brake pipe nut 16 N⋅m (1.6 kgf-m, 11.5 lb-ft)
(a)
14
(j)
15
(l)
19
I827H1020060-02
(m)
16
(b)
17
I827H1020061-02
(n)
18
(n)
18
(i)
10
I827H1020062-02
