B+
Body ground
ECM (PCM) ground
Serial data line
(K line of ISO 9141)
6-1-8 ENGINE GENERAL INFORMATION AND DIAGNOSIS (SFI FOR G13)
In the 2nd through the 4th frames, the freeze frame data of each
malfunction is stored in the order as the malfunction is detected.
These data are not updated.

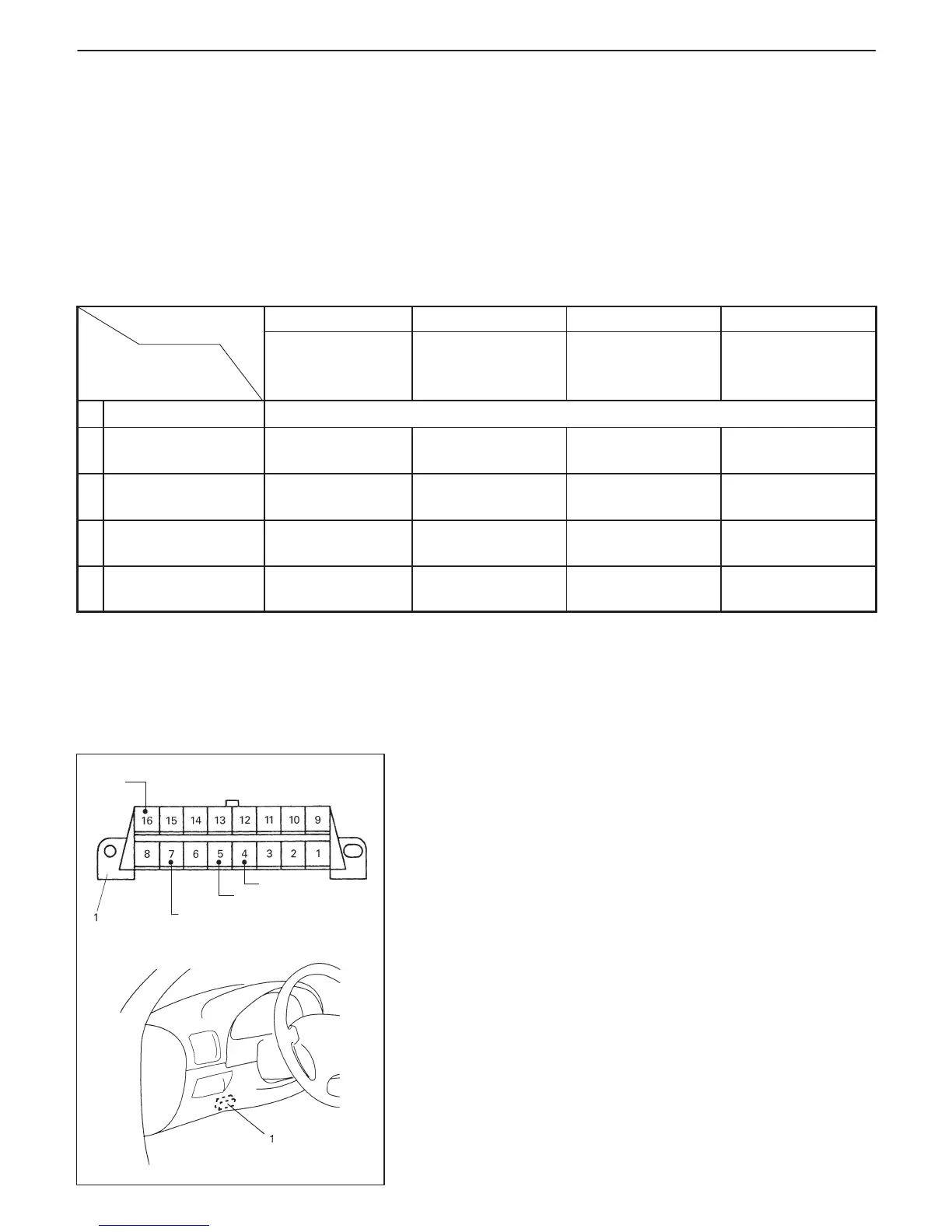

Shown in the table below are examples of how freeze frame data
are stored when two or more malfunctions are detected.
MALFUNCTION
DETECTED ORDER
FREEZE FRAME
DATA
to be updated
1st FREEZE
FRAME DATA
2nd FREEZE
FRAME DATA
3rd FREEZE
FRAME DATA
No malfunction No freeze frame data
1
P0400 (EGR)
detected
Data at P0400
detection
Data at P0400
detection
– –
2
P0171 (Fuel
system) detected
Data at P0171
detection
Data at P0400
detection
Data at P0171
detection
–
3
P0300 (Misfire)
detected
Data at P0171
detection
Data at P0400
detection
Data at P0171
detection
Data at P0300
detection
4
P0301 (Misfire)
detected
Data at P0171
detection
Data at P0400
detection
Data at P0171
detection
Data at P0300
detection
Freeze frame data clearance:
The freeze frame data is cleared at the same time as clearance of
diagnostic trouble code (DTC).
Data Link Connector (DLC)
DLC (1) is in compliance with ISO 15031-3 (SAEJ1962) in its instal-
lation position, the shape of connector and pin assignment.
Serial data line (K line of ISO 9141) is used for SUZUKI scan tool
(Tech-1) to communicate with ECM (PCM).
