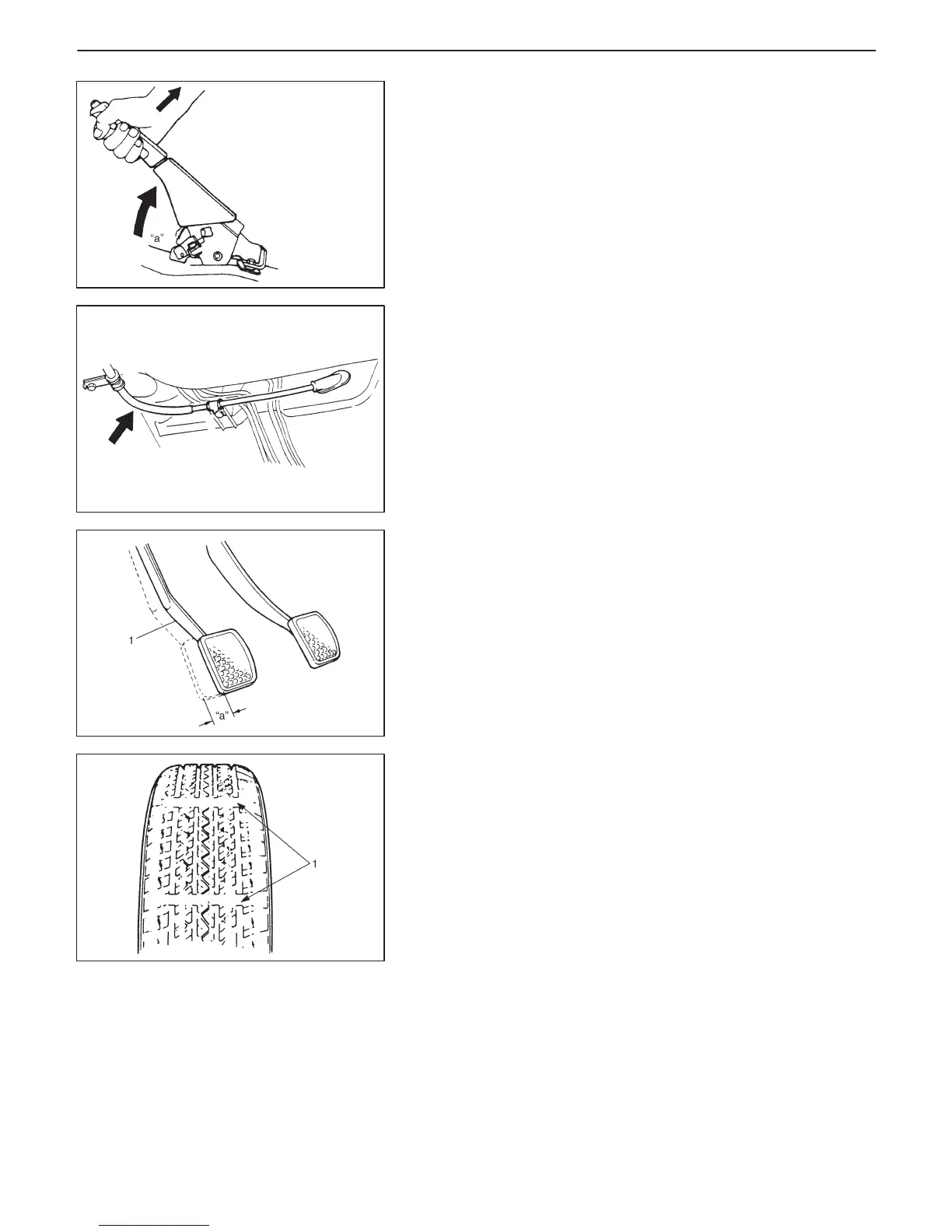

“a”: Parking brake lever stroke:
4 – 9 notches (With 20 kg
or 44 lbs of pull pressure)
1. Wear indicator
1. Clutch pedal
“a”: Free travel
0B-14 MAINTENANCE AND LUBRICATION
ITEM 5-4
Brake Lever and Cable Inspection
Parking brake lever
D Check tooth tip of each notch for damage or wear. If any damage
or wear is found, replace parking lever.
D Check parking brake lever for proper operation and stroke, and
adjust it if necessary.
For checking and adjusting procedures, refer to PARKING
BRAKE INSPECTION AND ADJUSTMENT of SECTION 5.
Parking brake cable
Inspect brake cable for damage and smooth movement.
Replace cable if it is in deteriorated condition.
CHASSIS AND BODY
ITEM 6-1
Clutch Pedal Free Travel Inspection
Check clutch pedal free travel. Refer to SECTION 7C for procedure
to check and adjust it.
ITEM 6-2
Tire and Wheel Disc Inspection
[Tire inspection]
1) Check tire for uneven or excessive wear, or damage. If defec-
tive, replace.
2) Check inflating pressure of each tire and adjust pressure to
specification as necessary.
NOTE:
D Tire inflation pressure should be checked when tires are
cool.
D Specified tire inflation pressure should be found on tire
placard or in owner’s manual which came with vehicle.
