MAINTENANCE AND LUBRICATION 0B-7

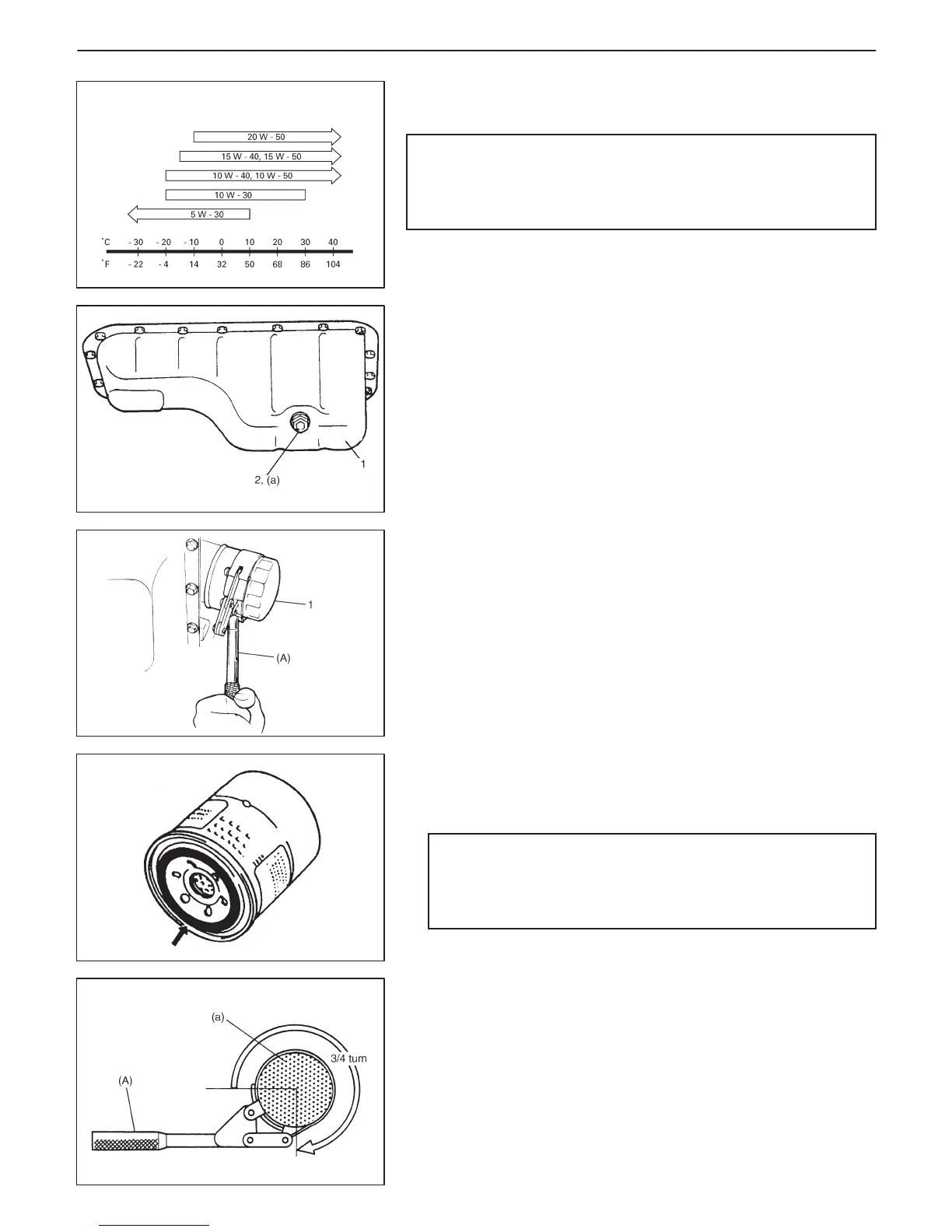

Proper Engine Oil Viscosity Chart
1. Oil pan
2. Oil drain plug
1. Oil filter
ITEM 1-4
Engine Oil and Filter Change
WARNING:
New and used engine oil can be hazardous.
Be sure to read “WARNING” in General Precaution in SEC-
TION 0A and observe what in written there.
Use engine oil of SE, SF, SG, SH or SJ grade.
Select the appropriate oil viscosity according to the left chart.
Before draining engine oil, check engine for oil leakage. If any evi-
dence of leakage is found, make sure to correct defective part be-
fore proceeding to following work.
1) Drain engine oil by removing drain plug.
2) After draining oil, wipe drain plug clean. Reinstall drain plug, and
tighten it securely as specified below.
Tightening Torque
(a): 35 N
.
m (3.5 kg-m, 25.5 lb-ft)
3) Loosen oil filter by using oil filter wrench (Special tool).
Special Tool
(A): 09915-47330
4) Apply engine oil to new oil filter O-ring.
5) Screw new filter on oil filter stand by hand until filter O-ring con-
tacts mounting surface.
CAUTION:
To tighten oil filter properly, it is important to accurately
identify the position at which filter O-ring first contacts
mounting surface.
6) Tighten filter 3/4 turn from the point of contact with mounting sur-
face using an oil filter wrench.
Special Tool
(A): 09915-47330
Tightening Torque (Reference)
(a): 14 N
.
m (1.4 kg-m, 10.5 lb-ft)
