G (Base Color)
G (Base Color)
Y (Stripe Color)
0A-24 GENERAL INFORMATION

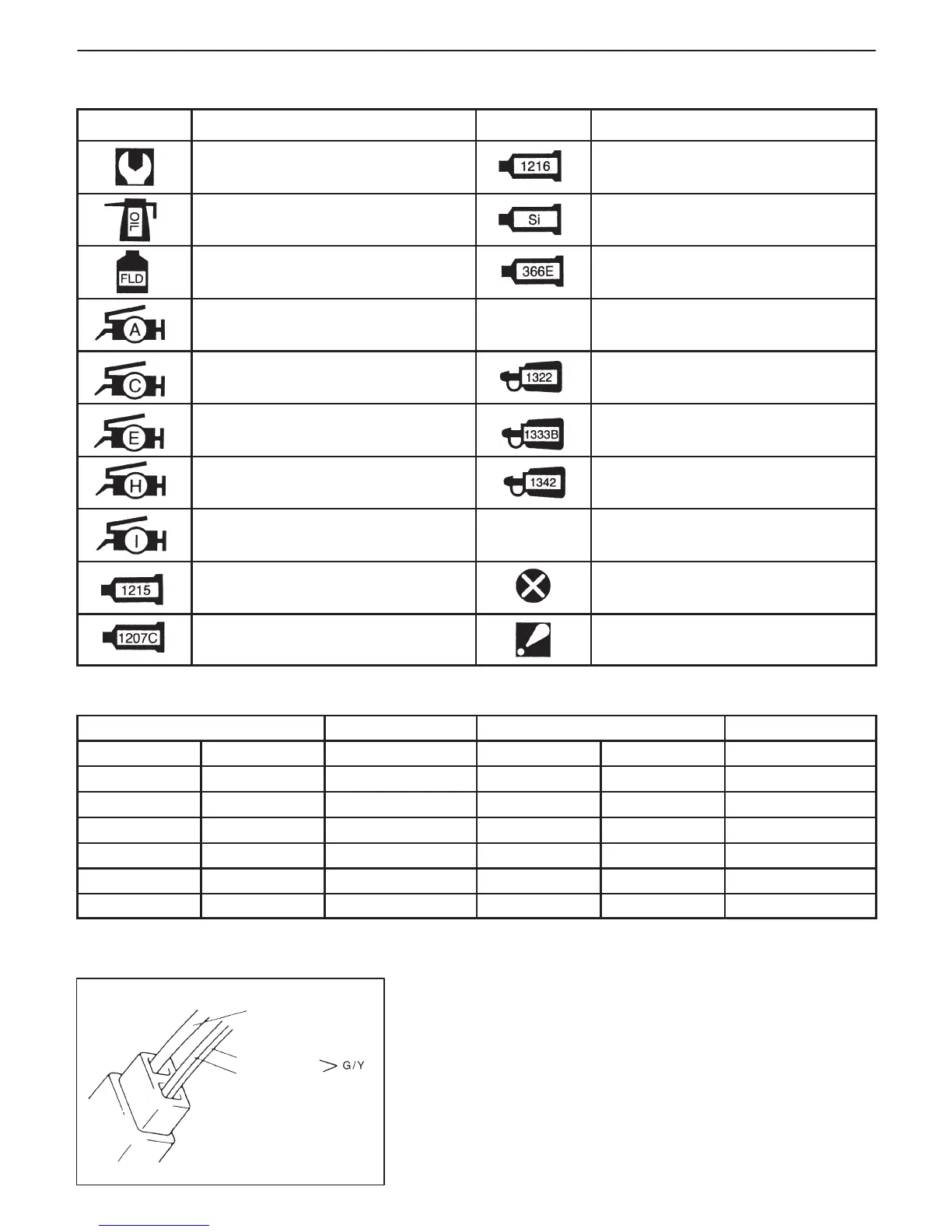

SYMBOLS
SYMBOL DEFINITION SYMBOL DEFINITION
Tightening torque Apply SUZUKI BOND NO. 1216
99000-31160
Apply oil (Engine, transmission,
transfer, differential)
Apply SILICONE SEALANT
99000-31120
Apply fluid (Brake, power steering or
automatic transmission fluid)
Apply SEALING COMPOUND 366E
99000-31090
Apply SUZUKI SUPER GREASE A
99000-25010
Apply SUZUKI SUPER GREASE C
99000-25030
Apply THREAD LOCK 1322
99000-32110
Apply SUZUKI SUPER GREASE E
99000-25050
Apply THREAD LOCK 1333B
99000-32020
Apply SUZUKI SUPER GREASE H
99000-25120
Apply THREAD LOCK 1342
99000-32050
Apply SUZUKI SUPER GREASE I
99000-25210
Apply SUZUKI BOND NO. 1215
99000-31110
Do not reuse
Apply SUZUKI BOND NO. 1207C
99000-31150
Note on reassembly
WIRE COLOR SYMBOLS
Symbol Wire Color Symbol Wire Color
B BLK Black O, Or ORN Orange
Bl BLU Blue R RED Red
Br BRN Brown W WHT White
G GRN Green Y YEL Yellow
Gr GRY Gray P PNK Pink
Lbl LT BLU Light blue V PPL Violet
Lg LT GRN Light green
There are two kinds of colored wire used in this vehicle. One is
single-colored wire and the other is dual-colored (striped) wire.
The single-colored wire uses only one color symbol (i.e. “G”).
The dual-colored wire uses two color symbols (i.e. “G/Y”). The first
symbol represents the base color of the wire (“G” in the figure) and
the second symbol represents the color of the stripe (“Y” in the fig-
ure).
To Next Page
