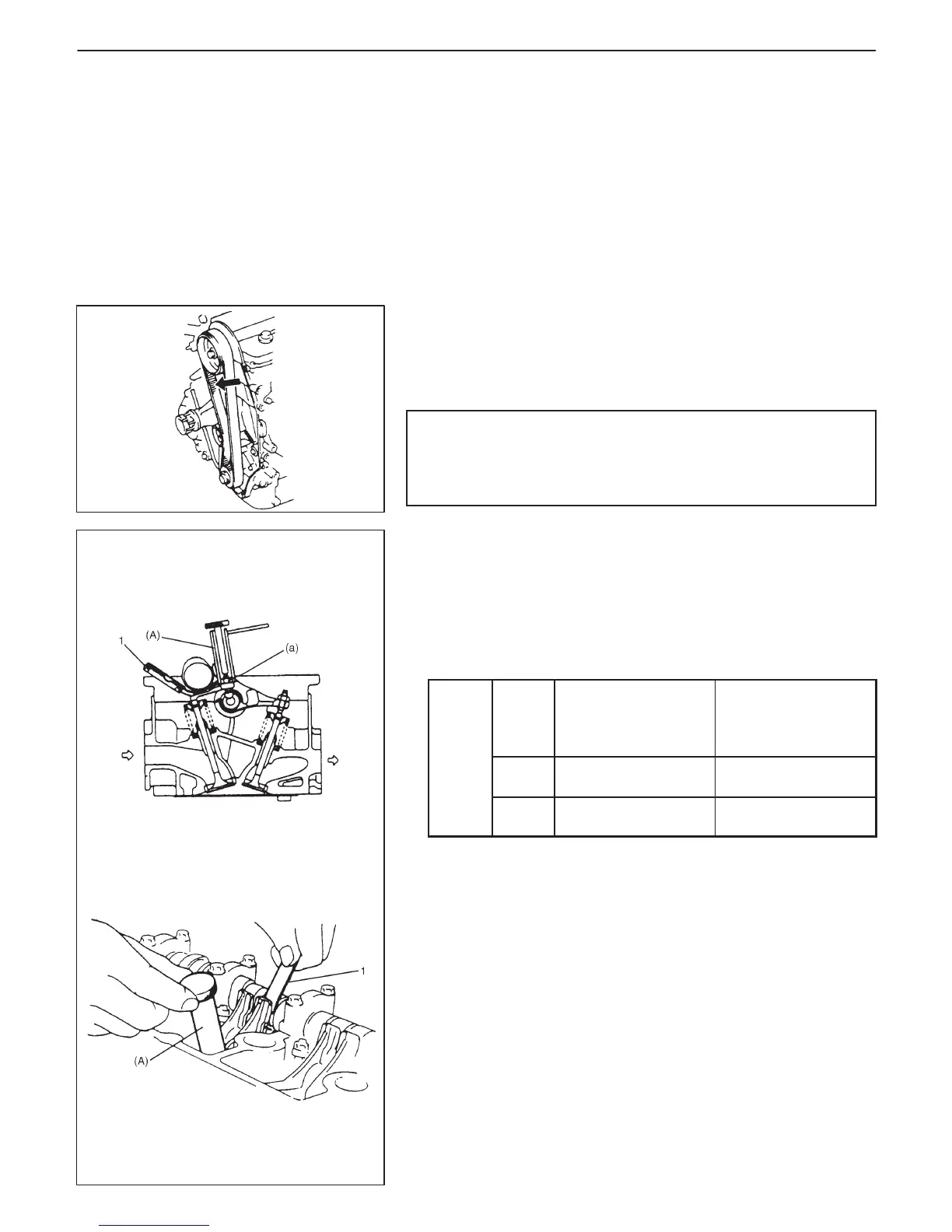

0B-6 MAINTENANCE AND LUBRICATION
Water Pump Belt Replacement
Replace belt with a new one. Refer to SECTION 6B for replacement
procedure of pump belt.
NOTE:
When replacing belt with a new one, adjust belt tension to
5 – 7 mm (0.20 – 0.27 in.).
ITEM 1-2
Camshaft Timing Belt Replacement
Replace belt with new one. Refer to SECTION 6A or 6A1 for re-
placement procedure.
CAUTION:
D Do not bend or twist timing belt.
D Do not allow timing belt to come into contact with oil, wa-
ter, etc.
ITEM 1-3
Valve Lash Inspection (1.3 liter engine only)
1) Remove cylinder head cover.
2) Inspect intake and exhaust valve lash and adjust as necessary.
Refer to SECTION 6A1 for valve lash inspection and adjustment
procedure.
Valve
lash
(gap)
When cold
(Coolant temperature is
15 – 25_C or 59 – 77_F)
When hot
(Coolant temperature is
60 – 68_C or
140 – 154_F)
(
gap
)
specifi-
cation
Intake
0.13 – 0.17 mm
(0.005 – 0.007 in.)
0.17 – 0.21 mm
(0.007 – 0.008 in.)
cation
Exhaust
0.23 – 0.27 mm
(0.009 – 0.011 in.)
0.28 – 0.32 mm
(0.011 – 0.013 in.)
Special Tool
(A): 09917-18211
Tightening Torque
(a): 12 N
.
m (1.2 kg-m, 8.5 lb-ft)
3) Install cylinder head cover and tighten bolts to specification.
