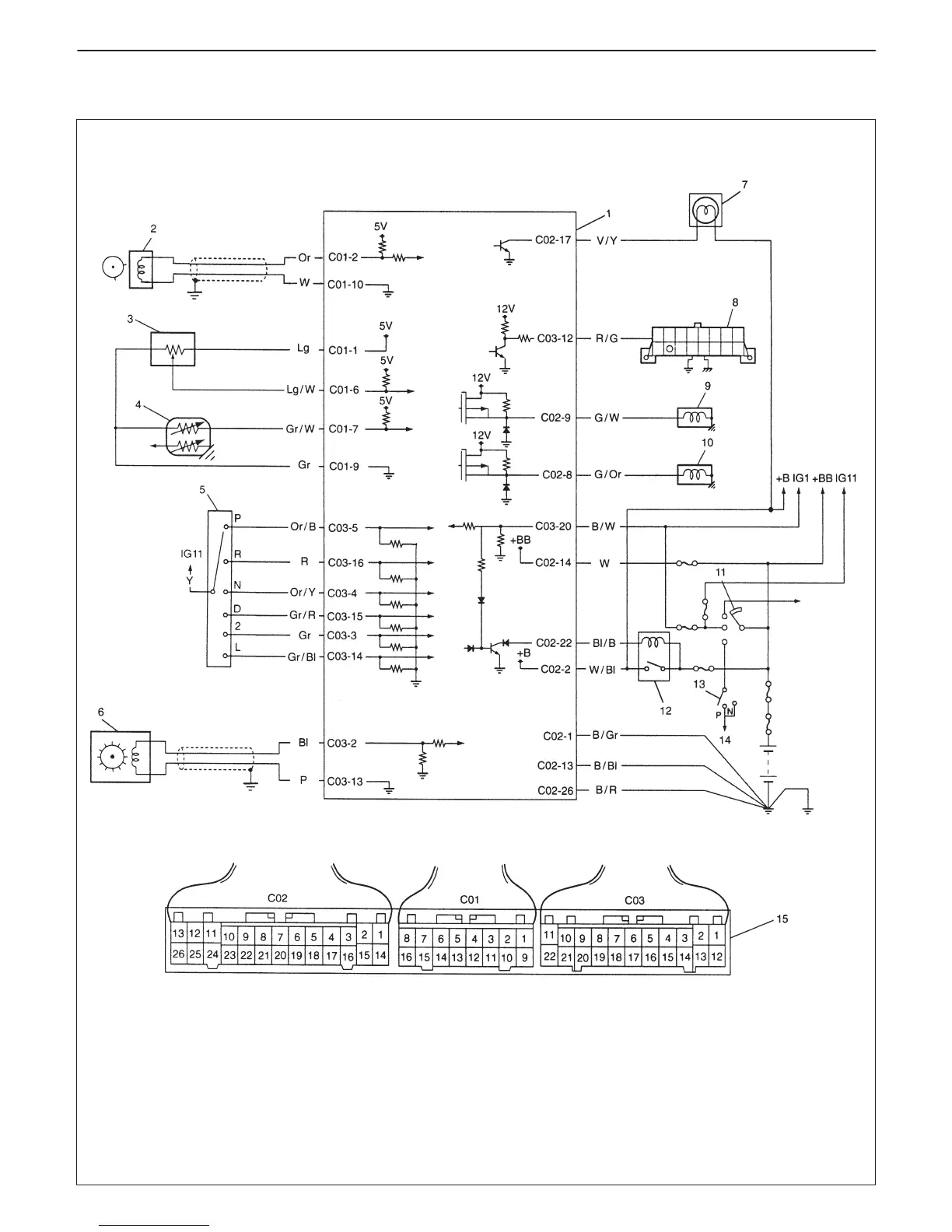

Suzuki Swift - Electronic Shift Control System

[G10 Engine Model]
1. PCM
2. Camshaft position (CMP) sensor
3. Throttle position (TP) sensor
4. Engine coolant temperature (ECT) sensor
5. Transmission range sensor (shift switch)
6. Output shaft speed sensor (A / T VSS)
7. Malfunction indicator lamp (MIL)
8. Data link connector (DLC)
9. Shift solenoid-A
(No.1, Direct clutch solenoid valve)
10. Shift solenoid-B
(No.2, 2nd brake solenoid valve)
11. Ignition switch
12. Main relay
13. Inhibitor switch
14. To starter
15. Terminal arrangement of PCM coupler
(Viewed from harness side)
AUTOMATIC TRANSMISSION (3 A / T) (VEHICLE WITH WU-TWC) 7B-5
ELECTRONIC SHIFT CONTROL SYSTEM
