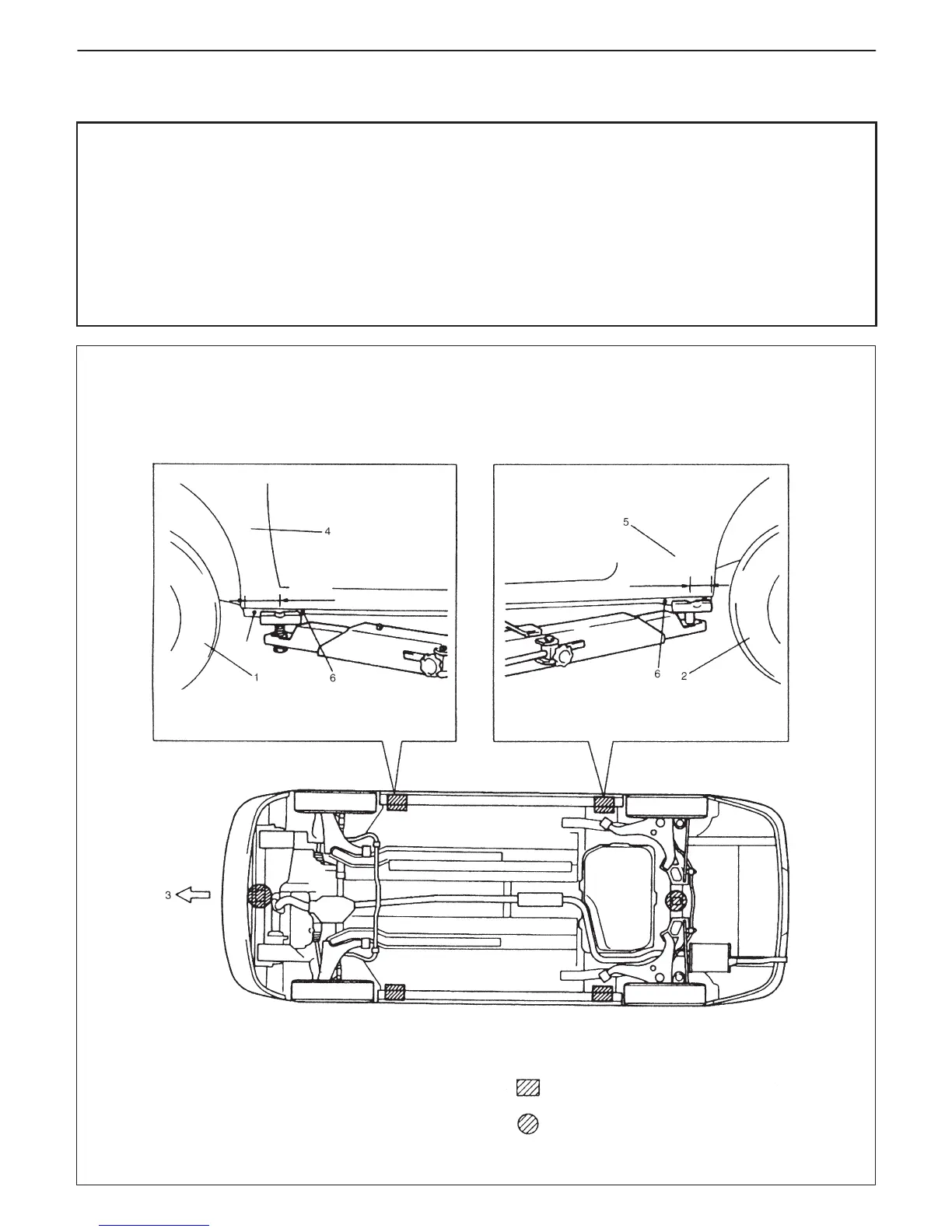

1. Front left tire
2. Rear left tire
3. Front
4. Front fender left panel
5. Rear left panel
6. Embossed-mark
When using frame contact hoist:
Front Support Location Rear Support Location
110 mm
(4.3 in.)
SUPPORT LOCATION
Forward of embossed-mark
120 mm
(4.7 in.)
SUPPORT LOCATION
Rearward of embossed-mark
: Support position for frame contact hoist and safety stand
: Floor jack position
Bolt
0A-20 GENERAL INFORMATION
VEHICLE LIFTING POINTS
WARNING:
D Before applying hoist to underbody, always take vehicle balance throughout service into consider-
ation. Vehicle balance on hoist may change depending of what part to be removed.
D Before lifting up the vehicle, check to be sure that end of hoist arm is not in contact with brake pipe,
fuel pipe, bracket or any other part.
D When using frame contact hoist, apply hoist as shown (right and left at the same position). Lift up the
vehicle till 4 tires are a little off the ground and make sure that the vehicle will not fall off by trying to
move vehicle body in both ways. Work can be started only after this confirmation.
D Make absolutely sure to lock hoist after vehicle is hoisted up.
