1. Transfer lock bolt
2. Shift fork shaft
Testing following items
D Speedometer
D Chassis dynamo
D Brake
D Wheel balance (on car type)
Towing vehicle with
front or rear
wheels lifted up
Driving front
wheels which are
jacked up
4WD
2WD
GENERAL INFORMATION 0A-17

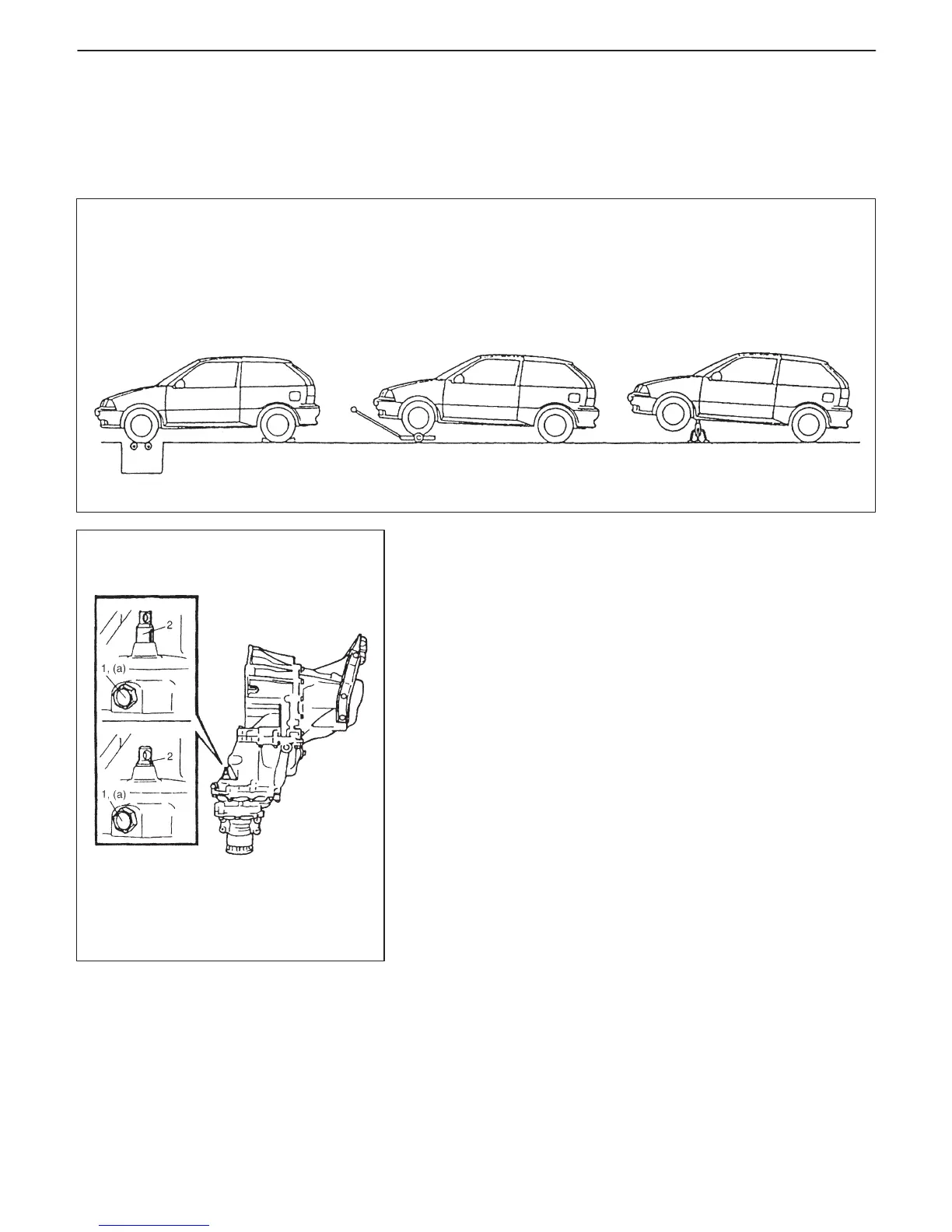

PRECAUTION IN SERVICING FULL-TIME 4WD VEHICLE
When performing any of the following types of work, be sure to make the vehicle as front wheel drive by cutting
transmission of driving force to the rear wheels. Otherwise, rear wheels are driven and vehicle accidents, damage
and personal injury may result.
SWITCHING FROM 4WD TO 2WD
Set 4WD/2WD select lever located at lower side of transfer driven
case to 2WD as follows.
1) Loosen transfer lock bolt.
2) Push in shift fork shaft fully.
3) With shift fork shaft pushed in, tighten transfer lock bolt.
Tightening Torque
(a): 19 N
.
m (1.9 kg-m, 14.0 lb-ft)
NOTE:
D If shift fork shaft is hard to move, try to move it while turning
it to the right and left little by little. Do the same when setting
back to 4WD after servicing vehicle.
D Upon completion of servicing, always set shift fork shaft
back to 4WD.
