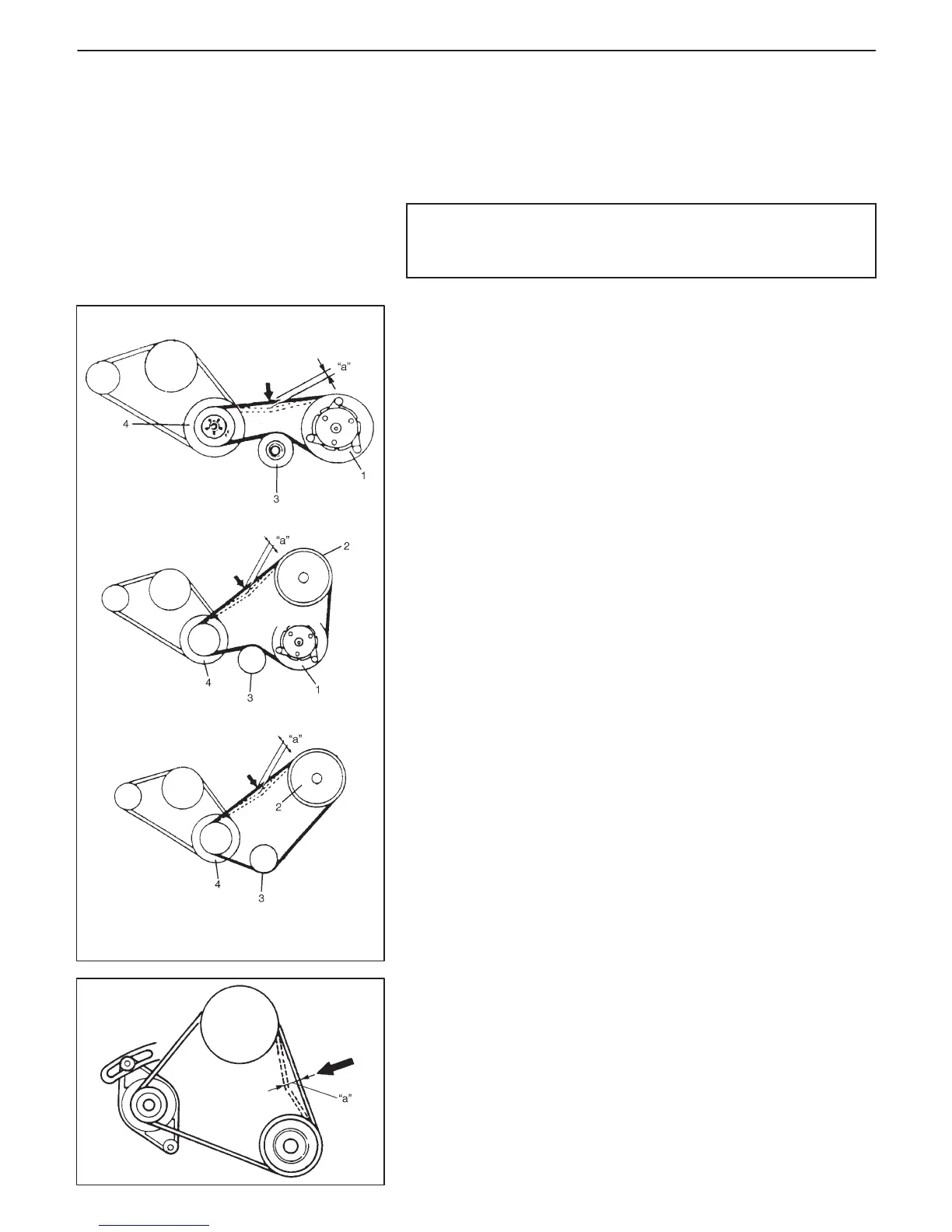

Vehicle with A/C
Vehicle with A/C and power steering
Vehicle with power steering
1. A/C compressor pulley
2. Power steering pump pulley
3. Tension pulley
4. Crankshaft pulley
MAINTENANCE AND LUBRICATION 0B-5
MAINTENANCE SERVICE
ENGINE
ITEM 1-1
Drive Belt Inspection and Replacement
WARNING:
Disconnect negative cable at battery before checking and
replacing belt.
A/C Compressor and/or Power Steering Pump Drive Belt
Inspection (If equipped)
1) Detach air cleaner assembly from vehicle body and shift its posi-
tion.
2) Inspect belt for wear, deterioration and tension.
Replace or adjust, if necessary.
A/C compressor and/or power steering pump drive belt
tension “a”:
7 – 9 mm (0.28 – 0.35 in.) deflection under 10 kg or 22 lb
pressure
A/C Compressor and/or Power Steering Pump Drive Belt
Replacement
1) Disconnect negative cable from battery.
2) Remove engine under cover of right side.
3) Loosen belt tension and replace belt with new one.
4) Adjust belt tension to specification referring to SECTION 1B or
SECTION 3B1.
5) Install engine under cover and connect negative cable to battery.
Water Pump Belt Inspection
1) Inspect belt for cracks, cuts, deformation, wear and cleanliness.
Replace, if necessary.
2) Check pump belt for tension and adjust it as necessary.
Water pump belt tension “a”:
6 – 8 mm (0.24 – 0.32 in.) deflection under 10 kg or 22 lb
pressure
