3 / 4 turn
ENGINE MECHANICAL (G10, 1-CAM 6-VALVES ENGINE) 6A-3

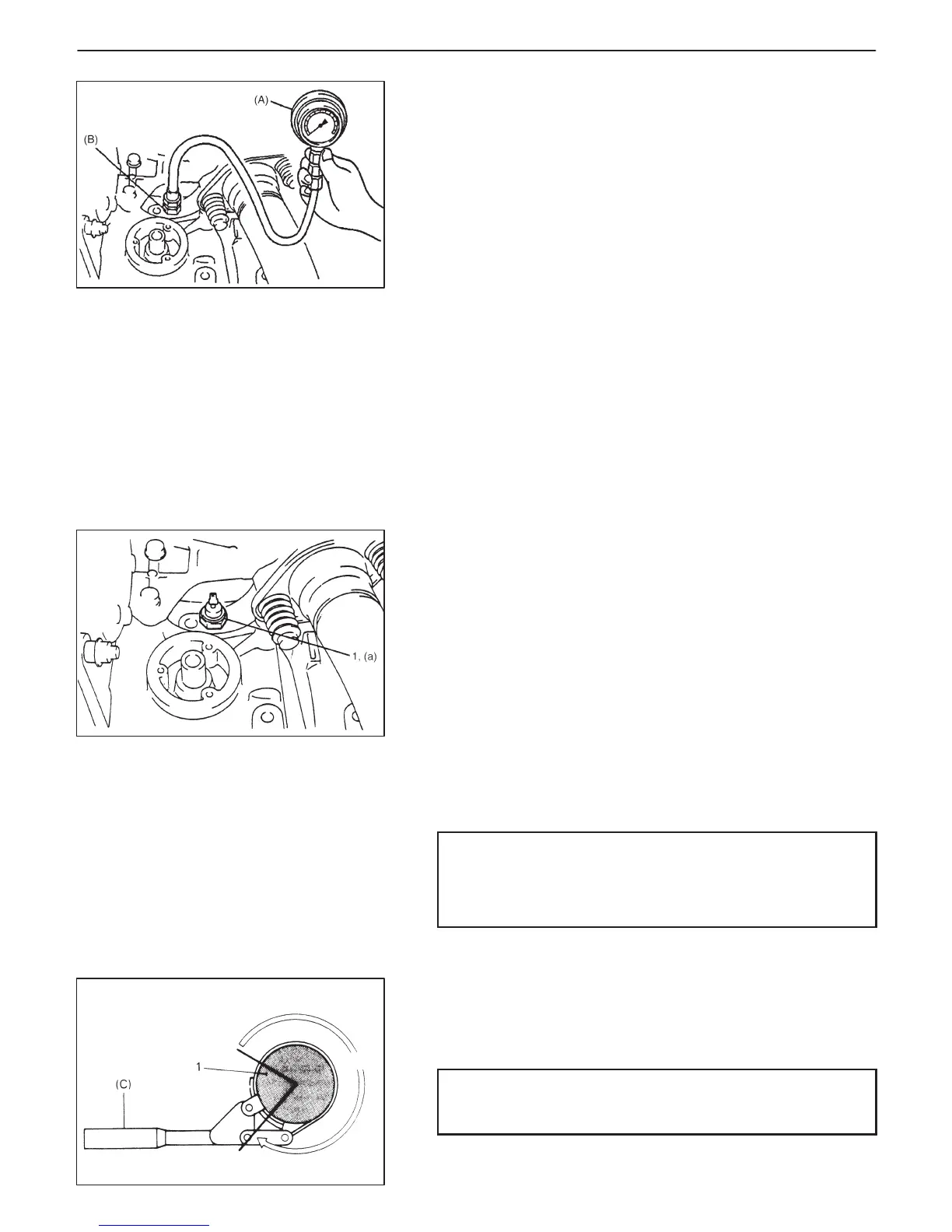

3) Install special tool (Oil pressure gauge) to vacated threaded
hole.
Special Tool
(A): 09915-77311
(B): 09915-78211
NOTE:
At this time, be very careful not to exert force to where
heated oxygen sensor and its lead wire are connected.
4) Reinstall oil filter.
5) Start engine and warm it up to normal operating temperature.
6) After warming up, raise engine speed to 4,000 r/min and mea-
sure oil pressure.
Oil pressure specifications: 270 – 370 kPa
(2.7 – 3.7 kg/cm
2
,
38.4 – 52.6 psi) at
4,000 r/min (rpm)
7) After checking oil pressure, stop engine and remove oil filter
and oil pressure gauge.
8) Before reinstalling oil pressure switch (1), be sure to wrap its
screw threads with a sealing tape and tighten switch to speci-
fied torque.
NOTE:
If sealing tape edge is bulged out from screw threads of
switch, cut it off.
Tightening Torque
(a): 14 N
.
m (1.4 kg-m, 10.5 lb-ft)
9) After oiling oil filter “O” ring (rubber gasket), screw oil filter on
oil filter stand by hand until filter “O” ring contacts mounting sur-
face.
CAUTION:
To tighten oil filter properly, it is important to accurately
identify the position where filter “O” ring first contacts
mounting surface.
10) Tighten filter (1) 3/4 (270_) turn from the point of contact with
mounting surface using an oil filter wrench.
Special Tool
(C): 09915-47310
CAUTION:
To prevent oil leakage, make sure that oil filter is tight,
but do not overtighten it.
11) After installing oil filter, start engine and check oil filter for oil
leakage.
