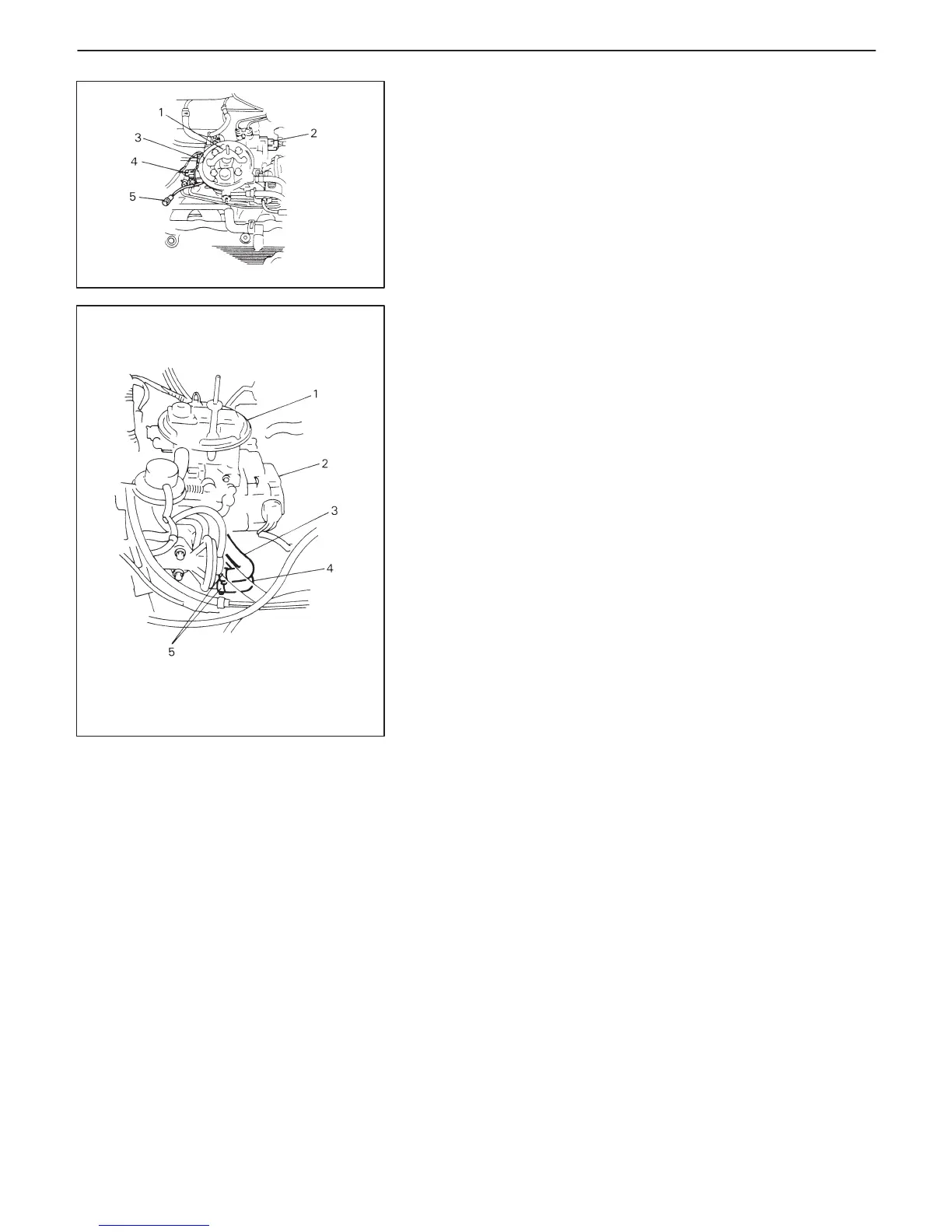

1. Throttle body
1. Throttle body
2. ISC actuator
5. Clamp
6A-6 ENGINE MECHANICAL (G10, 1-CAM 6-VALVES ENGINE)
4) Remove air cleaner assembly.
5) Disconnect the following electric lead wires:
D EGR valve
D ISC actuator (2)
D Ground wires from intake manifold
D Fuel injector (4)
D TP sensor (3)
D EFE heater (5)
D Engine coolant temp. gauge
6) Disconnect fuel return (4) and feed hoses (3) from fuel pipes.
7) Disconnect coolant hoses from intake manifold.
8) Disconnect the following vacuum hoses.
D Canister purge hose from intake manifold.
D EGR pressure transducer hoses from EGR valve.
D EGR valve hose from EGR valve.
D Pressure sensor hose from intake manifold.
D Brake booster hose from intake manifold.
9) Disconnect breather hose from PCV valve.
10) Disconnect accelerator cable from throttle body.
11) Disconnect other connected to throttle body and intake man-
ifold, if any.
12) Remove intake manifold with throttle body from cylinder head.
13) Remove throttle body from intake manifold.
