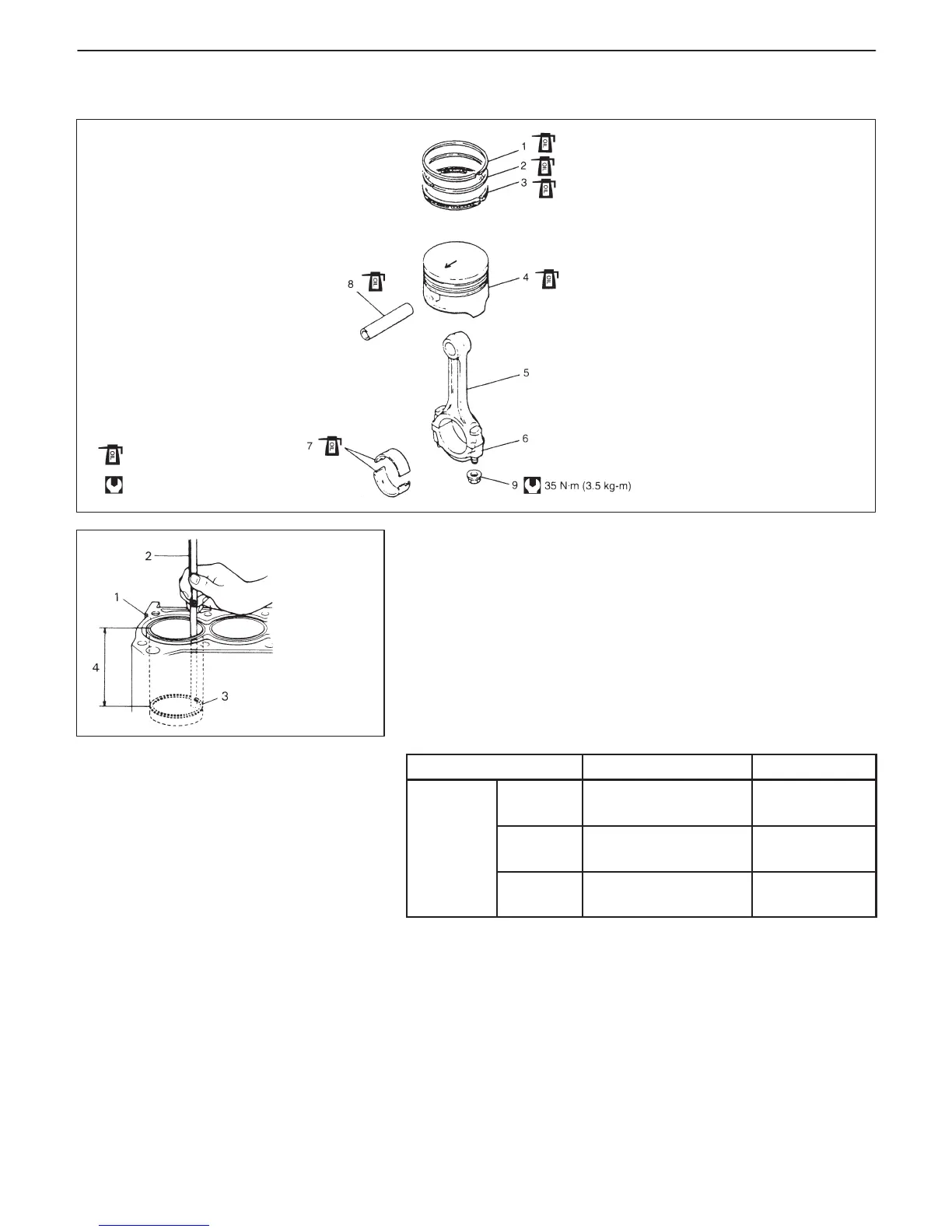

1. Cylinder block
2. Feeler gauge
3. Piston ring
4. 120 mm (4.72 in.)
1. Top ring
2. 2nd ring
3. Oil ring
4. Piston
5. Connecting rod
6. Connecting rod bearing cap
7. Connecting rod bearing
8. Piston pin
9. Connecting rod nut
: Tightening Torque
: Apply engine oil to sliding
: surfaces of each part.
ENGINE MECHANICAL (G10, 1-CAM 6-VALVES ENGINE) 6A-23
PISTONS, PISTON RINGS, CONNECTING RODS AND CYLINDERS
INSPECTION
Piston Rings
To measure end gap, insert piston ring into cylinder bore as shown
in figure and then measure gap by using thickness gauge.
If measured gap is out of specification, replace ring.
NOTE:
Decarbon and clean the top of cylinder bore before inserting
piston ring.
Item
Standard Limit
Piston
Top ring
0.15 – 0.30 mm
(0.0059 – 0.0118 in.)
0.7 mm
(0.0275 in.)
Piston
ring end
ga
p
2nd ring
0.20 – 0.35 mm
(0.0079 – 0.0138 in.)
0.7 mm
(0.0275 in.)
ga
Oil ring
0.20 – 0.60 mm
(0.0079 – 0.0236 in.)
1.8 mm
(0.0708 in.)
