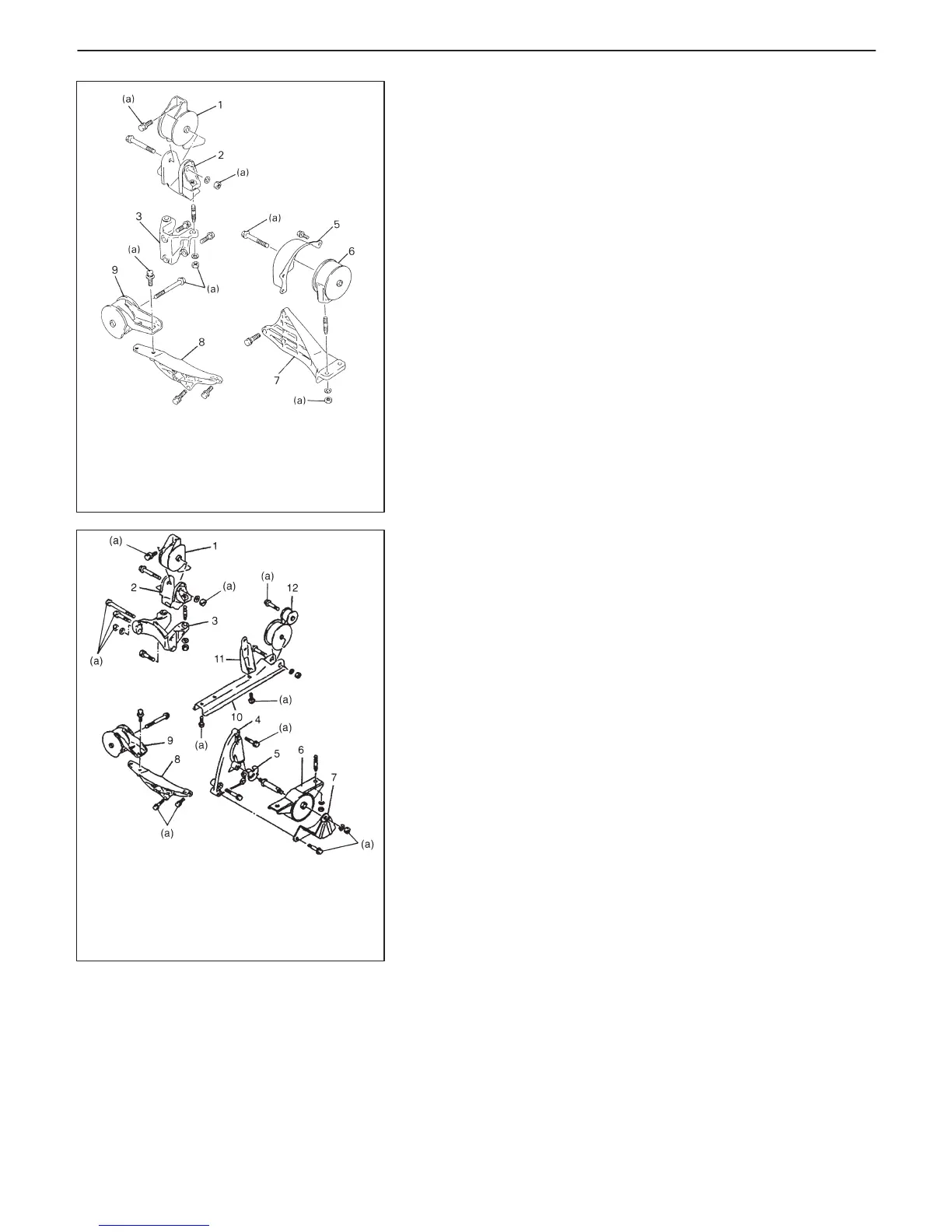

1. Rear mounting
2. Rear mounting No.2
bracket
3. Rear mounting No.1
bracket
4. Rear mounting
bracket
5. Left mounting
body bracket
6. Left mounting
7. Left mounting bracket
8. Right mounting bracket
9. Right mounting
For M/ T model
For A/ T model
1. Rear mounting
2. Rear mounting No.2
bracket
3. Rear mounting No.1
bracket
4. Left mounting No.1
bracket
5. Stopper
6. Left mounting
7. Left mounting No.2
bracket
8. Right mounting bracket
9. Right mounting
10. Torque rod bracket
11. Stiffener
12. Torque rod
6A-26 ENGINE MECHANICAL (G10, 1-CAM 6-VALVES ENGINE)
INSTALLATION
1) Lift engine with transmission into engine compartment, but do
not remove lifting device.
2) Install right side engine mounting to its bracket.
3) Install left side engine mounting and its bracket.
4) Install rear mounting to body.
5) Tighten bolts and nuts of all parts installed in above steps 2),
3) and 4) to specified torque.
Tightening Torque
(a): 55 N
.
m (5.5 kg-m, 40.0 lb-ft)
Tightening Torque
(a): 55 N
.
m (5.5 kg-m, 40.0 lb-ft)
6) Remove lifting device.
7) Reverse removal procedures for installation of remainder.
D Push in each drive shaft joint fully so that snap ring engages
with differential gear or center bearing support.
Use care not to damage oil seal lip when inserting.
D Clamp electric wires securely.
8) Adjust clutch pedal free travel referring to Section 7C. (For M/T
model)
Adjust gear select cable and oil pressure control cable referring
to Section 7B. (For A/T model)
9) Adjust gear shift control lever referring to Section 7A. (For M/T
model)
10) Refill transmission with gear oil. (A/T fluid for A/T model) refer-
ring to Section 0B.
11) Refill engine with engine oil referring to Section 0B.
12) Refill cooling system referring to Section 6B.
13) Adjust A/C compressor drive belt referring to Section 0B. (if
equipped)
14) Upon completion of installation, verify that there is no fuel leak-
age, coolant leakage, transmission oil leakage or exhaust gas
leakage at each connection.
15) Adjust accelerator cable play referring to Section 6E.
