ENGINE MECHANICAL (G13B, 1-CAM 16-VALVES ENGINE) 6A1-15

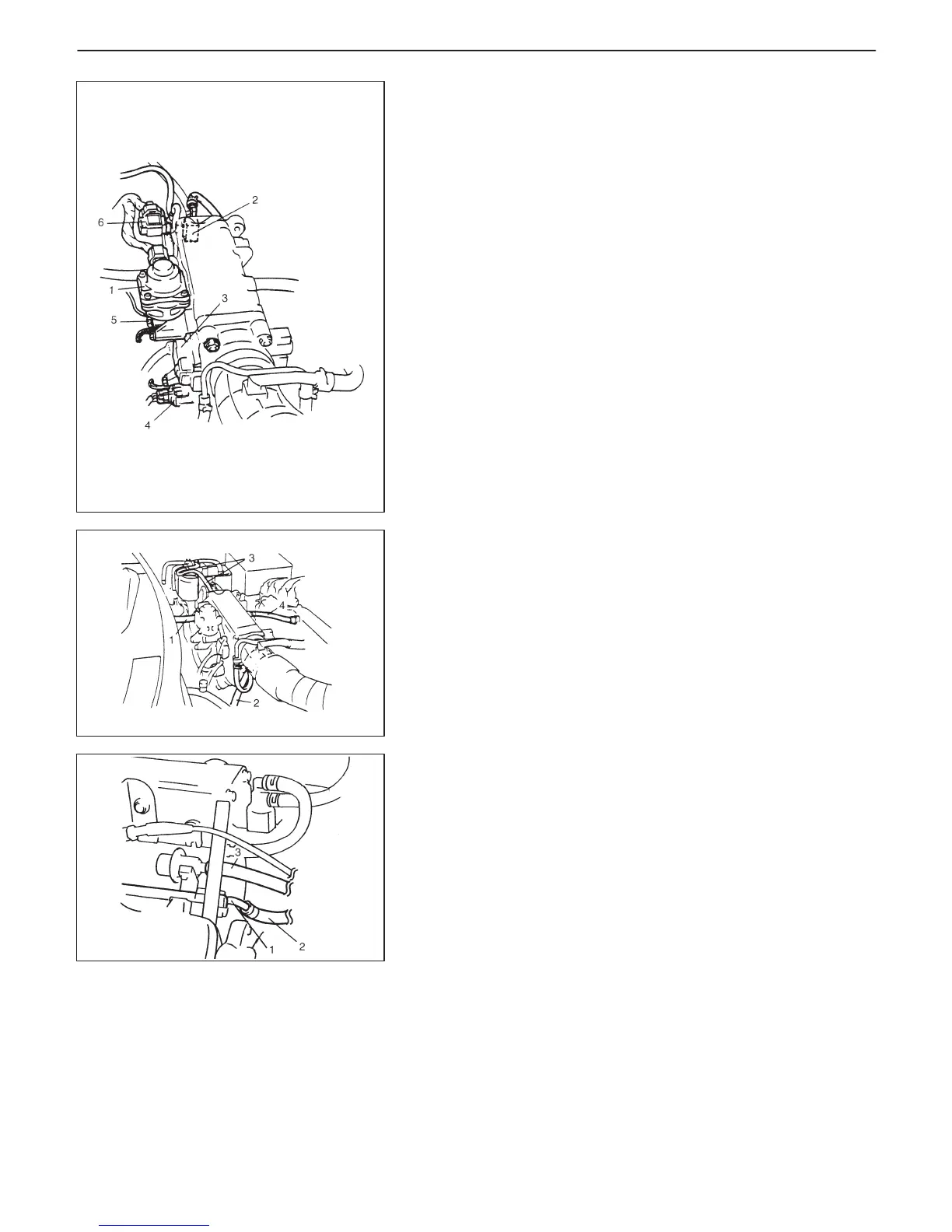

7) Disconnect the following electric lead wires and release clamp:
D Ground wires (5) from intake manifold
D TP sensor (3)
D IAC valve (4)
D Fuel injectors
D EVAP canister purge valve (2)
D MAP sensor (6)
D EGR valve (1)
8) Disconnect the following hoses:
D Brake booster hose (1) from intake manifold
D Canister purge hose (3) from EVAP canister purge valve
D Engine cooling water (coolant) hose (2) from IAC valve
D PCV hose (4)
D Breather hose from cylinder head
9) Disconnect fuel feed hose (2) from pipe (1), and disconnect fuel
return hose (3) from fuel pressure regulator.
