6A1-32 ENGINE MECHANICAL (G13B, 1-CAM 16-VALVES ENGINE)

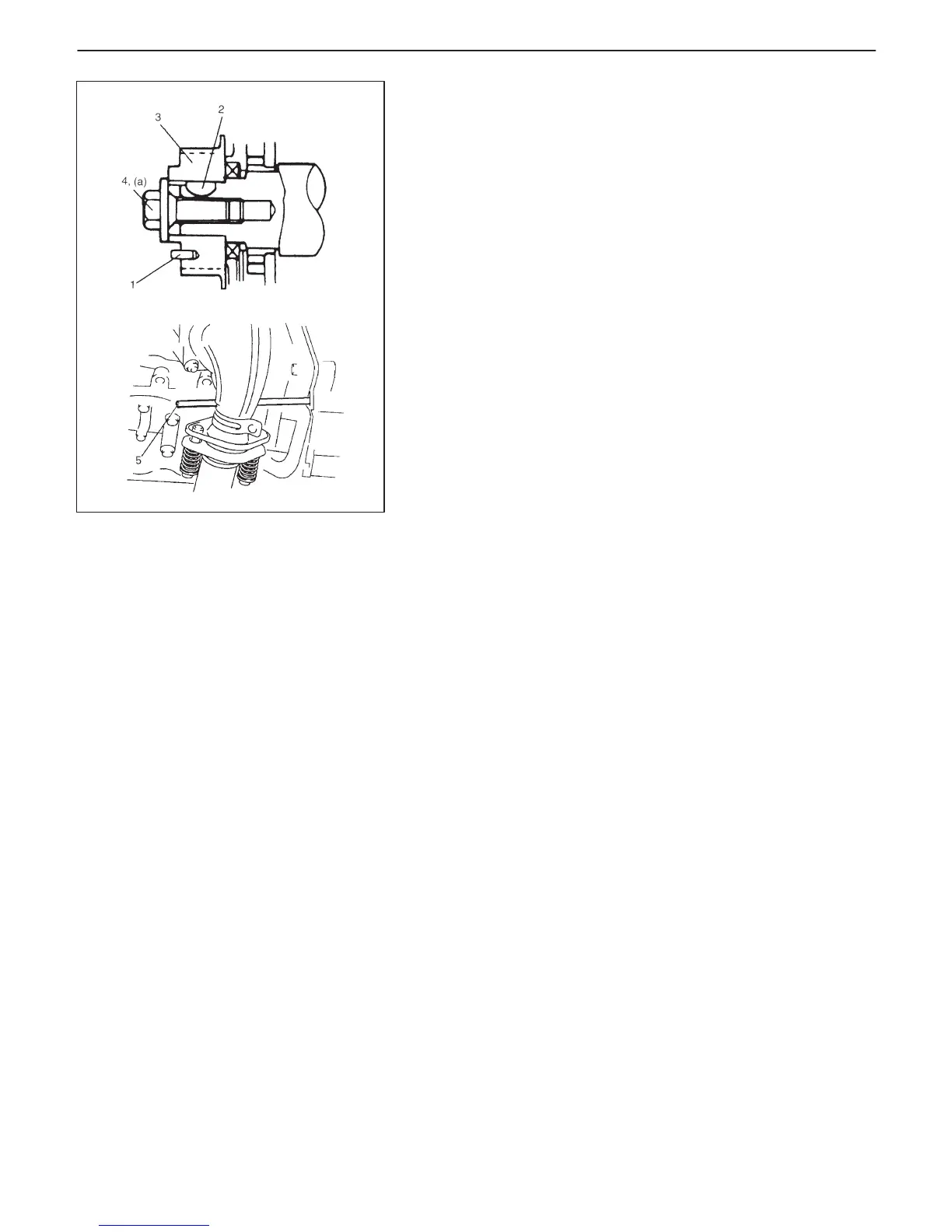

5) Install timing pulley key (2) and crank timing belt pulley (3) and
crankshaft pulley pin (1). Refer to figure for proper installation
of these parts.
With crankshaft locked using flat end rod or the like (5), tighten
crank timing belt pulley bolt (4) to specified torque.
Tightening Torque
(a): 130 N
.
m (13.0 kg-m, 94.0 lb-ft)
6) Install timing belt, tensioner, oil pump strainer, oil pan and other
parts as previously outlined.
7) Check to ensure that all removed parts are back in place. Rein-
stall any necessary parts which have not been reinstalled.
8) Adjust water pump drive belt tension referring to Section 6B.
9) Adjust power steering pump belt tension or A/C compressor
belt tension, if equipped.
Refer to Section 0B.
10) Refill engine with engine oil referring to “ENGINE OIL
CHANGE” in Section 0B.
11) Connect negative cable at battery.
12) After completing installation, check oil pressure by running en-
gine.
