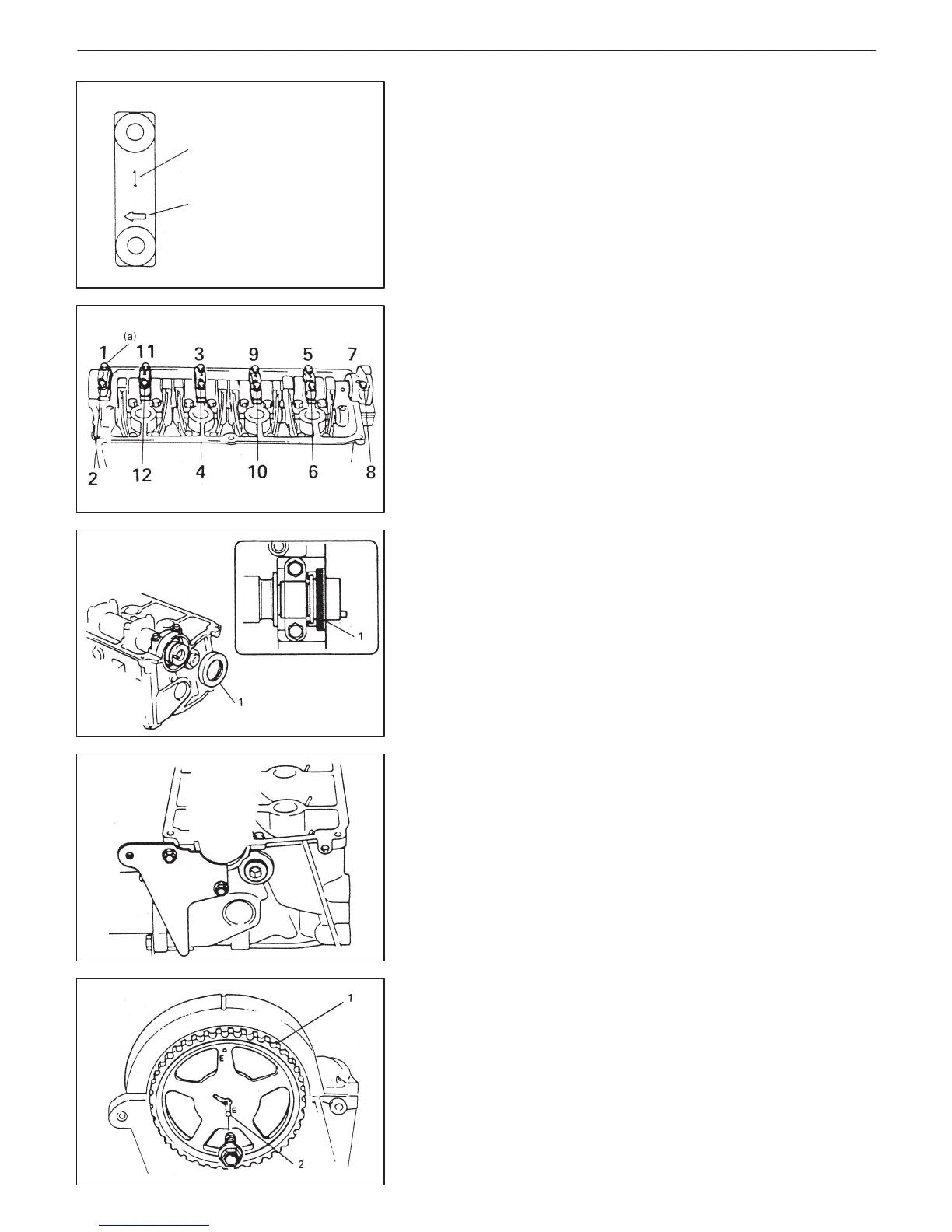

ENGINE MECHANICAL (G13B, 1-CAM 16-VALVES ENGINE) 6A1-39
D Indicates position from timing
belt side. Install in numerical
order starting from timing belt
side.
D Indicates direction of housing.
Install so that arrow is directed
toward timing belt side.
D Embossed marks are provided on each camshaft housing, in-
dicating position and direction for installation.
Install housing as indicated by these marks.
D As camshaft housing No. 1 retains camshaft in proper position
as to thrust direction, make sure to first fit No. 1 housing to No.
1 journal of camshaft securely.
D After applying engine oil to housing bolts, tighten them tempo-
rarily first. Then tighten them by the following sequence as in-
dicated in figure.
Tighten a little at a time and evenly among bolts and repeat
tightening sequence three to four times before they are tight-
ened to specified torque.
Tightening Torque
(a): 11 N
.
m (1.1 kg-m, 8.0 lb-ft)
7) Install camshaft oil seal (1).
After applying engine oil to oil seal lip, press-fit camshaft oil seal
till oil seal surface becomes flush with housing surface.
8) Install timing belt inside cover.
9) Install camshaft timing belt pulley (1) to camshaft while fitting pin
(2) on camshaft into slot at “E” mark.
