A: Valve spring retainer side
B: Valve spring seat side
ENGINE MECHANICAL (G13B, 1-CAM 16-VALVES ENGINE) 6A1-51

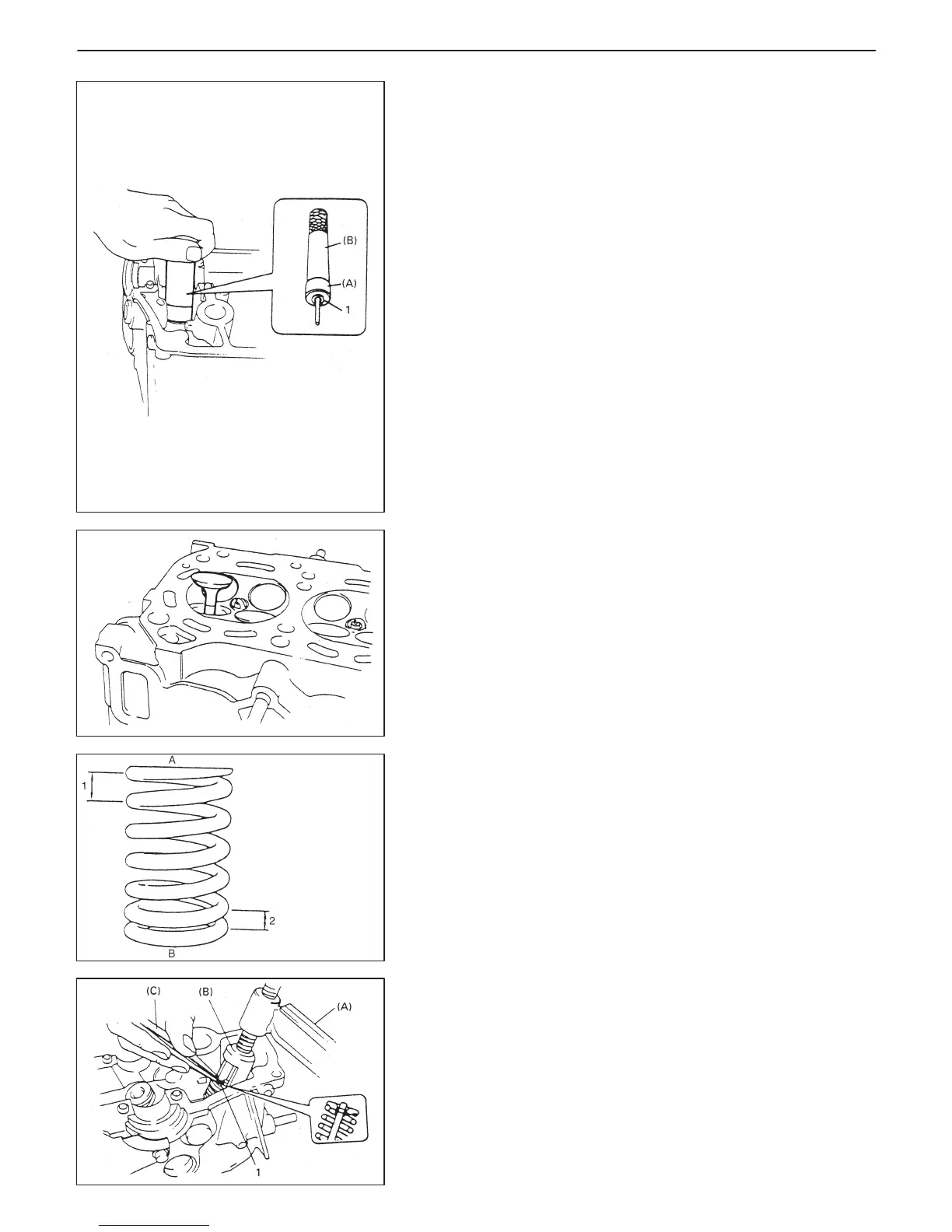

5) Install new valve stem seal (1) to valve guide.
After applying engine oil to seal and spindle of special tool (Valve
guide installer handle), fit oil seal to spindle, and then install seal
to valve guide by pushing special tool by hand.
After installing, check to be sure that seal is properly fixed to
valve guide.
Special Tool
(A): 09917-98221
(B): 09916-58210
NOTE:
D Do not reuse seal once disassembled. Be sure to install
new seal.
D When installing, never tap or hit special tool with a ham-
mer or else. Install seal to guide only by pushing special
tool by hand. Tapping or hitting special tool may cause
damage to seal.
6) Install valve to valve guide.
Before installing valve to valve guide, apply engine oil to stem
seal, valve guide bore, and valve stem.
7) Install valve spring and spring retainer.
Each valve spring has top end (large-pitch (1) end) and bottom
end (small-pitch (2) end). Be sure to position spring in place with
its bottom end (small-pitch end) facing the bottom (valve spring
seat side).
8) Using special tools (Valve lifter), compress valve spring and fit
two valve cotters (1) into groove in valve stem.
Special Tool
(A): 09916-14510
(B): 09916-14910
(C): 09916-84511
To Next Page
