ENGINE MECHANICAL (G13B, 1-CAM 16-V
AL
VES ENGINE)
6A1-55
DISASSEMBL
Y
1)
Using piston ring expander
, remove two compression rings (T
op
and 2nd) and oil ring from piston.
2)
Remove piston pin from connecting rod.
D

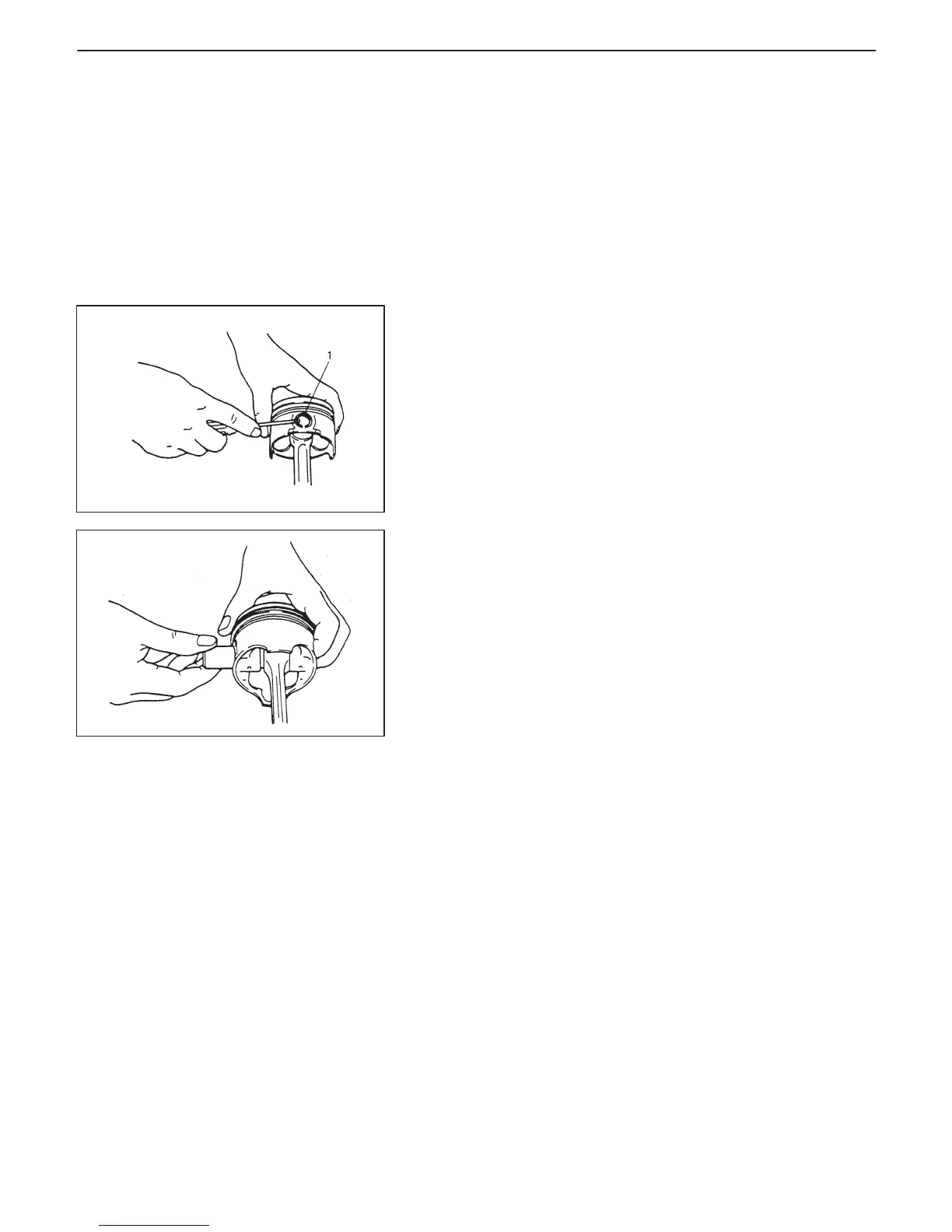

Ease out piston pin circlips (1), as shown.
D
Force piston pin out.
CLEANING
Clean carbon from piston head and ring grooves, using a suitable
tool.
