6E2-26 ENGINE AND EMISSION CONTROL SYSTEM (SFI FOR G13)
Installation
For installation, reverse removal procedure and note following pre-
cautions.

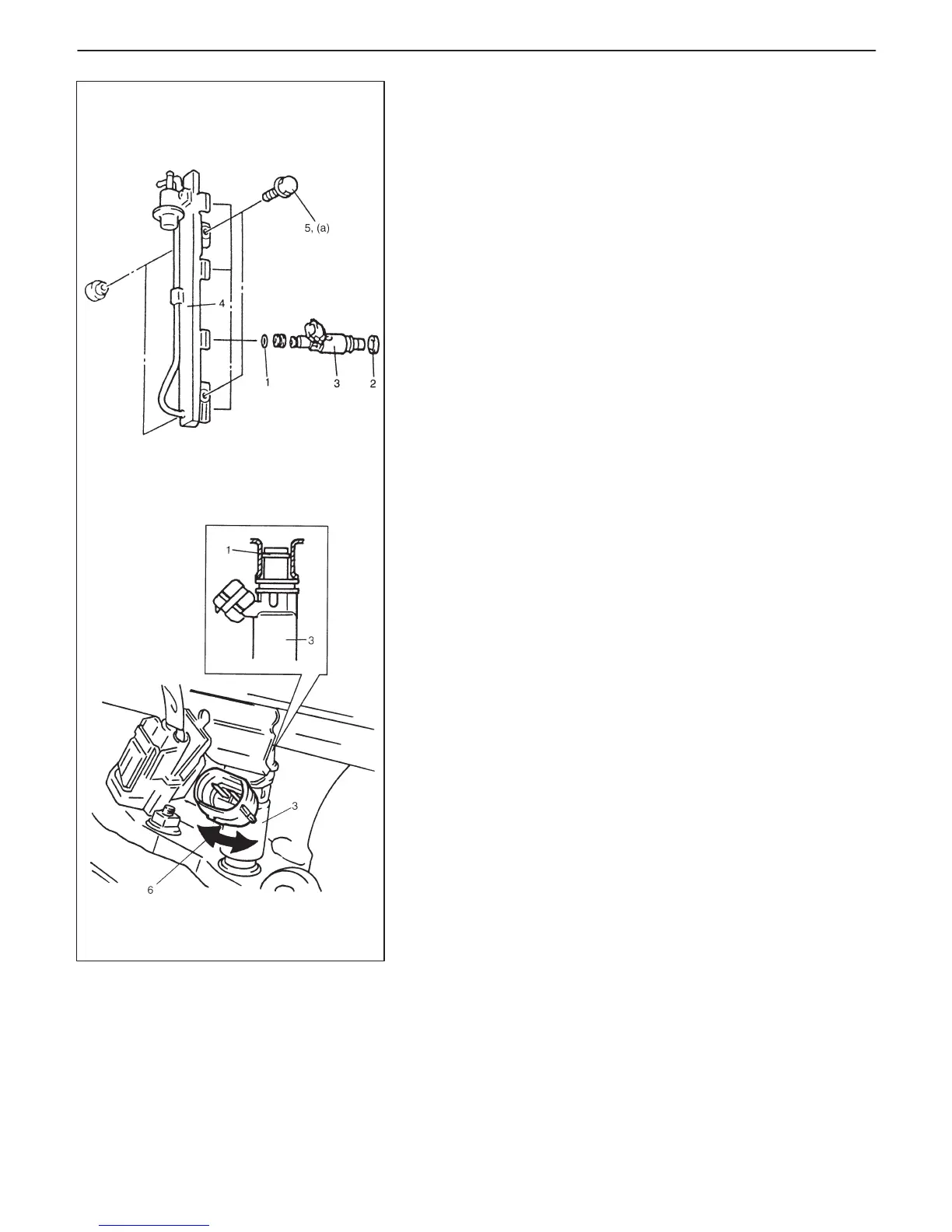

D Replace injector O-ring (1) with new one using care not to dam-
age it.
D Check if cushion (2) is scored or damaged. If it is, replace with
new one.
D Apply thin coat of fuel to O-rings (1) and then install injectors (3)
into delivery pipe (4) and intake manifold.
Make sure that injectors (3) rotate smoothly (6). If not, probable
cause is incorrect installation of O-ring (1). Replace O-ring (1)
with new one.
D Tighten delivery pipe bolts (5) and make sure that injectors (3) ro-
tate smoothly (6).
Tightening Torque
(a): 25 N
.
m (2.5 kg-m, 18.0 lb-ft)
D After installation, with engine OFF and ignition switch ON, check
for fuel leaks around fuel line connection.
