“a”

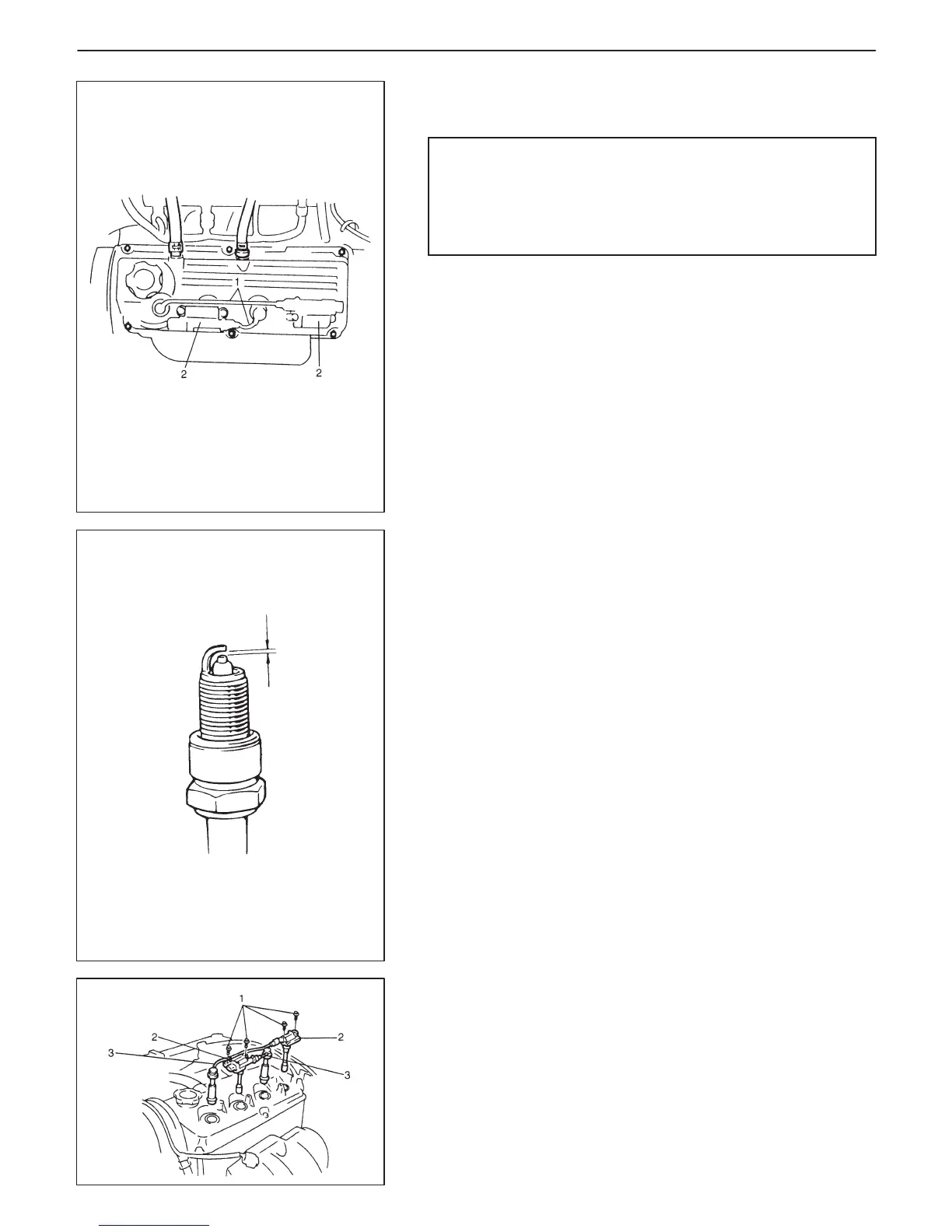

6F1-6 IGNITION SYSTEM (SFI FOR G13)
5) Install high-tension cords (1) to spark plugs and ignition coil as-
semblies (2) while gripping each cap.
CAUTION:
D Never attempt to use metal conductor high-tension
cords as replacing parts.
D Insert each cap portion fully when installing high-ten-
sion cords.
SPARK PLUGS
1) Pull out high-tension cords by gripping their caps and then re-
move ignition coil assemblies referring to IGNITION COIL AS-
SEMBLY in this section.
2) Remove spark plugs.
3) Inspect them for:
D Electrode wear
D Carbon deposits
D Insulator damage
4) If any abnormality is found, adjust air gap, clean with spark plug
cleaner or replace them with specified new plugs.
Spark plug air gap “a” : 1.0 – 1.1 mm ( 0.040 – 0.043 in.)
Spark plug type : NGK BKR6E-11
: DENSO K20PR-U11
5) Install spark plugs and torque them to specification.
Tightening Torque for spark plug
28 N
.
m (2.8 kg-m, 20.0 lb-ft)
6) Install ignition coil assemblies referring to IGNITION COIL AS-
SEMBLY in this section.
7) Install high-tension cords securely by gripping their caps.
IGNITION COIL ASSEMBLY
(INCLUDING IGNITOR)
Inspection
1) Disconnect negative cable at battery.
2) Disconnect ignition coil coupler.
3) Disconnect high-tension cord (3) from ignition coil assembly (2).
4) Remove ignition coil bolts (1) and then pull out ignition coil as-
sembly.
To Next Page
