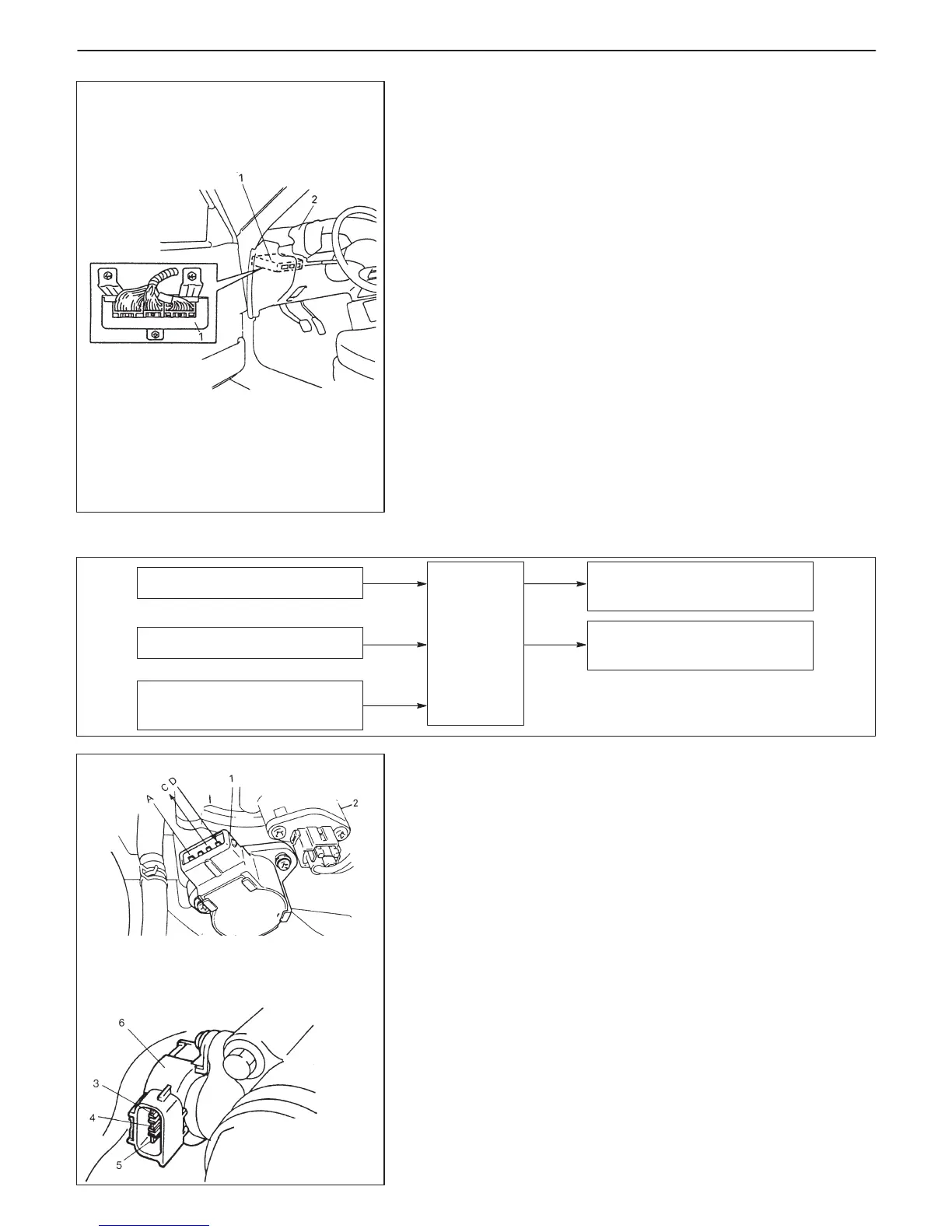

1. PCM
2. Instrument panel
TP sensor
Transmission range sensor
Output shaft speed sensor
(A/T VSS)
Shift solenoid-B
(2nd brake solenoid valve)
Shift solenoid-A
(Direct clutch solenoid valve)
PCM
1. Throttle position sensor
2. Throttle body
A: Ground
3. Ground terminal
4. Reference voltage
terminal
5. Output voltage terminal
6. TP sensor
C: Output voltage
(opening angle signal)
D: Power supply from ECM
(reference voltage)
[G10 engine model]
[G13 engine model]
AUTOMATIC TRANSMISSION (3 A / T) (VEHICLE WITH WU-TWC) 7B-7
POWERTRAIN CONTROL MODULE (PCM)
The powertrain control module controls the shift solenoid B (2nd
brake solenoid valve) and the shift solenoid A (direct clutch sole-
noid valve) by sending electric signals to them so as to attain auto-
matic gear shift between the 1st and 2nd gears, and the 2nd and
3rd gears. Equipped as PCM sensed parameters are the throttle
position sensor, transmission range switch and vehicle speed sen-
sor. These switch and sensors sense the throttle valve opening, se-
lector lever’s position and vehicle speed, and send those signals to
the powertrain control module. Then, the powertrain control module
opens and closes valves of the above solenoids according to these
signals. The powertrain control module is installed to the underside
of the instrument panel at the driver’s seat side.
GEAR SHIFT CONTROL SYSTEM
THROTTLE POSITION SENSOR (TP sensor)
The throttle position sensor consisting of a potentiometer is con-
nected to the throttle valve shaft.
Throttle valve opening signal (output voltage) is transmitted from
throttle position sensor to PCM as voltage signal. PCM uses it as
one of the signals to control transmission gear shift.
