ENGINE GENERAL INFORMATION AND DIAGNOSIS (TBI FOR G10) 6-47

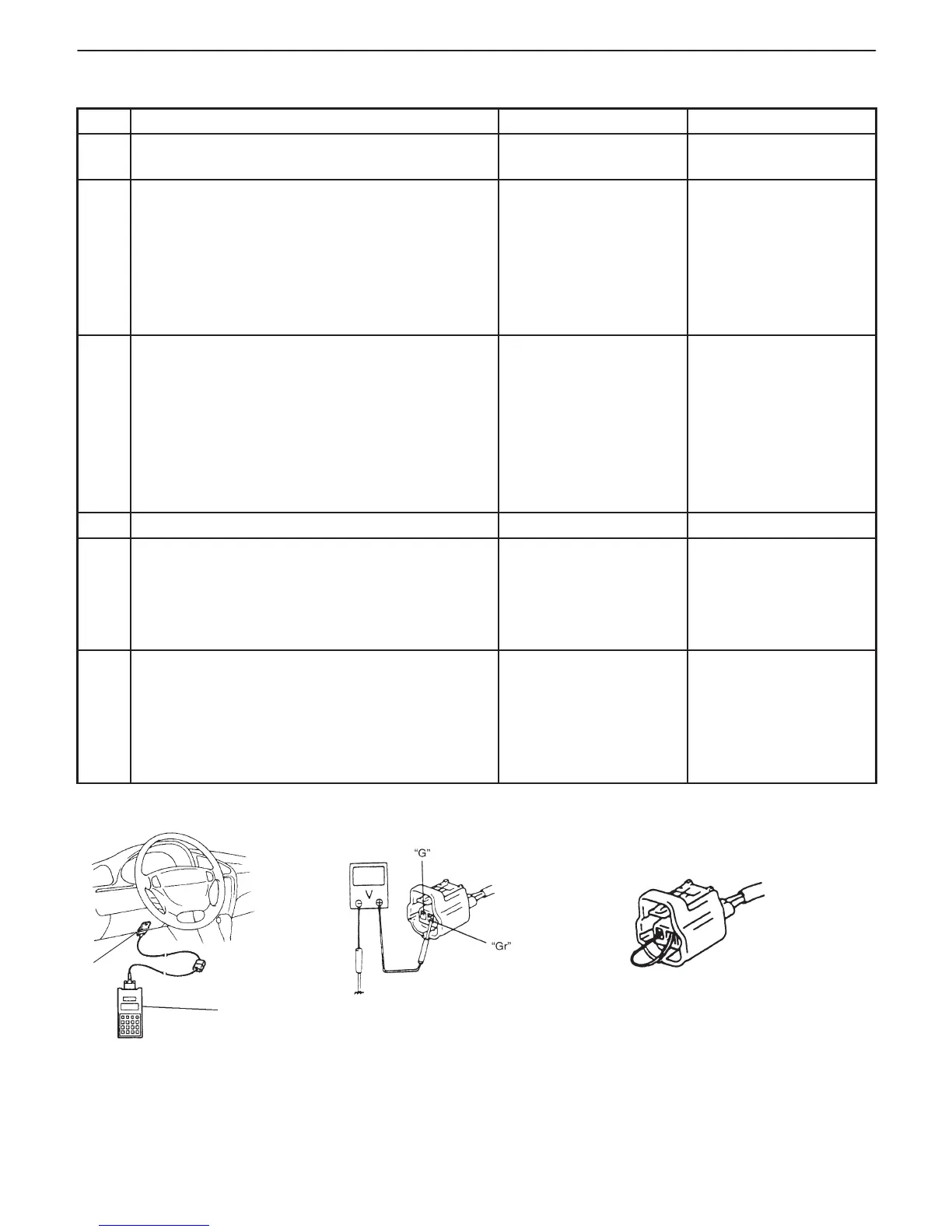

Fig. 1 for Step 2 Fig. 2 for Step 3 Fig. 3 for Step 4
Scan tool
DLC
INSPECTION
STEP ACTION YES NO
1 Was “ENGINE DIAG. FLOW TABLE” performed? Go to Step 2. Go to “ENGINE DIAG.
FLOW TABLE”.
2 Check IAT Sensor and Its Circuit.
1) Connect scan tool to DLC with ignition switch
OFF.
2) Turn ignition switch ON.
3) Check intake air temp. displayed on scan tool.
See Fig. 1.
Is –40_C (–40_F) or 119_C (246_F) indicated?
Go to Step 3. Intermittent trouble.
Check for intermittent
referring to “Intermittent
and Poor Connection”
in Section 0A.
3 Check Wire Harness.
1) Disconnect IAT sensor connector with ignition
switch OFF.
2) Check for proper connection to IAT sensor at
“Gr” and “G” wire terminals.
3) If OK, then with ignition switch ON, is voltage
applied to “Gr” wire terminal about 4 – 6 V? See
Fig. 2.
Go to Step 5. “Gr” wire open or
shorted to power, or
poor C01-14
connection.
If wire and connection
are OK, substitute a
known-good ECM
(PCM) and recheck.
4 Does scan tool indicate –40_C (–40_F) at Step 2. Go to Step 6. Go to Step 5.
5 Check Wire Harness.
1) Check intake air temp. displayed on scan tool
with ignition switch ON.
Is –40_C (–40_F) indicated?
Replace IAT sensor. “Gr” wire shorted to
ground.
If wire is OK, substitute
a known-good ECM
(PCM) and recheck.
6 Check Wire Harness.
1) Using service wire, connect IAT sensor
connector terminals.
2) Check intake air temp. displayed on scan tool
with ignition switch ON. See Fig. 3.
Is 119_C (246_F) indicated?
Replace IAT sensor. “Gr” wire open or poor
C01-9 connection.
If wire and connection
are OK, substitute a
known-good ECM
(PCM) and recheck.
