4-60 FI SYSTEM DIAGNOSIS

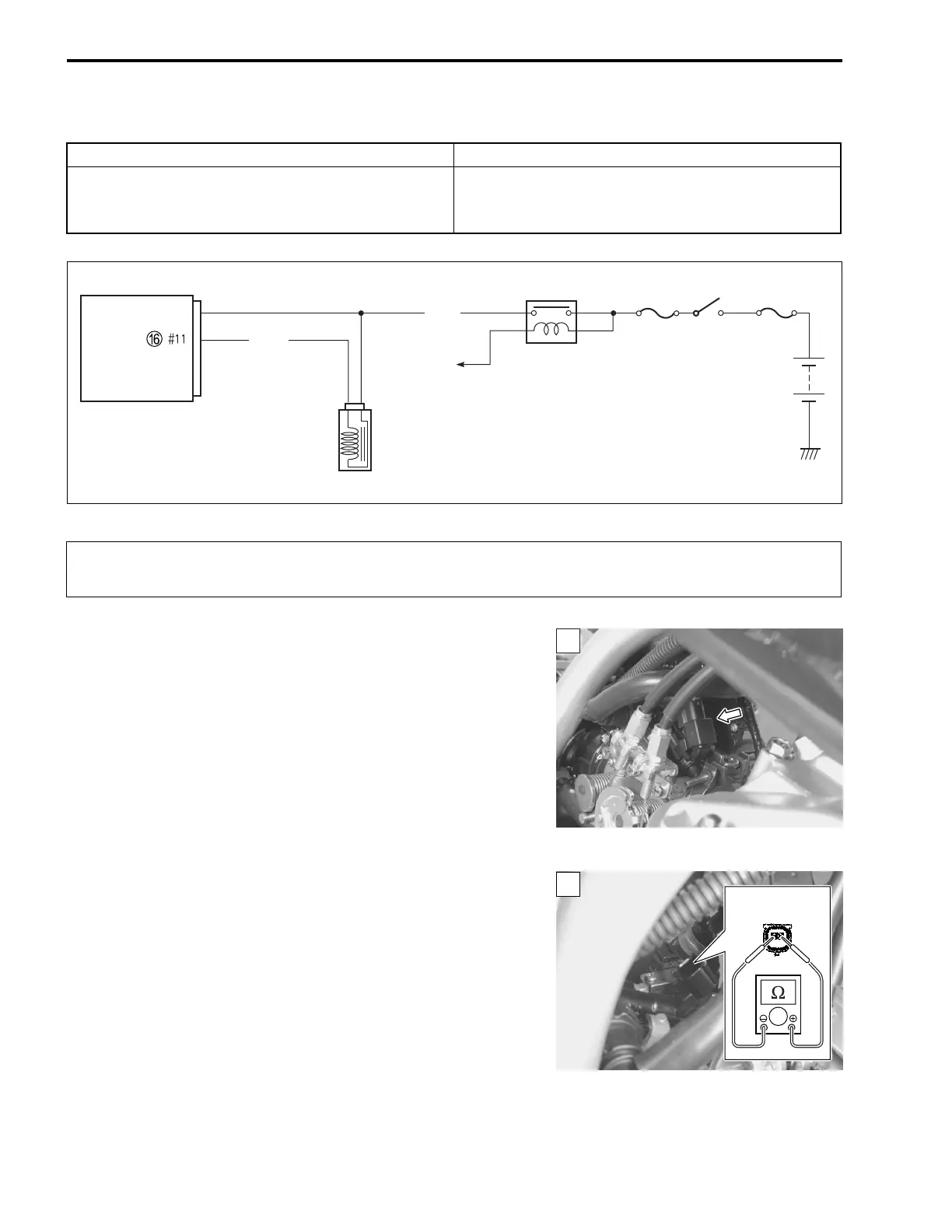

“32” (P0201) FUEL INJECTOR CIRCUIT MALFUNCTION

INSPECTION
NOTE:
After repairing the trouble, clear the DTC using SDS tool.
(4-24)
Step 1
1) Turn the ignition switch OFF.
2) Lift up the fuel tank by removing the fuel tank mounting bolt.
(5-3)
3) Check the fuel injector coupler for loose or poor contacts.
If OK, then measure the fuel injector resistance.
4) Disconnect the fuel injector coupler and measure the resis-
tance between terminals.

Fuel injector resistance: Approx. 10.5 Ω at 20 °C (68 °F)
(Terminal – Terminal)
DETECTED CONDITION POSSIBLE CAUSE
Fuel injector signal is interrupted by 4 times or more
continuously although ignition signal is supplied from
the ECM.
• Injector circuit open or short
• Injector malfunction
• ECM malfunction
ECM
Fuel injector
Side-stand relay
Ignition switch
O/W
Lg/W
To side-stand
switch
When using the multi circuit tester, do not strongly touch the terminal of the ECM coupler with
a needle-point probe to prevent the terminal damage or terminal bend.
1
1

Suzuki TU250X Specifications

General

Displacement	249 cc
Bore x Stroke	72.0 mm x 61.2 mm
Compression Ratio	9.2:1
Ignition	Electronic ignition (transistorized)
Starter	Electric
Transmission	5-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Swingarm type, coil spring, oil damped
Rear Brakes	Drum brake
Front Tire	90/90-18 M/C 51S, tube type
Rear Tire	110/90-18 M/C 61S, tube type
Overall Length	2070 mm (81.5 in.)
Overall Width	750 mm (29.5 in.)
Overall Height	1075 mm (42.3 in.)
Seat Height	770 mm (30.3 in.)
Ground Clearance	165 mm (6.5 in.)
Wheelbase	1375 mm (54.1 in.)
Curb Weight	148 kg (326 lbs.)
Engine Type	4-stroke, single cylinder, SOHC
Front Brakes	Single disc
Fuel Capacity	12 L (3.2 US gal.)
