Suzuki TU250X User Manual

5-2 FUEL SYSTEM AND THROTTLE BODY
FUEL DELIVERY SYSTEM
The fuel delivery system consists of the fuel tank, fuel pump, fuel mesh filter, fuel feed hose, fuel delivery
pipe (including fuel injector) and fuel pressure regulator. The fuel in the fuel tank is pumped up by the fuel
pump and pressurized fuel flows into the injector installed in the fuel delivery pipe. Fuel pressure is regulated
by the fuel pressure regulator. As the fuel pressure applied to the fuel injector (the fuel pressure in the fuel
delivery pipe) is always kept at absolute fuel pressure of 294 kPa (2.94 kgf/cm
2
, 41.8 psi), the fuel is injected
into the throttle body in conic dispersion when the injector opens according to the injection signal from the
ECM.
The fuel relieved by the fuel pressure regulator flows back to the fuel tank.

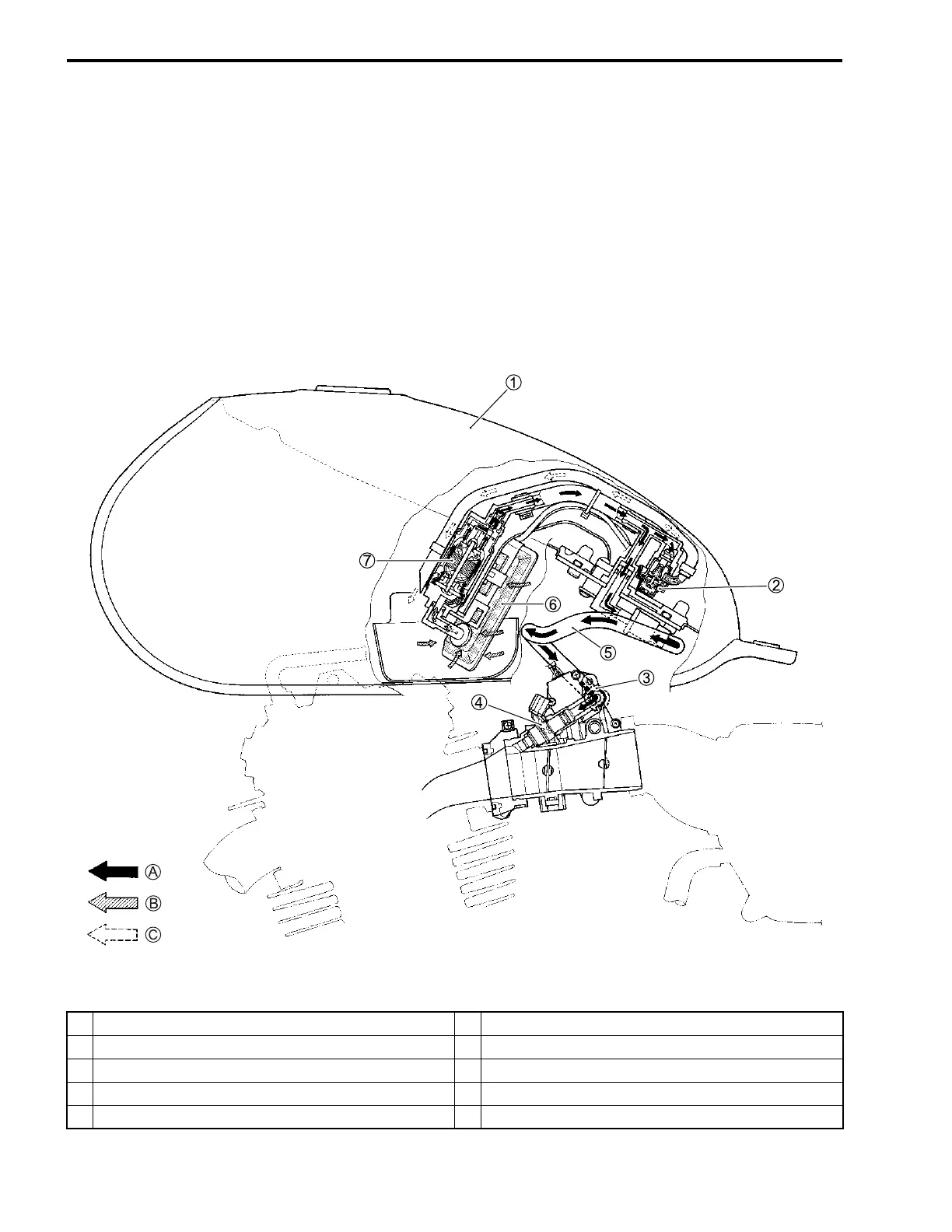

1 Fuel tank 6 Fuel mesh filter
2 Fuel pressure regulator 7 Fuel pump
3 Fuel delivery pipe A Pressurized fuel
4 Fuel injector B Before-pressurized fuel
5 Fuel feed hose C Relieved fuel

Suzuki TU250X Specifications

General

Displacement	249 cc
Bore x Stroke	72.0 mm x 61.2 mm
Compression Ratio	9.2:1
Ignition	Electronic ignition (transistorized)
Starter	Electric
Transmission	5-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Swingarm type, coil spring, oil damped
Rear Brakes	Drum brake
Front Tire	90/90-18 M/C 51S, tube type
Rear Tire	110/90-18 M/C 61S, tube type
Overall Length	2070 mm (81.5 in.)
Overall Width	750 mm (29.5 in.)
Overall Height	1075 mm (42.3 in.)
Seat Height	770 mm (30.3 in.)
Ground Clearance	165 mm (6.5 in.)
Wheelbase	1375 mm (54.1 in.)
Curb Weight	148 kg (326 lbs.)
Engine Type	4-stroke, single cylinder, SOHC
Front Brakes	Single disc
Fuel Capacity	12 L (3.2 US gal.)
