8-48 CHASSIS
INSPECTION AND DISASSEMBLY
WHEEL (2-19)
TIRE (8-59)
SPOKE NIPPLE (2-20)

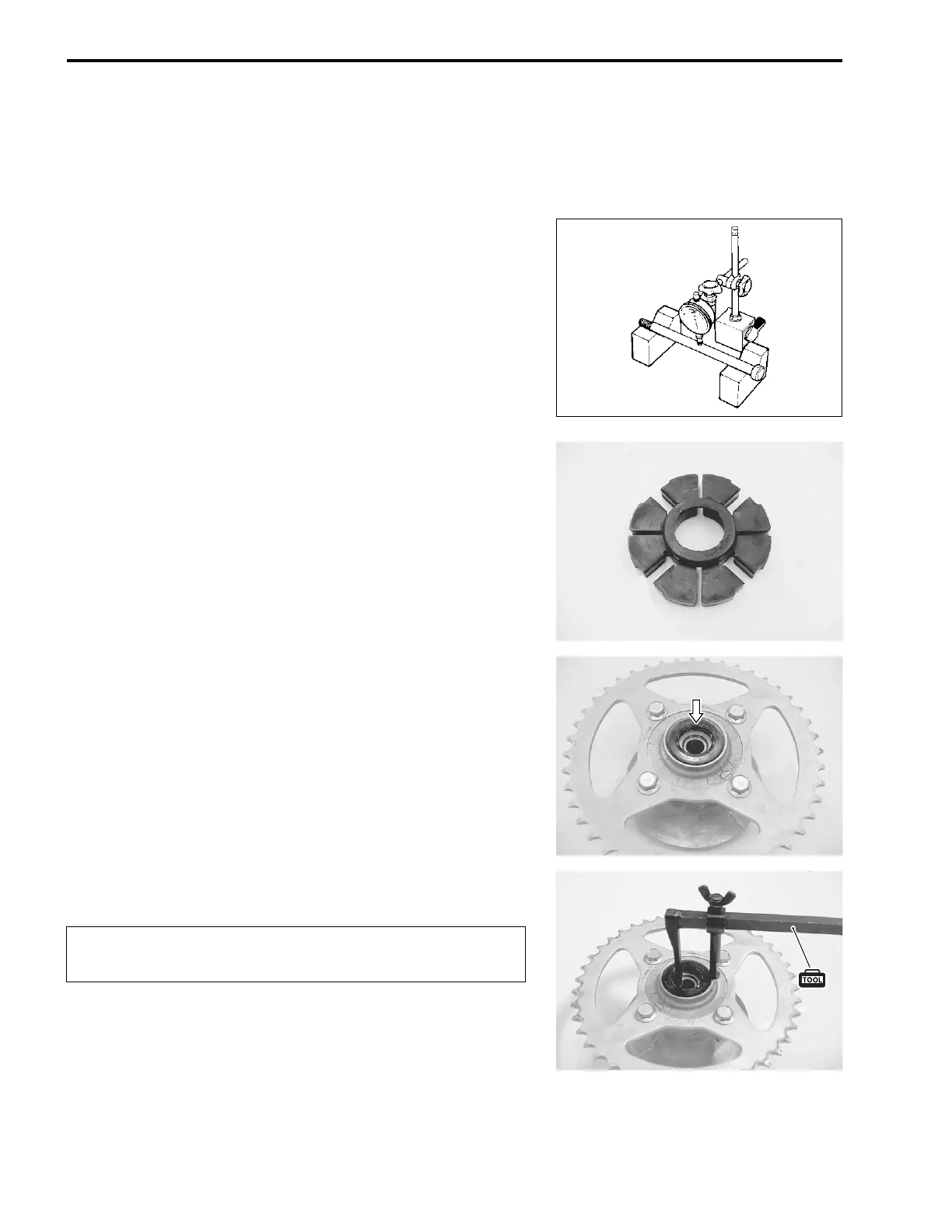

REAR AXLE
Measure the rear axle runout using the dial gauge.
If the runout exceeds the service limit, replace the rear axle with
a new one.
 Axle shaft runout
Service Limit: 0.25 mm (0.010 in)
 09900-20607: Dial gauge
09900-20701: Dial gauge chuck
09900-21304: V blocks
WHEEL DAMPER
Inspect the dampers for wear or damage.
Replace the damper if there is anything unusual.
DUST SEAL
Insect the dust seal lip for wear or damage.
If any defects are found, replace it with a new one.
• Remove the dust seal with the special tool.

 09913-50121: Oil seal remover
The removed dust seal must be replaced with a new
one.

Suzuki TU250X Specifications

General

Displacement	249 cc
Bore x Stroke	72.0 mm x 61.2 mm
Compression Ratio	9.2:1
Ignition	Electronic ignition (transistorized)
Starter	Electric
Transmission	5-speed constant mesh
Final Drive	Chain
Front Suspension	Telescopic, coil spring, oil damped
Rear Suspension	Swingarm type, coil spring, oil damped
Rear Brakes	Drum brake
Front Tire	90/90-18 M/C 51S, tube type
Rear Tire	110/90-18 M/C 61S, tube type
Overall Length	2070 mm (81.5 in.)
Overall Width	750 mm (29.5 in.)
Overall Height	1075 mm (42.3 in.)
Seat Height	770 mm (30.3 in.)
Ground Clearance	165 mm (6.5 in.)
Wheelbase	1375 mm (54.1 in.)
Curb Weight	148 kg (326 lbs.)
Engine Type	4-stroke, single cylinder, SOHC
Front Brakes	Single disc
Fuel Capacity	12 L (3.2 US gal.)
